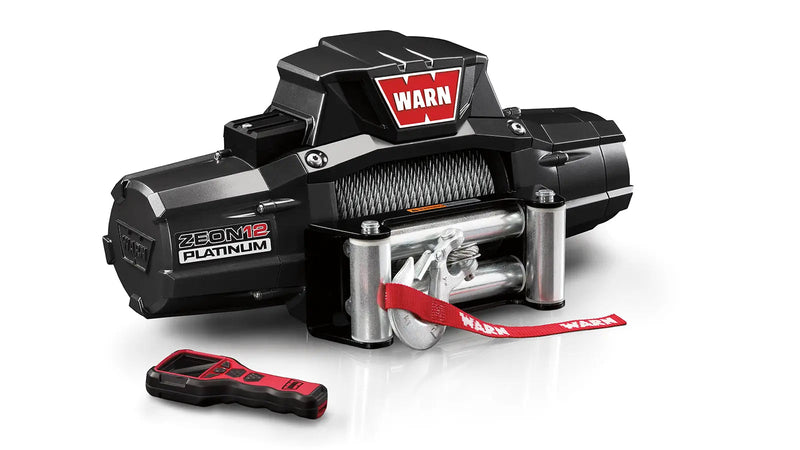

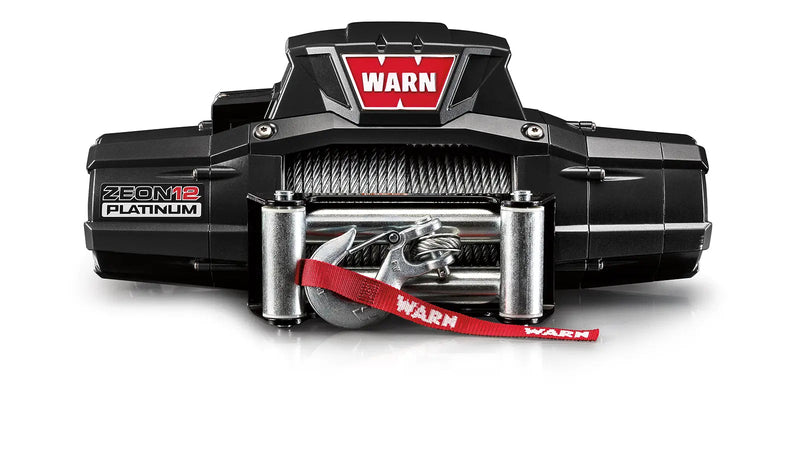

Warn ZEON Platinum 12 Self-Recovery Winch, 12,000 lb, 80' of 3/8" Steel Rope (92820)
Free gifts included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- 12,000 lb rated line pull: Warn rates the ZEON Platinum 12 at 12,000 lb; its high-speed motor and gear train give 33% faster line speed than the ZEON, Warn says.
- Advanced Wireless Remote: The ZEON Platinum 12 remote controls the clutch and power in/out and displays motor temperature and vehicle battery information.
- Two 16 amp accessory ports: Plug two 12V accessories into the ZEON Platinum 12 and switch them from the remote, with no drilling through the firewall.
- 80' of 3/8" steel rope: The ZEON Platinum 12 includes 80' of 3/8" steel rope and a roller fairlead.
- Large drum and cone brake: A large-diameter drum on the ZEON Platinum 12 reduces rope wear and sheds brake heat; Warn's cone brake holds the full rated load.
- Convertible control pack: The ZEON Platinum 12 control pack converts between upright and low-profile mounting, and the winch is rated IP68 waterproof.
Description & Fitment
The Warn ZEON Platinum 12 (92820) is a 12,000 lb, 12-volt winch from Warn's top ZEON Platinum line. Its Advanced Wireless Remote runs the clutch and power in/out and shows motor temperature and battery information, and two 16 amp accessory ports let it power and switch two 12V accessories. It comes with 80' of 3/8" steel rope and a roller fairlead, and Warn backs it with a limited lifetime mechanical and seven year electrical warranty. Vehicle fit comes from the Warn mount it bolts to, sold separately.
Fitment & Compatibility
Fit: universal winch. It needs a Warn winch mount, winch carrier or winch-ready bumper for your vehicle (sold separately).
Choose the right version: ZEON Platinum 10-S with Spydura synthetic rope at 10,000 lb (92815) or ZEON Platinum 12 with steel rope at 12,000 lb (92820).
Fits: Universal: bolts to a Warn winch mount, winch carrier or winch-ready bumper (sold separately)
About Warn
Warn Industries is a winch and recovery equipment maker headquartered in Clackamas, Oregon. Its range covers truck and SUV winches such as ZEON and the Heavyweight series, the AXON, VRX and R-Series powersports winches, the HUB Wireless Receiver and the portable Drill Winch.
Warn builds vehicle-specific steel bumpers in several lines: the Ascent and heavier Ascent HD front bumpers for full-size and mid-size pickups, the Elite series, and low-profile Semi-Hidden winch mounts. Warn says every one of its bumpers goes through field and pull testing for rigidity, and most are designed, tested and built in the USA.
Buying Warn from Prestige Truck. Warn asks for proof of purchase, a dated sales receipt showing the Warn product, with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Will it fit my vehicle?
Fit comes from the mount. The ZEON Platinum 12 bolts to a Warn winch mount, winch carrier or winch-ready bumper made for your vehicle, sold separately.
What can the accessory ports run?
Two 12V accessories on 16 amp ports, such as lights, switched from the ZEON Platinum 12 remote. Warn says this saves drilling through the firewall.
Does it come with a mount?
No. Warn sells winch mounts, carriers and winch-ready bumpers separately; the mount for your vehicle is what fits the winch.
Is a remote included?
Yes. The ZEON Platinum 12 comes with Warn's Advanced Wireless Remote, which controls the clutch and power in and out and shows motor temperature and vehicle battery information.
What does the line pull rating mean?
Warn rates line pull on the first layer of rope on the drum. Pull drops as more layers of rope build up, so use a snatch block for heavy recoveries.
How is it covered?
Warn gives these winches a limited lifetime mechanical and seven year electrical warranty. Keep your order receipt and contact us to start a claim.
Specifications
| Brand | Warn |
|---|---|
| Part Number | 92820 |
| Power | 12V DC |
| Model | ZEON Platinum 12 |
| Rated line pull | 12,000 lb |
| Rope | 80' of 3/8" steel rope |
| Fairlead | Roller |
| Motor | 12V high-speed |
| Geartrain | Planetary |
| Remote | Advanced Wireless Remote (remote clutch) |
| Accessory ports | Two 16 amp, 12V |
| Control pack | Convertible |
| Sealing | IP68 (Warn) |
| Finish | Black |
| Mount | Fixed mount; requires a winch mount |
| UPC | 012748048046 |
Warranty, shipping & returns
-
Warranty
Warn covers these winches with a limited lifetime warranty on mechanical components and a seven year warranty on electrical components, as stated on Warn's listings (Warn's Truck, Jeep and SUV Winch Warranty).- Coverage, limits and exclusions are as set out in Warn's written limited warranty for the winch.
- Keep your Prestige Truck order receipt as proof of purchase.
- Contact us to start a claim and we will work it through with Warn.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Check the carton for the winch, rope, fairlead, remote and control pack listed on the page, then look over the housing, rope and fairlead for shipping damage before you mount it. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
