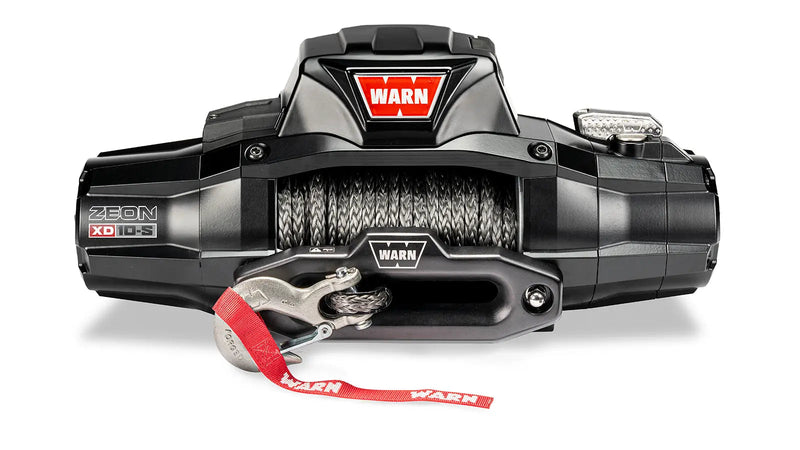

The Warn ZEON XD 10-S is the winch to reach for when a mid-size truck, a full-size SUV or a built Jeep needs to get itself out of trouble and get moving again. It pulls 10,000 lb on a single line, and it does it faster than anything else in its class: the high-efficiency motor and 3-stage planetary geartrain spin the drum at up to 40 ft/min with no load, so the slow part of a recovery becomes the rigging, not the winching. Warn wrapped the whole unit in full metal armor and sealed it to IP68 submersion and IP69K high-pressure spray, which is the rating that matters when you are winding line in while standing knee-deep in a river crossing. It ships pre-spooled with 100' of 3/8" Spydura synthetic rope on a large-diameter aluminum drum, with a forged black aluminum hawse fairlead, a 12' corded remote, and the HUB wireless receiver built into the control pack so you can work the winch from your phone at a safe distance. Every ZEON XD is engineered, tested and assembled in Clackamas, Oregon.
What's Included:
Warn ZEON XD 10-S winch, 10,000 lb rated line pull
3/8" x 100' Spydura synthetic rope with abrasion sleeve, pre-spooled
Large-radius forged black aluminum hawse fairlead
Hook with hook strap
Ruggedized corded remote with 12' lead
HUB wireless receiver, integrated into the control pack
Mounting hardware kit
Warn owner's manual and installation guide
Features
10,000 lb of Single-Line Pull The XD 10-S is rated at 10,000 lb on the first drum layer, which is the right size for a mid-size truck, a full-size SUV, or a Jeep on 35s or 37s. Warn's own guidance is to run a winch rated at roughly 1.5 times your vehicle's loaded weight, so this model suits rigs in the 6,000 to 6,600 lb range with margin left for a stuck-in-the-mud pull.
Fastest Line Speed in Its Class A high-performance, high-efficiency motor paired to a 3-stage planetary geartrain gives a no-load line speed of 40 ft/min, dropping to 5 ft/min at the full 10,000 lb rating. Fast free-running speed is what shortens a recovery, because most of the drum time is spent taking up slack rather than pulling at capacity.
Sealed to IP68 and IP69K Automotive-grade O-ring sealing runs through the motor, geartrain and control pack, and the complete winch carries both an IP68 submersion rating and an IP69K high-pressure spray rating. That covers deep water crossings and it covers a pressure washer aimed straight at the drum after a mud run.

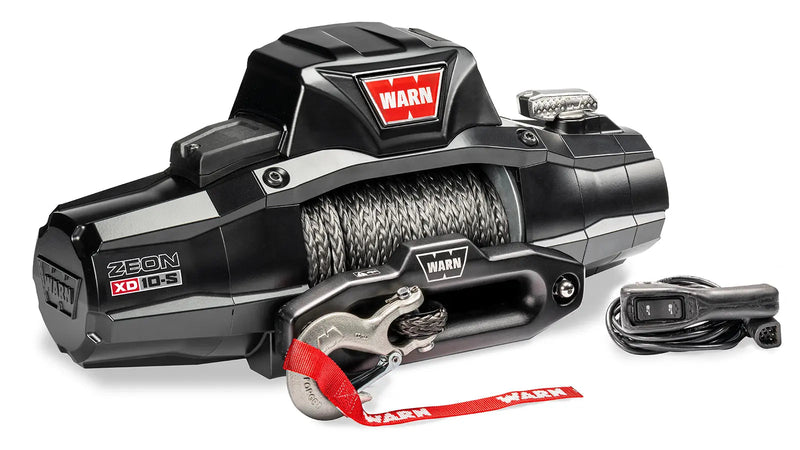

Full Metal Armor and OE-Grade Corrosion Protection Metal armor shields the gear end and control pack from rock strikes and trail debris instead of relying on plastic covers. The satin-black powder coat, black fasteners and UV-resistant bus bar covers are specified to 408 hours of salt spray, so the winch still looks and works right after a few winters of road salt.
100' of Spydura Synthetic Rope The 3/8" Spydura rope is lighter than steel cable, easier to handle with one hand, and it does not store energy the way a steel line does if it fails. Heat-resistant inner wraps protect it against brake heat coming off the drum, and the abrasion sleeve takes the damage where the rope drags over rock. A large-radius forged aluminum hawse fairlead keeps the entry angle gentle.

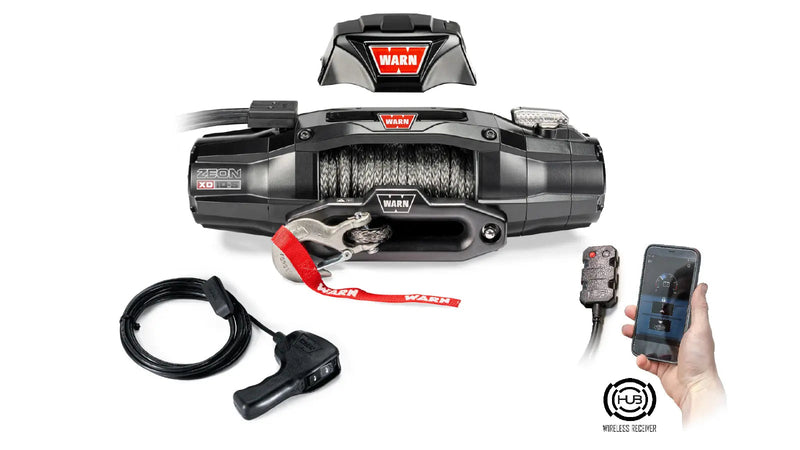

Wireless Control From Your Phone, Plus a Corded Remote The HUB wireless receiver is built into the control pack, so with the Warn HUB app you can operate the winch from over 100' away, from inside the cab or from wherever you can actually see the recovery. The ruggedized 12' corded remote is included as well, and it works whether or not you have your phone.
Albright Contactor and Bus Bar Wiring Warn uses an Albright contactor and automotive OE-grade bus bars in place of a conventional solenoid pack. It is the part of a winch that most often fails after a few seasons of wet and vibration, and it is the part Warn upgraded most on the XD.
✓ Yes for most builds, step up to the 12-S if the truck runs heavy
3/4-ton and 1-ton trucks
● Under-sized, choose the ZEON XD 12-S or 14-S instead
ATVs, UTVs and side-by-sides
✗ No, this is a truck and SUV winch
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It bolts to any winch mount, winch plate or bumper that uses the industry-standard 10" x 4.5" 4-bolt pattern, which is what nearly every aftermarket bumper and hidden winch mount for full-size and mid-size trucks provides. Warn's sizing guidance is to pick a winch rated at roughly 1.5 times your vehicle's loaded weight, so at 10,000 lb this model covers rigs up to about 6,600 lb. Check the length and height clearance behind your bumper before ordering: the XD is 23.89" long and 10.52" tall, which is taller than the low-profile ZEON XC. The mount and any required fairlead spacer are sold separately.
Specifications
Model: ZEON XD 10-S
Warn Part Number: 110010
Rated Line Pull (single line): 10,000 lb
No-Load Line Speed: 40 ft/min
Line Speed at Rated Load: 5 ft/min
Motor: 12V DC, series wound, Warn high-performance design
Motor Current (no load / rated load): 64 amps / 458 amps
Geartrain: 3-stage planetary
Gear Ratio: 141:1
Brake: Automatic load-holding mechanical cone
Clutch (free spooling): Rotating ring gear with stainless steel clutch lever, manual and remote activated
Drum Diameter x Length: 3.15" x 9.0", aluminum alloy
Rope: 3/8" x 100' Spydura synthetic with heat-resistant inner wraps and abrasion sleeve
Fairlead: Large-radius forged black aluminum hawse
Electrical Controls: Warn exclusive Albright contactor with OE-grade bus bars
Sealing: IP68 submersion and IP69K high-pressure spray, full unit
Corrosion Protection: 408-hour salt spray, OEM-grade black fasteners
Finish: Satin-black powder coat with full metal armor

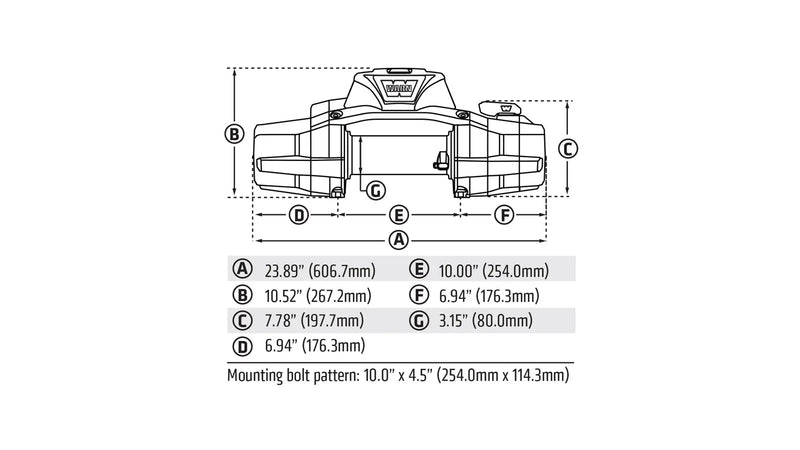

Overall Length: 23.89"
Overall Height: 10.52"
Mounting Bolt Pattern: 10" x 4.5", 4-bolt
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72"
Shipping Weight: About 86 lb
UPC: 012748110767
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, wire cutters or a battery terminal wrench; a second person to lift the winch into the mount · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount and torque the four bolts, fit the fairlead, then route the 2 gauge battery leads to the battery, keeping them clear of the exhaust and any moving steering or suspension components. Confirm the clutch lever and the remote socket are both reachable once the bumper is back on, and power the winch in and out under no load before you trust it on a recovery. Always read the Warn installation guide and the basic winching guide before the first pull.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XD 10-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. That reputation is not marketing: Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and it publishes real performance data, including line speed and motor current at every load point, rather than a single headline number.
The ZEON family is Warn's premium truck and SUV line, and the ZEON XD is the generation that reworked it from the ground up. Compared with the ZEON winches it replaced, the XD adds a faster motor and geartrain, an Albright contactor and OE-grade bus bars for cleaner electrical control, automotive-grade O-ring sealing rated to IP68 and IP69K, full metal armor over the gear end and control pack, and corrosion-resistant black fasteners tested to 408 hours of salt spray. It is backed by a limited lifetime mechanical warranty and a seven-year electrical warranty through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XD 10-S Winch, 10,000 lb with 100' Spydura Synthetic Rope (110010)
A short from Warn covering the design and performance changes that define the XD generation.
Useful if you are cross-shopping the XD against the older ZEON or against the compact ZEON XC.
How To Install Winch Rope On A Warn ZEON
Warn's guide to spooling rope onto a ZEON drum and setting it into the patented rope anchor.
Your 10-S arrives with the Spydura rope already fitted, so you will want this the first time you re-spool after a hard pull or replace the rope.
Warn HUB Wireless Receiver
The HUB receiver is built into this winch's control pack.
Warn's video shows how the app pairs to it, what the live readouts mean, and how far you can move away from the vehicle while still operating the winch.
Frequently Asked Questions
Straight answers on specs, fit and support
Is the ZEON XD 10-S big enough for my truck?
Warn's rule of thumb is a winch rated at about 1.5 times your vehicle's loaded weight, so 10,000 lb covers rigs up to roughly 6,600 lb. That takes in mid-size trucks, full-size SUVs, built Jeeps and most half-ton pickups. If your half-ton runs heavy with a bumper, armor, a rooftop tent and gear, or if you are on a 3/4-ton, step up to the XD 12-S or 14-S.
Does it come with a mount?
No. Winches are sold separately from the mount because the mount is what makes the fit vehicle-specific. This winch uses the industry-standard 10" x 4.5" 4-bolt pattern, which is what nearly every aftermarket winch bumper, winch plate and hidden winch mount provides. Confirm your mount has room for a winch 23.89" long and 10.52" tall before ordering.
Why synthetic rope instead of steel cable?
Spydura is lighter, it floats, and it is far easier to handle with one hand when you are re-spooling in cold or mud. It also stores much less energy than steel, so if it ever parts it drops rather than whipping. The trade-off is that synthetic rope wants care: keep it clean, keep it out of prolonged UV when you can, and inspect the abrasion sleeve after rocky pulls. The rope is a wear item and is not covered by the warranty.
How fast is it, really?
40 ft/min with no load on the line, and 5 ft/min at the full 10,000 lb rating. Motor draw runs 64 amps free-spooling and 458 amps at rated pull, which is why Warn specifies a 650 CCA battery as the minimum and why you should have the engine running during a recovery.
Can I control it from inside the cab?
Yes. The HUB wireless receiver is built into the control pack on this model, so the Warn HUB app pairs to the winch and gives you control from over 100' away along with live status. The ruggedized 12' corded remote is in the box as well, so you are never dependent on a phone battery.
Is it actually waterproof, or just water-resistant?
Sealed. The whole unit, not just the motor, is rated IP68 for submersion and IP69K for high-pressure spray, achieved with automotive-grade O-ring seals. Warn also specifies 408 hours of salt spray for the finish and fasteners. Water crossings and pressure washing are both within design intent.
