Twelve thousand pounds is the number most full-size truck owners land on, and the Warn ZEON XD 12-S is the current premium answer. It has the payload margin a loaded F-150, Silverado or Ram needs when it is buried past the rocker panels, and it keeps that margin with a bumper, skid plates, a tent and a bed full of gear on board. The 3-stage planetary geartrain runs a 176:1 reduction, which trades a little free-spool speed against the 10-S for genuine pulling authority at the top of the range. Everything else is pure ZEON XD: an Albright contactor and OE-grade bus bars instead of a conventional solenoid pack, automotive-grade O-ring sealing rated to IP68 submersion and IP69K high-pressure spray, full metal armor over the gear end, and a 408-hour salt-spray finish. It arrives with 80' of 3/8" Spydura Pro synthetic rope, a forged black aluminum hawse fairlead, a 12' corded remote, and the HUB wireless receiver built into the control pack. Engineered, tested and assembled in Clackamas, Oregon.
What's Included:

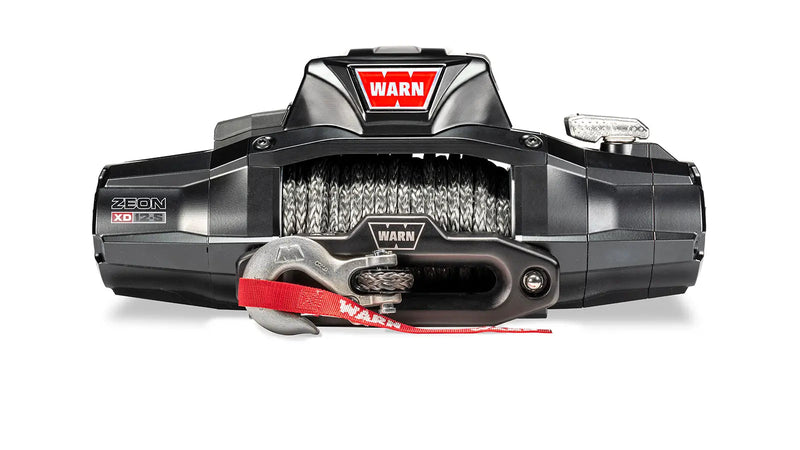

Warn ZEON XD 12-S winch, 12,000 lb rated line pull
3/8" x 80' Spydura Pro synthetic rope with heat-resistant inner wraps and abrasion sleeve, pre-spooled
Large-radius forged black aluminum hawse fairlead
Hook with hook strap

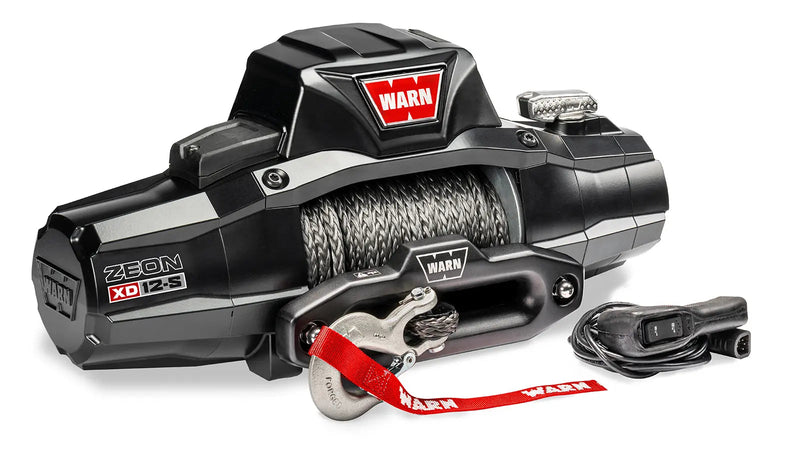

Ruggedized corded remote with 12' lead
HUB wireless receiver, integrated into the control pack
Mounting hardware kit
Warn owner's manual and installation guide
Features
12,000 lb for a Loaded Full-Size Truck Twelve thousand pounds of single-line pull is the sweet spot for half-ton and 3/4-ton pickups once they are carrying armor, a bumper and gear. Warn's guidance is to size the winch at roughly 1.5 times the vehicle's loaded weight, which puts this model comfortably over most full-size trucks with margin left for a suction pull out of deep mud.
176:1 Geartrain Tuned for Pull The 12-S runs a 176:1 reduction through its 3-stage planetary geartrain. No-load line speed is 31 ft/min and rated-load speed is 3 ft/min, drawing 67 amps free and 466 amps at full load. The taller reduction against the 10-S is what buys the extra 2,000 lb of capacity out of the same physical package.
Spydura Pro Rope With Heat-Resistant Inner Wraps The 12-S steps up from standard Spydura to Spydura Pro: the same 3/8" diameter and the same abrasion sleeve, with heat-resistant inner wraps that protect the line against brake heat radiating off the drum during a long, loaded pull. That matters more at 12,000 lb than it does at 10,000.
Sealed to IP68 and IP69K Automotive-grade O-ring sealing runs through the motor, geartrain and control pack, and the complete winch carries both an IP68 submersion rating and an IP69K high-pressure spray rating. Water crossings and a pressure washer aimed at the drum are both inside design intent.
Full Metal Armor and OE-Grade Corrosion Protection Metal armor shields the gear end and control pack from rock strikes and trail debris instead of relying on plastic covers. The satin-black powder coat, black fasteners and UV-resistant bus bar covers are specified to 408 hours of salt spray, so the winch survives winters on salted roads.
Wireless Control From Your Phone, Plus a Corded Remote The HUB wireless receiver is built into the control pack, so the Warn HUB app gives you control from over 100' away and live status while you work. The ruggedized 12' corded remote is included as well, so the winch is never dependent on a phone.
Albright Contactor and Bus Bar Wiring Warn uses an Albright contactor and automotive OE-grade bus bars in place of a conventional solenoid pack. Electrical control is where most winches fail after a few wet seasons, and it is where the XD generation put the most engineering.

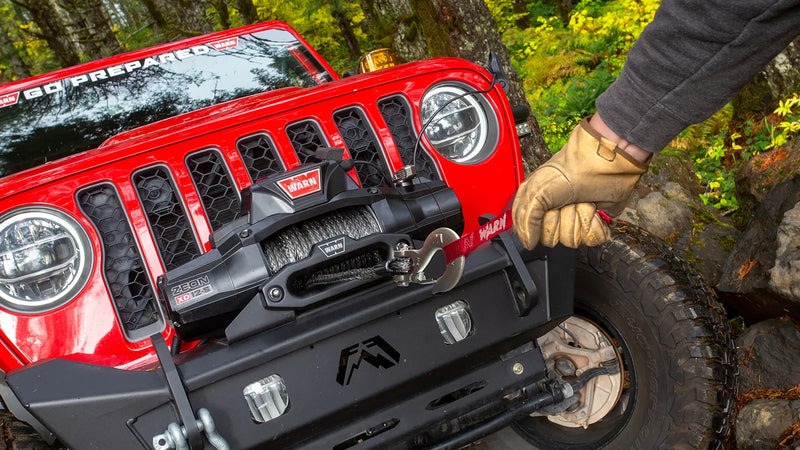

Heavily built Jeep Wranglers and Gladiators on 37s or larger
✓ Yes
Mid-size trucks and stock SUVs
● Works, but the 10-S is the better size and price match
1-ton trucks and heavy expedition rigs
● Step up to the ZEON XD 14-S
ATVs, UTVs and side-by-sides
✗ No, this is a truck and SUV winch
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It bolts to any winch mount, winch plate or bumper that uses the industry-standard 10" x 4.5" 4-bolt pattern. Warn's sizing guidance is a winch rated at roughly 1.5 times your vehicle's loaded weight, so 12,000 lb covers rigs up to about 8,000 lb, which is where a loaded half-ton or a 3/4-ton sits. Measure the space behind your bumper before ordering: the XD is 23.89" long and 10.52" tall, noticeably taller than the low-profile ZEON XC, and it will not fit every hidden-winch application. The mount is sold separately.
Specifications
Model: ZEON XD 12-S
Warn Part Number: 110012
Rated Line Pull (single line): 12,000 lb
No-Load Line Speed: 31 ft/min
Line Speed at Rated Load: 3 ft/min
Motor: 12V DC, series wound, Warn high-performance design
Motor Current (no load / rated load): 67 amps / 466 amps
Geartrain: 3-stage planetary
Gear Ratio: 176:1
Brake: Automatic load-holding mechanical cone
Clutch (free spooling): Rotating ring gear with stainless steel clutch lever, manual and remote activated
Drum Diameter x Length: 3.15" x 9.0", aluminum alloy
Rope: 3/8" x 80' Spydura Pro synthetic with heat-resistant inner wraps and abrasion sleeve
Fairlead: Large-radius forged black aluminum hawse
Electrical Controls: Warn exclusive Albright contactor with OE-grade bus bars
Sealing: IP68 submersion and IP69K high-pressure spray, full unit
Corrosion Protection: 408-hour salt spray, OEM-grade black fasteners
Finish: Satin-black powder coat with full metal armor

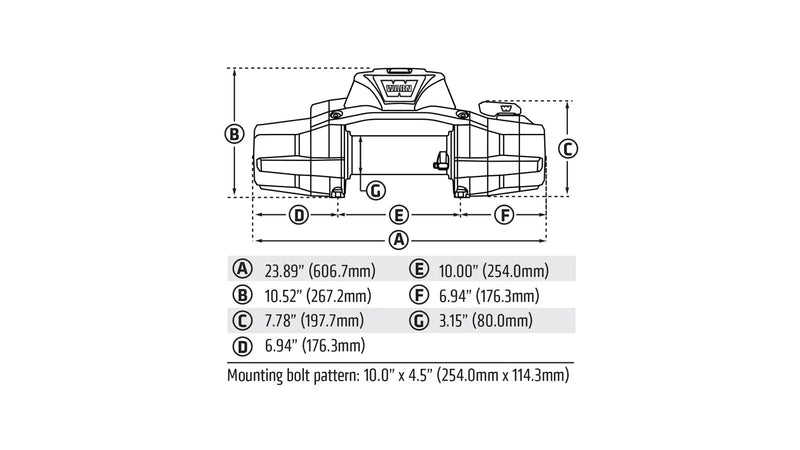

Overall Length: 23.89"
Overall Height: 10.52"
Mounting Bolt Pattern: 10" x 4.5", 4-bolt
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72"
Shipping Weight: About 85 lb
UPC: 012748110774
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, battery terminal wrench; a second person to lift the winch, it is about 85 lb in the box · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount and torque the four bolts, fit the fairlead, then route the 2 gauge battery leads to the battery clear of the exhaust and any moving steering or suspension parts. At this capacity the battery and charging system do real work, so check that your battery meets the 650 CCA minimum and run the engine during recoveries. Confirm the clutch lever and remote socket are still reachable with the bumper on, and cycle the winch in and out under no load before you rely on it.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XD 12-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. That reputation is not marketing: Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and it publishes real performance data, including line speed and motor current at every load point, rather than a single headline number.
The ZEON family is Warn's premium truck and SUV line, and the ZEON XD is the generation that reworked it from the ground up. Compared with the ZEON winches it replaced, the XD adds a faster motor and geartrain, an Albright contactor and OE-grade bus bars for cleaner electrical control, automotive-grade O-ring sealing rated to IP68 and IP69K, full metal armor over the gear end and control pack, and corrosion-resistant black fasteners tested to 408 hours of salt spray. It is backed by a limited lifetime mechanical warranty and a seven-year electrical warranty through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XD 12-S Winch, 12,000 lb with 80' Spydura Pro Synthetic Rope (110012)
A short from Warn on the design and performance changes that define the XD generation.
Useful if you are weighing the 12-S against the older ZEON 12 or against the compact ZEON XC 12-S.
How To Install Winch Rope On A Warn ZEON
Warn's guide to spooling rope onto a ZEON drum and seating it in the patented rope anchor.
Your 12-S arrives with the Spydura Pro rope already fitted, so keep this for the first re-spool after a hard pull or a rope replacement.
Warn HUB Wireless Receiver
The HUB receiver is built into this winch's control pack.
Warn's video covers pairing the app, reading the live status, and how far you can move from the vehicle while still operating the winch.
Frequently Asked Questions
Straight answers on specs, fit and support
Should I buy the 12-S or the 10-S?
Go by loaded weight, not by badge. Warn's rule is a winch rated at about 1.5 times what your vehicle actually weighs with gear on board. A stock mid-size truck or an SUV lands on the 10-S; a half-ton pickup with a steel bumper, sliders and a loaded bed lands on the 12-S. If you are regularly recovering someone else's truck as well as your own, take the extra capacity.
What is the difference between Spydura and Spydura Pro?
Both are 3/8" synthetic rope with an abrasion sleeve. Spydura Pro adds heat-resistant inner wraps that shield the line from heat coming off the brake in the drum during long, heavily loaded pulls. The 12-S ships with Spydura Pro because it works closer to that limit than the 10-S does.
Will it fit behind my bumper?
Measure first. The XD is 23.89" long and 10.52" tall, which is a full-height winch, not a low-profile one. It suits open winch bumpers and winch plates. If you are trying to hide the winch behind a factory-look bumper or a stubby, look at the ZEON XC 12-S instead, which sits 7.83" tall with its control pack below the tie plate.
What battery and wiring does it need?
A 650 CCA battery is the published minimum for winching. The included leads are 2 gauge and 72" long, which reaches the battery on most full-size trucks; if your battery is further away or you are relocating the control pack, size any extension to match. At rated pull this winch draws 466 amps, so run the engine during a recovery and keep your charging system healthy.
Can I operate it from the cab?
Yes. The HUB wireless receiver is built into the control pack, so the Warn HUB app pairs to the winch and gives you control from over 100' away with live status. The 12' corded remote is in the box too.
Is the rope covered by the warranty?
No, and this catches people out. The mechanical warranty is limited lifetime and the electrical warranty is seven years, but the rope, the finish and any damage from overloading or improper installation are excluded. Treat the rope as a wear item: keep it clean, inspect the sleeve after rocky pulls, and re-spool it under light tension so it does not bury a loaded wrap into the layers below.
