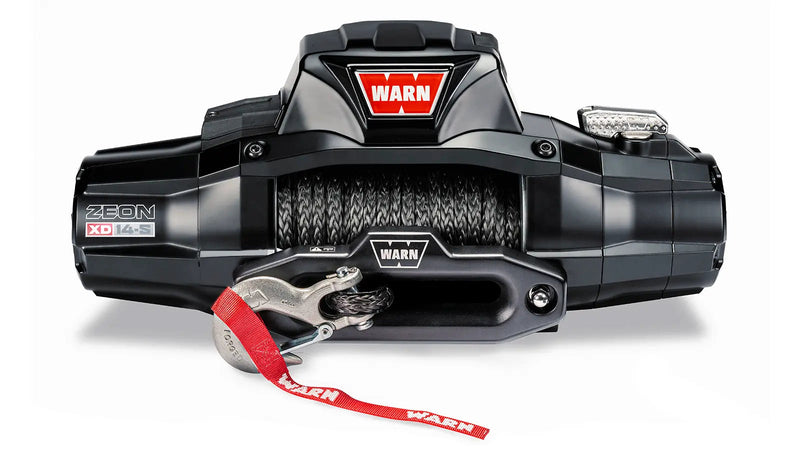

The ZEON XD 14-S is the biggest winch Warn builds in the XD family, and it exists for the trucks that outgrew everything else: 3/4-ton and 1-ton pickups, flatbeds, heavy expedition rigs, and anything that has to pull itself out while carrying a camper. Fourteen thousand pounds of single-line pull comes from a 213:1 reduction through the same 3-stage planetary geartrain that runs the rest of the line, so the extra capacity arrives without a physically bigger winch: it is still 23.89" long on the standard 10" x 4.5" bolt pattern. Warn seals the whole unit to IP68 submersion and IP69K high-pressure spray with automotive-grade O-rings, armors the gear end and control pack in metal, and specifies the finish and fasteners to 408 hours of salt spray. It ships with 80' of 3/8" Spydura Pro synthetic rope, a forged black aluminum hawse fairlead, a 12' corded remote and the HUB wireless receiver built into the control pack. Engineered, tested and assembled in Clackamas, Oregon.
What's Included:
Warn ZEON XD 14-S winch, 14,000 lb rated line pull
3/8" x 80' Spydura Pro synthetic rope with heat-resistant inner wraps and abrasion sleeve, pre-spooled
Large-radius forged black aluminum hawse fairlead
Hook with hook strap
Ruggedized corded remote with 12' lead
HUB wireless receiver, integrated into the control pack
Mounting hardware kit
Warn owner's manual and installation guide
Features
14,000 lb, the Highest Capacity in the XD Line Fourteen thousand pounds of single-line pull is aimed squarely at 3/4-ton and 1-ton trucks, heavy overland builds and anything carrying a slide-in camper. Warn sizes winches at roughly 1.5 times the vehicle's loaded weight, which puts this model over rigs in the 9,000 lb range with margin for a genuine stuck, not just a tug.
213:1 Reduction, Full Capacity in the Same Footprint The 14-S gets its capacity from a 213:1 reduction rather than a bigger housing, so it still measures 23.89" long on the standard 10" x 4.5" bolt pattern and drops into the same mounts as the 10-S and 12-S. No-load line speed is 26.1 ft/min and rated-load speed is 2.1 ft/min, drawing 65 amps free and 482 amps at full pull.
Spydura Pro Rope Built for Heat The 3/8" Spydura Pro rope carries heat-resistant inner wraps under its abrasion sleeve, which is the detail that matters at this capacity: a long pull at 14,000 lb puts real heat into the drum through the cone brake, and the wraps protect the line from it. Synthetic also means you can handle the rope one-handed and it does not store the energy a steel cable would.
Sealed to IP68 and IP69K Automotive-grade O-ring sealing runs through the motor, geartrain and control pack, and the complete winch carries both an IP68 submersion rating and an IP69K high-pressure spray rating. Deep water crossings and pressure washing are both inside design intent.
Full Metal Armor and OE-Grade Corrosion Protection Metal armor shields the gear end and control pack from rock strikes and trail debris. The satin-black powder coat, black fasteners and UV-resistant bus bar covers are specified to 408 hours of salt spray, which is what keeps a working truck's winch functional through salted winters.

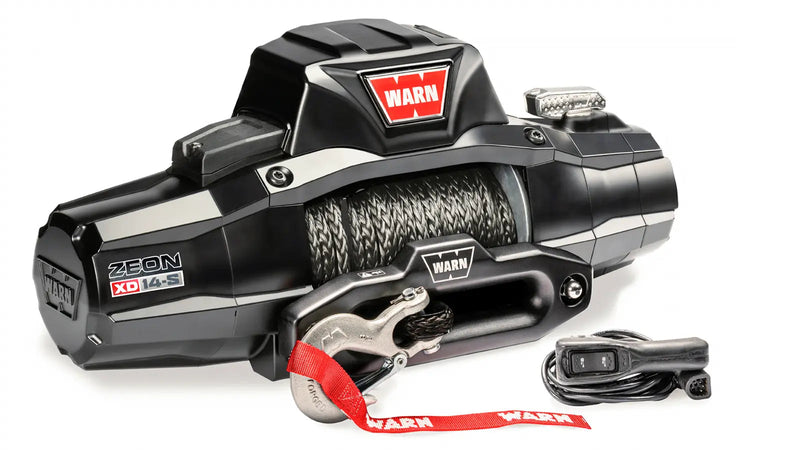

Wireless Control From Your Phone, Plus a Corded Remote The HUB wireless receiver is built into the control pack, so the Warn HUB app gives you control from over 100' away with live status while you stand somewhere safe. The ruggedized 12' corded remote is included as well.
Albright Contactor and Bus Bar Wiring Warn uses an Albright contactor and automotive OE-grade bus bars in place of a conventional solenoid pack. At 482 amps of rated-load draw, clean electrical control is not a luxury item.
Fitment & Compatibility
Vehicle Class
Fit
3/4-ton and 1-ton trucks (F-250/F-350, Silverado 2500/3500, Ram 2500/3500)
✓ Yes, ideal application
Heavy expedition and overland builds, slide-in campers
✓ Yes, ideal application
Half-ton full-size trucks running heavy
✓ Yes, more capacity than most need
Mid-size trucks, stock SUVs and Jeeps
● Over-sized, the 10-S or 12-S is the better match
ATVs, UTVs and side-by-sides
✗ No, this is a truck and SUV winch
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It uses the industry-standard 10" x 4.5" 4-bolt pattern and shares its 23.89" length with the rest of the XD line, so it drops into the same winch bumpers, plates and mounts as the 10-S and 12-S with no extra clearance needed. Check that your mount and bumper are rated for the load you intend to pull: at 14,000 lb the mount, its fasteners and the frame mounting points matter as much as the winch. Warn sizing guidance is roughly 1.5 times your vehicle's loaded weight. The mount is sold separately.
Specifications
Model: ZEON XD 14-S
Warn Part Number: 110014
Rated Line Pull (single line): 14,000 lb
No-Load Line Speed: 26.1 ft/min
Line Speed at Rated Load: 2.1 ft/min
Motor: 12V DC, series wound, Warn high-performance design
Motor Current (no load / rated load): 65 amps / 482 amps
Geartrain: 3-stage planetary
Gear Ratio: 213:1
Brake: Automatic load-holding mechanical cone
Clutch (free spooling): Rotating ring gear with stainless steel clutch lever, manual and remote activated
Drum Diameter x Length: 3.15" x 9.0", aluminum alloy
Rope: 3/8" x 80' Spydura Pro synthetic with heat-resistant inner wraps and abrasion sleeve
Fairlead: Large-radius forged black aluminum hawse
Electrical Controls: Warn exclusive Albright contactor with OE-grade bus bars
Sealing: IP68 submersion and IP69K high-pressure spray, full unit
Corrosion Protection: 408-hour salt spray, OEM-grade black fasteners
Finish: Satin-black powder coat with full metal armor

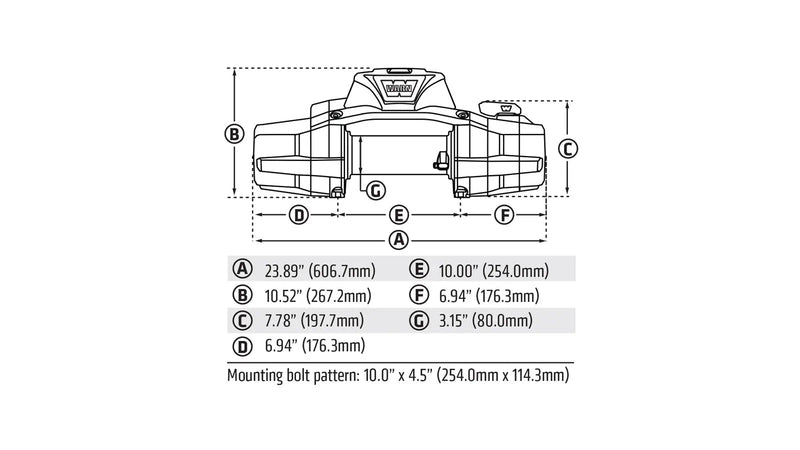

Overall Length: 23.89"
Overall Height: 10.52"
Mounting Bolt Pattern: 10" x 4.5", 4-bolt
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72"
Shipping Weight: About 80 lb
UPC: 012748116226
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, battery terminal wrench; a second person to lift the winch into the mount · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount and torque the four bolts to the figures in the Warn installation guide, fit the fairlead, then route the 2 gauge battery leads clear of the exhaust and any moving steering or suspension components. Because this winch can pull 14,000 lb, verify that your mount, its hardware and the frame mounting points are rated for it before the first recovery. Cycle the winch in and out under no load, confirm the clutch lever and remote socket are reachable with the bumper installed, and read Warn's basic winching guide before you rig a real pull.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XD 14-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. That reputation is not marketing: Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and it publishes real performance data, including line speed and motor current at every load point, rather than a single headline number.
The ZEON family is Warn's premium truck and SUV line, and the ZEON XD is the generation that reworked it from the ground up. Compared with the ZEON winches it replaced, the XD adds a faster motor and geartrain, an Albright contactor and OE-grade bus bars for cleaner electrical control, automotive-grade O-ring sealing rated to IP68 and IP69K, full metal armor over the gear end and control pack, and corrosion-resistant black fasteners tested to 408 hours of salt spray. The 14-S is the newest and highest-capacity member of that family. It is backed by a limited lifetime mechanical warranty and a seven-year electrical warranty through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XD 14-S Winch, 14,000 lb with 80' Spydura Pro Synthetic Rope (110014)
A short from Warn on the design and performance changes that define the XD generation, and the platform the 14-S is built on.
How To Install Winch Rope On A Warn ZEON
Warn's guide to spooling rope onto a ZEON drum and seating it in the patented rope anchor.
Your 14-S arrives with the Spydura Pro rope fitted, so keep this for the first re-spool or a rope replacement.
Warn HUB Wireless Receiver
The HUB receiver is built into this winch's control pack.
Warn's video covers pairing the app, reading live status, and operating the winch from a distance.
Frequently Asked Questions
Straight answers on specs, fit and support
Do I actually need 14,000 lb?
If you drive a 3/4-ton or 1-ton, or you carry a camper, yes. Warn's sizing guidance is roughly 1.5 times the vehicle's loaded weight, and a loaded heavy-duty pickup can be 9,000 lb before you add anything. On a mid-size truck or a Jeep the 14-S is more winch than the vehicle can use, and the 10-S or 12-S will spool faster for the same money.
Is it bigger than the 12-S? Will my mount still fit?
No, and yes. The 14-S shares the ZEON XD footprint: 23.89" long, 10.52" tall, on the standard 10" x 4.5" 4-bolt pattern. It drops into the same bumpers, plates and mounts as the 10-S and 12-S. What does change is the load your mount and frame have to carry, so confirm the mount is rated for it.
How fast does it pull?
26.1 ft/min with no load and 2.1 ft/min at the full 14,000 lb rating. High-capacity winches trade speed for pull, which is exactly what the 213:1 reduction is doing. Motor draw is 65 amps free and 482 amps at rated pull, so a healthy 650 CCA battery and a running engine are not optional during a recovery.
Why does it only carry 80' of rope?
Drum capacity. The XD drum is 3.15" in diameter and 9.0" long across the whole line, and 3/8" rope at 14,000 lb needs the layer count kept sensible: pulling power drops as the rope stacks up, so the outer layers of a longer rope would give you less capacity, not more. If you need more reach, use a tree strap and a snatch block rather than a longer line.
Can I control it from the cab?
Yes. The HUB wireless receiver is built into the control pack, so the Warn HUB app gives control from over 100' away plus live status. The ruggedized 12' corded remote is in the box as a backup.
How is it protected against water and salt?
The complete unit, not just the motor, is rated IP68 for submersion and IP69K for high-pressure spray using automotive-grade O-ring seals. The finish and fasteners are specified to 408 hours of salt spray, and the gear end and control pack sit behind metal armor rather than plastic covers.
