The ZEON XP is the top of Warn's range, and the 10-S is the version sized for mid-size trucks, full-size SUVs and built Jeeps. It is built on the same platform as the ZEON XD and shares its motor and geartrain, so it pulls 10,000 lb at 39.7 ft/min with no load on the line. What you are paying the difference for is control. The XP adds a smart wired remote and a built-in HUB wireless receiver that report live motor temperature, load and battery voltage while you work, so you find out the winch is getting hot before it stops rather than after. It adds a remote-activated clutch with a manual backup, which means you can drop into free spool without walking to the bumper and it re-engages automatically when you power in or out. And it adds dynamic drum and accent lighting that changes color with winch status, which is genuinely useful at night. It ships with 100' of 3/8" Spydura synthetic rope, a forged black hawse fairlead, a black Epic hook and a hardware kit. Engineered, tested and assembled in Clackamas, Oregon.

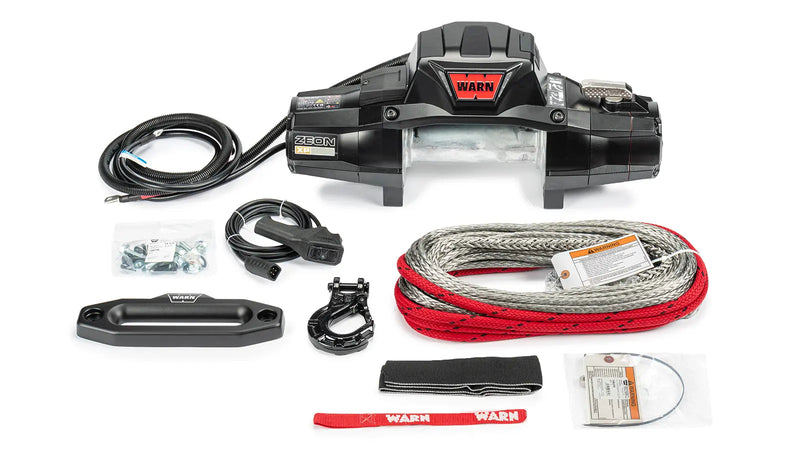

What's Included:

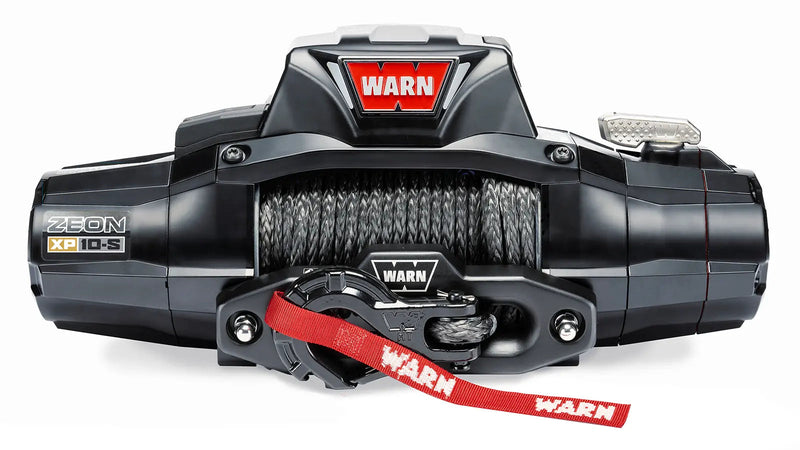

Warn ZEON XP 10-S winch, 10,000 lb rated line pull
3/8" x 100' Spydura synthetic rope with abrasion sleeve, pre-spooled
Forged black hawse fairlead
Black Epic hook with hook strap
Smart wired remote with LED status feedback
HUB wireless receiver, integrated into the control pack
Hardware kit
Warn owner's manual
Features

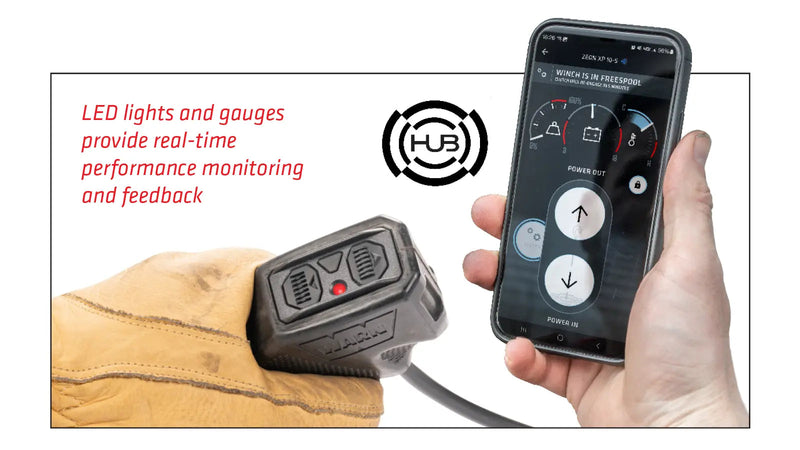

Live Feedback While You Winch The XP's controls report motor temperature, line load and vehicle battery condition in real time, through the smart wired remote and through the Warn HUB app. On any other winch you are guessing: you find out the motor is heat-soaked when it slows down. Here you can see it building and pause before you cook it, which on a long self-recovery is the difference between a delay and a repair.
Class-Exclusive Remote-Activated Clutch Free spool without walking to the bumper. A button on the remote or in the app disengages the clutch, and it re-engages automatically as soon as you power the winch in or out. A manual clutch lever is still there as a backup. In deep water, deep mud, or on a slope you would rather not stand on, this is the feature people notice first.
Dynamic Status Lighting Drum and accent lights change color with winch status, and the wired remote's LED matches them. It reads at a glance from the driver's seat and it lights the working area at night, which is when most recoveries seem to happen.

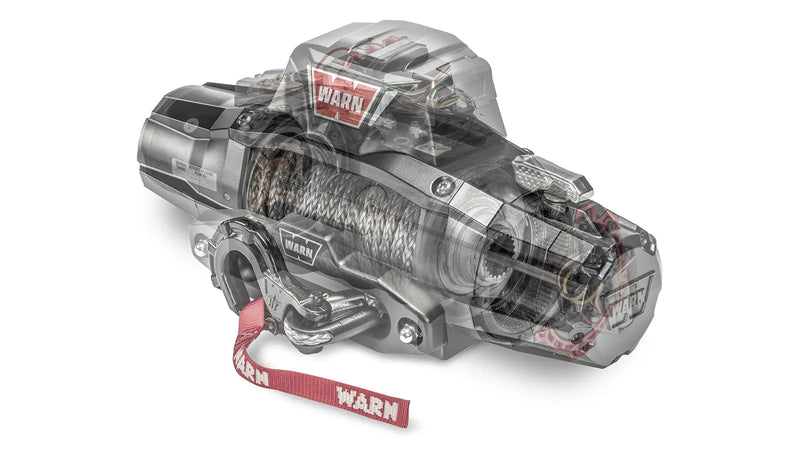

The ZEON XD Motor and Geartrain The XP is built on the ZEON XD platform and shares its high-efficiency motor and 3-stage planetary geartrain, giving 39.7 ft/min with no load and 4.9 ft/min at the full 10,000 lb rating, with 64 amps of free-running draw and 458 amps at rated pull. The performance is proven; the control system is what is new.
Sealed to IP68 and IP69K Automotive-grade O-ring seals run through the motor, geartrain and control pack, and the complete winch carries an IP68 submersion rating and an IP69K high-pressure spray rating. The finish and fasteners are specified to OEM-grade corrosion resistance.
100' of Spydura Synthetic Rope, Epic Hook Included The 3/8" Spydura rope is lighter than steel, easy to handle one-handed, and safer if it ever parts. It runs over a large-radius forged black hawse fairlead, and unlike most winches in this class the kit includes Warn's black Epic hook with a hook strap rather than leaving you to buy one.
Aluminum Chassis and Outer Armor The XP wraps the geartrain and control pack in an aluminum chassis and outer armor, so the parts that get hit by rocks and road debris are the parts designed to take it.
✓ Yes for most builds, step up to the XP 12-S if the truck runs heavy
3/4-ton and 1-ton trucks
● Under-sized, choose the XP 12-S or 14-S
ATVs, UTVs and side-by-sides
✗ No, this is a truck and SUV winch
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It bolts to any winch mount, plate or bumper that uses the industry-standard 10" x 4.5" 4-bolt pattern. Warn's sizing guidance is a winch rated at roughly 1.5 times your vehicle's loaded weight, so 10,000 lb covers rigs up to about 6,600 lb. The XP shares the full-height ZEON XD footprint at 23.89" long and 10.52" tall, so confirm the clearance behind your bumper: if you need a low-profile or hidden install, look at the ZEON XC line instead. The mount is sold separately.
Specifications
Model: ZEON XP 10-S
Warn Part Number: 110100
Rated Line Pull (single line): 10,000 lb
No-Load Line Speed: 39.7 ft/min
Line Speed at Rated Load: 4.9 ft/min
Motor: 12V DC, series wound, high-efficiency Warn design
Motor Current (no load / rated load): 64 amps / 458 amps
Geartrain: 3-stage planetary
Gear Ratio: 141:1
Brake: Automatic load-holding mechanical cone
Clutch (free spooling): Remote-activated with manual backup; re-engages automatically when powered in or out
Drum Diameter x Length: 3.15" x 9.0"
Rope: 3/8" x 100' Spydura synthetic with abrasion sleeve
Fairlead: Forged black aluminum hawse, large radius
Live Feedback: Motor temperature, line load and battery voltage
Lighting: Dynamic drum and accent lighting, color changes with winch status
Sealing: IP68 submersion and IP69K high-pressure spray
Corrosion Protection: OEM grade
Finish: Satin-black powder coat, aluminum chassis and outer armor

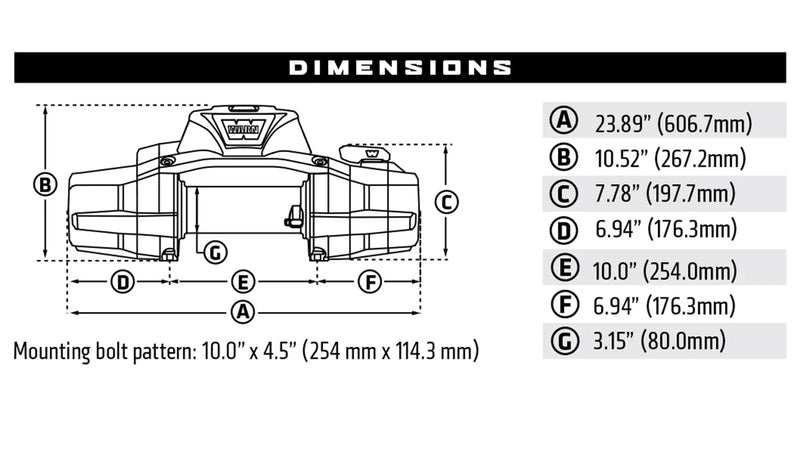

Overall Length: 23.89"
Overall Height: 10.52"
Mounting Bolt Pattern: 10" x 4.5", 4-bolt
Recommended Battery: 650 CCA minimum for winching
Winch Weight: About 70 lb
Shipping Weight: About 86 lb
UPC: 012748116714
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, battery terminal wrench; a second person to lift the winch into the mount · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount, torque the four bolts, fit the fairlead, then route the battery leads clear of the exhaust and any moving steering or suspension components. Before you refit the bumper, pair the HUB wireless receiver to the Warn HUB app and confirm the remote-activated clutch engages and disengages, because those are the two things you do not want to discover are unpaired or unreachable when you are already stuck. Cycle the winch in and out under no load and read Warn's basic winching guide before the first real pull.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XP 10-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and publishes real performance data rather than a single headline number.
The ZEON XP sits at the top of that range. It takes the ZEON XD's high-efficiency motor, 3-stage planetary geartrain and IP68 and IP69K sealing, then rebuilds the control side around live feedback: a smart wired remote and integrated HUB wireless control that report motor temperature, load and battery condition in real time, a class-exclusive remote-activated clutch with manual override, and dynamic lighting that signals winch status by color. Warn backs it with the industry's leading warranty, limited lifetime on the mechanical side and seven years on the electrical side, through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XP 10-S Winch, 10,000 lb with 100' Spydura Synthetic Rope (110100)
A short from Warn introducing the XP's headline features.
Quick context on why the XP sits above the XD in the range.
ZEON XP Party Mode Lighting
Warn showing the XP's dynamic drum and accent lighting after dark.
It is the clearest look at what the color-change status lighting actually does on the vehicle.
Warn HUB Wireless Receiver
The HUB receiver is built into this winch's control pack.
Warn's video covers pairing the app, reading live status, and operating the winch from a distance.
Frequently Asked Questions
Straight answers on specs, fit and support
What do I get for the extra money over a ZEON XD 10-S?
The pulling hardware is the same platform, so not speed or capacity. You are buying control: live motor temperature, load and battery readouts on the remote and in the app, a clutch you can engage and release from the remote instead of walking to the bumper, dynamic status lighting, and Warn's Epic hook in the box. If you winch rarely and in daylight, the XD is the value pick. If you winch often, at night, or alone, the XP earns it.
How does the remote-activated clutch work?
Press the clutch button on the smart remote or in the HUB app and the winch drops into free spool so you can pull line out by hand. It re-engages automatically the moment you power the winch in or out. A manual clutch lever is still fitted as a backup, so a flat phone or a damaged remote does not strand you.
Is the wireless control included, or an add-on?
Included. The HUB wireless receiver is built into the control pack on the XP, not sold separately. Pair it to the Warn HUB app and you get control plus live status from over 100' away. The smart wired remote is in the box as well.
Is 10,000 lb enough for my truck?
Warn sizes winches at roughly 1.5 times the vehicle's loaded weight, so 10,000 lb suits rigs up to about 6,600 lb: mid-size trucks, full-size SUVs, built Jeeps and most half-ton pickups. A heavily loaded half-ton or anything bigger should be on the XP 12-S or 14-S.
How much rope does it come with?
100' of 3/8" Spydura synthetic with an abrasion sleeve, pre-spooled, plus the forged black hawse fairlead and the Epic hook. Note that some retailers list this SKU as an 80' kit; the two independent Warn spec tables we cross-checked, including Warn's European distributor listing, both give 9.5mm x 30m, which is 3/8" x 100'.
Will it fit behind a factory-look bumper?
Probably not. The XP is a full-height winch at 23.89" long and 10.52" tall, built for open winch bumpers and winch plates. For hidden or stubby-bumper installs, the low-profile ZEON XC line is the one designed for it, with the control pack sitting below the tie plate at 7.83" tall.
