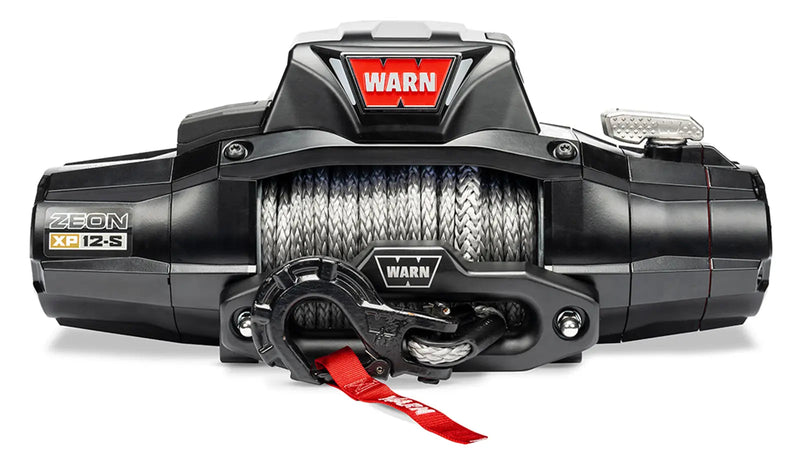

A full-size truck that gets used hard deserves the winch that tells you what it is doing. The Warn ZEON XP 12-S pulls 12,000 lb on a single line, which is the capacity most half-ton and 3/4-ton owners settle on once the truck is carrying a steel bumper and a loaded bed, and it pairs that with the most informative control system Warn builds. The smart wired remote and the built-in HUB wireless receiver both report motor temperature, line load and battery voltage live while you work, so a long recovery becomes something you can manage instead of something you hope holds together. The clutch is remote-activated with a manual backup and re-engages by itself when you power in or out. Dynamic drum and accent lighting changes color with winch status, which turns out to matter most at 2am in the rain. Underneath it is the proven ZEON XD platform: the same high-efficiency motor and 3-stage planetary geartrain, IP68 and IP69K sealing, and an aluminum chassis with outer armor. It ships with 80' of 3/8" Spydura Pro synthetic rope, a forged black hawse fairlead and a black Epic hook.

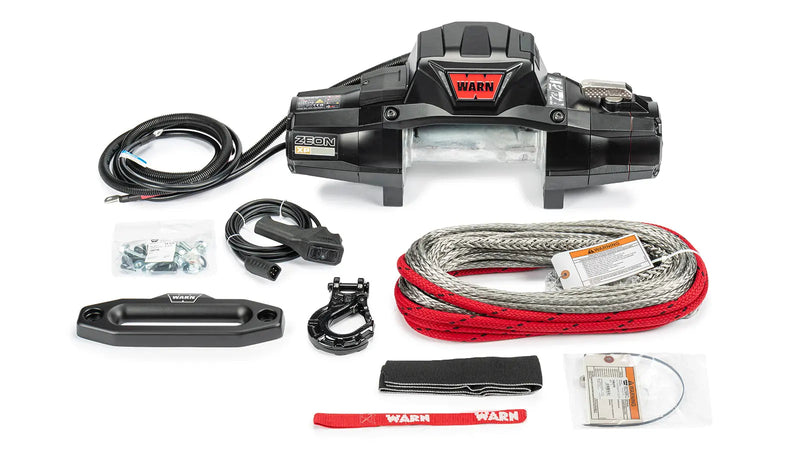

What's Included:
Warn ZEON XP 12-S winch, 12,000 lb rated line pull
3/8" x 80' Spydura Pro synthetic rope with abrasion sleeve, pre-spooled
Forged black hawse fairlead
Black Epic hook with hook strap
Smart wired remote with LED status feedback
HUB wireless receiver, integrated into the control pack
Hardware kit
Warn owner's manual
Features
12,000 lb With Live Load Readout Twelve thousand pounds of single-line pull covers a loaded half-ton or a 3/4-ton with margin, and the XP is the only ZEON that shows you how much of that margin you are actually using. Line load appears live on the smart remote and in the HUB app, so you can tell a hard pull from an overload before something gives.
Motor Temperature and Battery Voltage, in Real Time Winch motors fail from heat and winch recoveries fail from flat batteries. The XP reports both while you work. On a long self-recovery you can see the motor climbing and pause, and you can see the battery sagging and let the engine catch up, rather than finding out when the drum stops turning.
Class-Exclusive Remote-Activated Clutch Drop into free spool from the remote or the app without walking to the front of the truck, then let it re-engage automatically the moment you power the winch in or out. The manual clutch lever is still fitted as a backup. On a slope, in water or in deep mud this is the feature owners mention first.

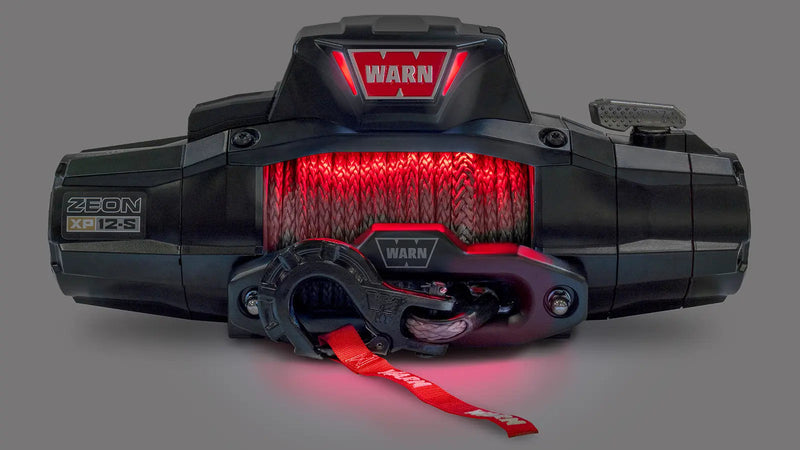

Dynamic Status Lighting Drum and accent lights change color with winch status and the wired remote's LED matches them, so the winch's state reads at a glance from the driver's seat and the working area is lit while you rig.

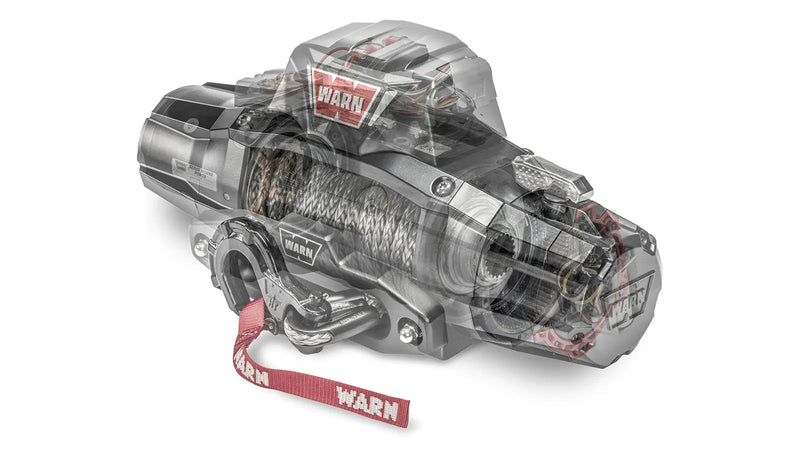

The Proven ZEON XD Platform The XP shares the ZEON XD's high-efficiency motor and 3-stage planetary geartrain, giving 31.1 ft/min with no load and 3.3 ft/min at the full 12,000 lb rating, with 67 amps free-running and 466 amps at rated pull. The performance is proven; the control system is what is new.
Sealed to IP68 and IP69K Automotive-grade O-ring seals run through the motor, geartrain and control pack, and the complete winch carries an IP68 submersion rating and an IP69K high-pressure spray rating, with OEM-grade corrosion protection on the finish and fasteners.
Spydura Pro Rope and Epic Hook Included The 3/8" Spydura Pro rope adds heat-resistant inner wraps under its abrasion sleeve, which matters on the long loaded pulls a 12,000 lb winch gets asked for. It runs over a large-radius forged black hawse fairlead, and Warn's black Epic hook and hook strap are in the box rather than sold separately.
Heavily built Jeep Wranglers and Gladiators on 37s or larger
✓ Yes
Mid-size trucks and stock SUVs
● Works, but the XP 10-S is the better size and price match
1-ton trucks and heavy expedition rigs
● Step up to the XP 14-S
ATVs, UTVs and side-by-sides
✗ No, this is a truck and SUV winch
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It bolts to any winch mount, plate or bumper using the industry-standard 10" x 4.5" 4-bolt pattern. Warn's sizing guidance is roughly 1.5 times your vehicle's loaded weight, so 12,000 lb covers rigs up to about 8,000 lb, which is where a loaded half-ton or a 3/4-ton sits. The XP shares the full-height ZEON XD footprint at 23.89" long and 10.52" tall, so confirm clearance behind your bumper; hidden and stubby-bumper installs want the low-profile ZEON XC instead. The mount is sold separately.
Specifications
Model: ZEON XP 12-S
Warn Part Number: 110120
Rated Line Pull (single line): 12,000 lb
No-Load Line Speed: 31.1 ft/min
Line Speed at Rated Load: 3.3 ft/min
Motor: 12V DC, series wound, high-efficiency Warn design
Motor Current (no load / rated load): 67 amps / 466 amps
Geartrain: 3-stage planetary
Brake: Automatic load-holding mechanical cone
Clutch (free spooling): Remote-activated with manual backup; re-engages automatically when powered in or out
Drum Diameter x Length: 3.15" x 9.0"
Rope: 3/8" x 80' Spydura Pro synthetic with abrasion sleeve
Fairlead: Forged black aluminum hawse, large radius
Live Feedback: Motor temperature, line load and battery voltage
Lighting: Dynamic drum and accent lighting, color changes with winch status
Sealing: IP68 submersion and IP69K high-pressure spray
Corrosion Protection: OEM grade
Finish: Satin-black powder coat, aluminum chassis and outer armor

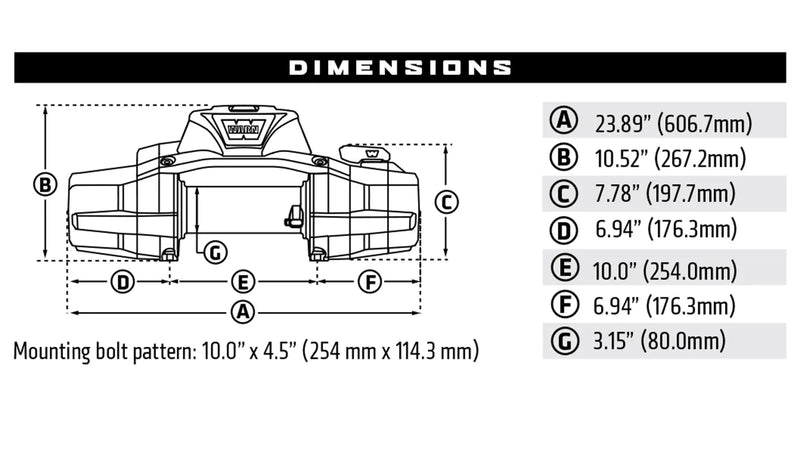

Overall Length: 23.89"
Overall Height: 10.52"
Mounting Bolt Pattern: 10" x 4.5", 4-bolt
Recommended Battery: 650 CCA minimum for winching
Winch Weight: About 70 lb
Shipping Weight: About 88 lb
UPC: 012748116721
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, battery terminal wrench; a second person to lift the winch, it is about 88 lb in the box · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount, torque the four bolts, fit the fairlead, then route the battery leads clear of the exhaust and any moving steering or suspension components. Before the bumper goes back on, pair the HUB wireless receiver to the Warn HUB app and confirm the remote-activated clutch engages and releases. At 466 amps of rated-load draw, check that your battery meets the 650 CCA minimum and that the charging system is healthy, then cycle the winch in and out under no load.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XP 12-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and publishes real performance data rather than a single headline number.
The ZEON XP sits at the top of that range. It takes the ZEON XD's high-efficiency motor, 3-stage planetary geartrain and IP68 and IP69K sealing, then rebuilds the control side around live feedback: a smart wired remote and integrated HUB wireless control that report motor temperature, load and battery condition in real time, a class-exclusive remote-activated clutch with manual override, and dynamic lighting that signals winch status by color. Warn backs it with the industry's leading warranty, limited lifetime on the mechanical side and seven years on the electrical side, through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XP 12-S Winch, 12,000 lb with 80' Spydura Pro Synthetic Rope (110120)
Warn showing the XP's dynamic drum and accent lighting after dark.
The clearest look at what the color-change status lighting does on the vehicle.
ZEON XP At Jeep Beach
A short clip from Warn of the XP on display and in use at Jeep Beach.
Useful for seeing the winch fitted in a real bumper rather than on a studio background.
Warn HUB Wireless Receiver
The HUB receiver is built into this winch's control pack.
Warn's video covers pairing the app, reading live status, and operating the winch from a distance.
Frequently Asked Questions
Straight answers on specs, fit and support
XP 12-S or XD 12-S? They pull the same.
They do, and that is the point: same platform, same motor and geartrain, same 12,000 lb rating. The XP adds live motor temperature, load and battery readouts, a clutch you can work from the remote, dynamic status lighting and the Epic hook in the box. If you winch a few times a year in daylight the XD is the sensible buy. If you winch regularly, at night, or on your own, the feedback is worth the difference.
What does the live feedback actually show me?
Motor temperature, line load and vehicle battery voltage, on the smart wired remote's display and in the Warn HUB app. Practically, it tells you when to stop and let the motor cool, when the pull you are attempting is heavier than you thought, and when the battery needs the engine to catch up.
Do I get wireless control, or is that extra?
Included. The HUB wireless receiver is built into the XP's control pack. Pair it to the Warn HUB app for control and live status from over 100' away. The smart wired remote is in the box as well, so a dead phone is not a problem.
How much rope, and what type?
80' of 3/8" Spydura Pro synthetic, pre-spooled, with an abrasion sleeve and heat-resistant inner wraps, plus the forged black hawse fairlead and Warn's black Epic hook. Spydura Pro is the higher-spec rope; the heat-resistant wraps protect the line from brake heat during long loaded pulls.
Is 12,000 lb the right size for my truck?
For most full-size pickups, yes. Warn sizes winches at roughly 1.5 times the vehicle's loaded weight, and a half-ton with a steel bumper and a loaded bed, or a 3/4-ton, lands here. Mid-size trucks and stock SUVs are better served by the XP 10-S; 1-ton trucks and camper rigs should be on the XP 14-S.
Can it be mounted behind a factory-style bumper?
Not usually. The XP is 23.89" long and 10.52" tall, a full-height winch built for open winch bumpers and winch plates. If a hidden install is the requirement, the low-profile ZEON XC 12-S is the model designed for it, with the control pack tucked below the tie plate.
