Weather Guard 154 Aluminum Crossover Truck Tool Box, Mid-Size Slim, Gloss Black (154-5-04)

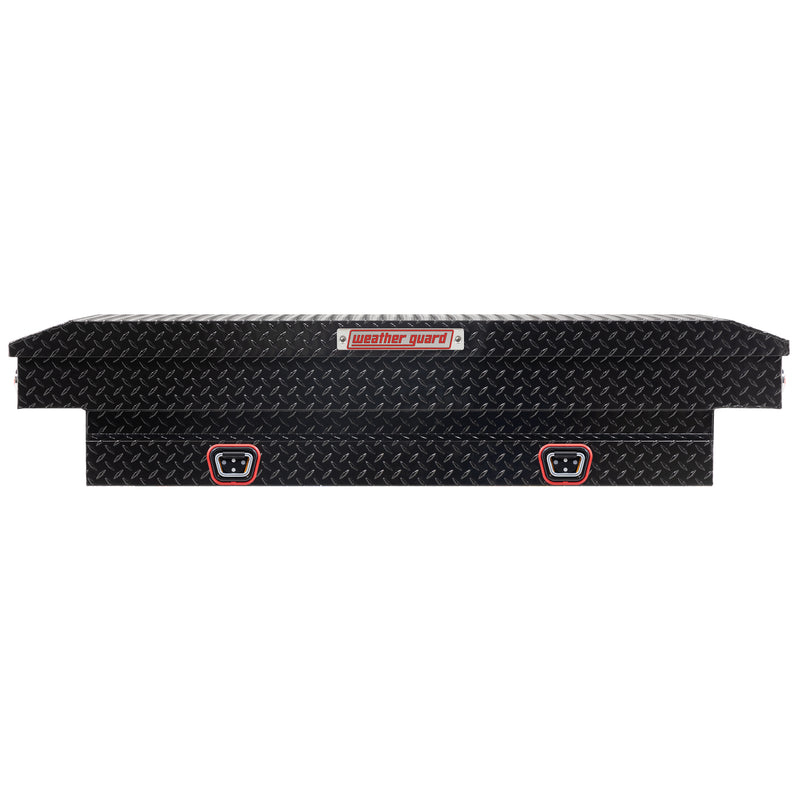

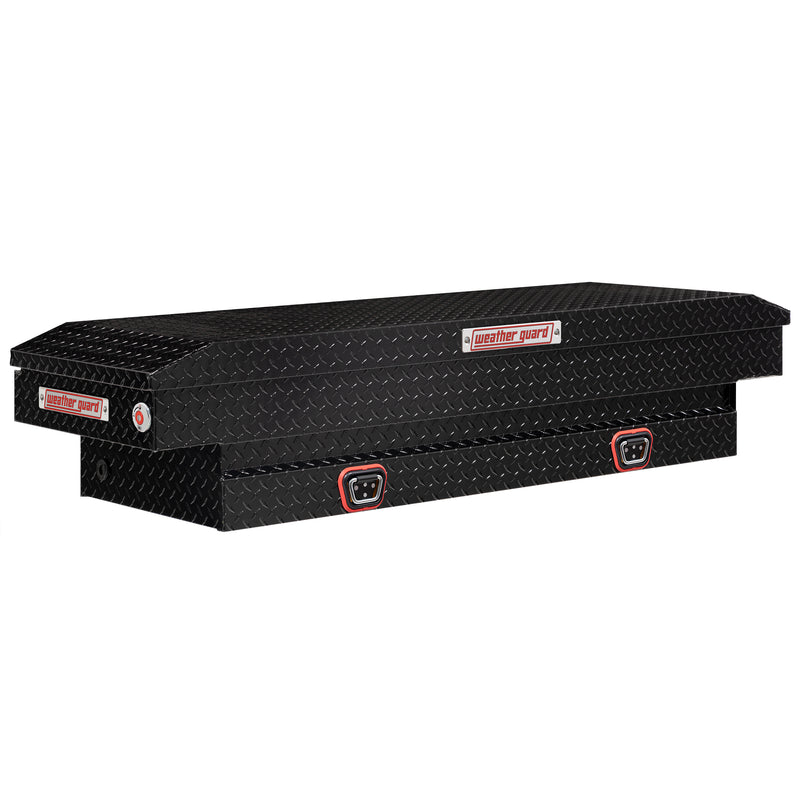

Blacked-out and built to work, the Weather Guard 154-5-04 wears a deep gloss black ARMOR TUF powder coat that matches modern dark trim and wheels. The wet-look shine wipes clean easily and stands up to sun, salt and jobsite abuse. Pair it with black wheels and dark trim for a clean, factory-blacked-out build that still shrugs off the weather. The deep, even shine photographs well too, which is a plus if you show or resell the truck. This compact, slim-profile aluminum saddle box is sized for mid-size trucks and mounts across the bed rails behind the cab, keeping the slimmest, lowest profile in the crossover lineup while holding 7.0ft³ of secured, weather-sealed storage. A five-piece welded aluminum diamond-plate body with a reinforced C-channel front keeps it strong yet light, and a full-perimeter D-shaped weather seal locks out rain and dust.

What's Included:

• 154 Series mid-size slim aluminum crossover (saddle) tool box in gloss black
• 1Key UltraLock push-button locks, keyed alike
• Under-rail mounting clamps and hardware for a no-drill install
• Gas struts with welded strut shields
• Removable divider tray
• Full-perimeter D-shaped weather seal, pre-installed
• Weather Guard installation instructions

Features

Welded Aluminum Diamond-Plate Build
A five-piece welded aluminum diamond-plate body with a reinforced C-channel front panel keeps this box strong yet light. It resists jobsite abuse and road salt without adding the weight of a steel box. This one is finished in gloss black ARMOR TUF powder coat.

Gloss Black ARMOR TUF Finish
A deep gloss black ARMOR TUF powder coat gives the box a sleek, wet-look shine that pairs with blacked-out trim. The tough coating resists scratches, fading and corrosion so it keeps its finish for years.

1Key UltraLock Security

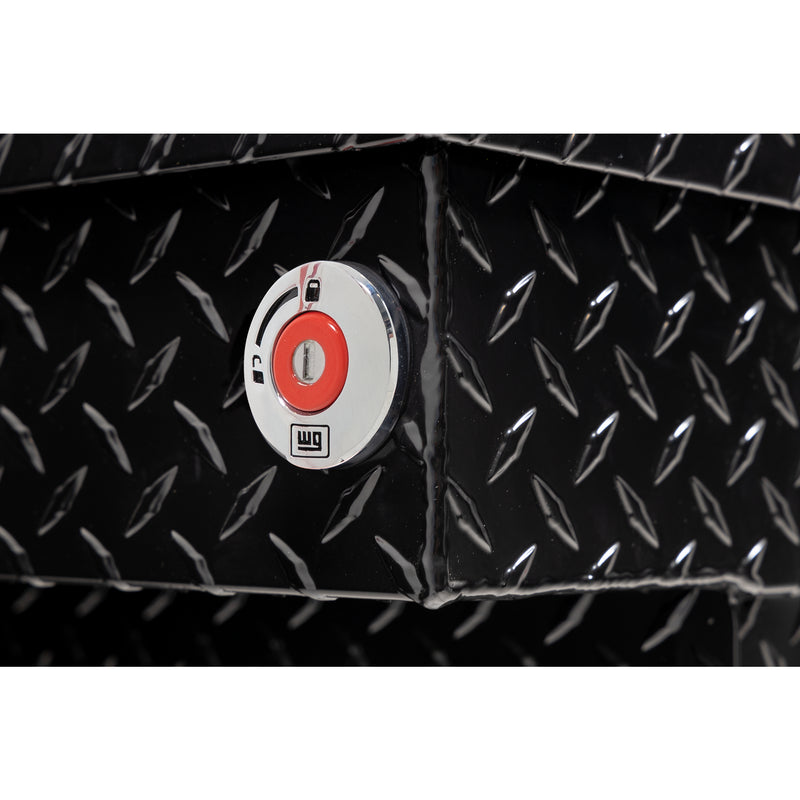

Tamper-resistant push-button locks sit recessed when locked, giving a quick visual cue your gear is secured. The 1Key UltraLock system lets you code multiple boxes on a truck, or a whole fleet, to a single key.

Full-Perimeter Weather Seal

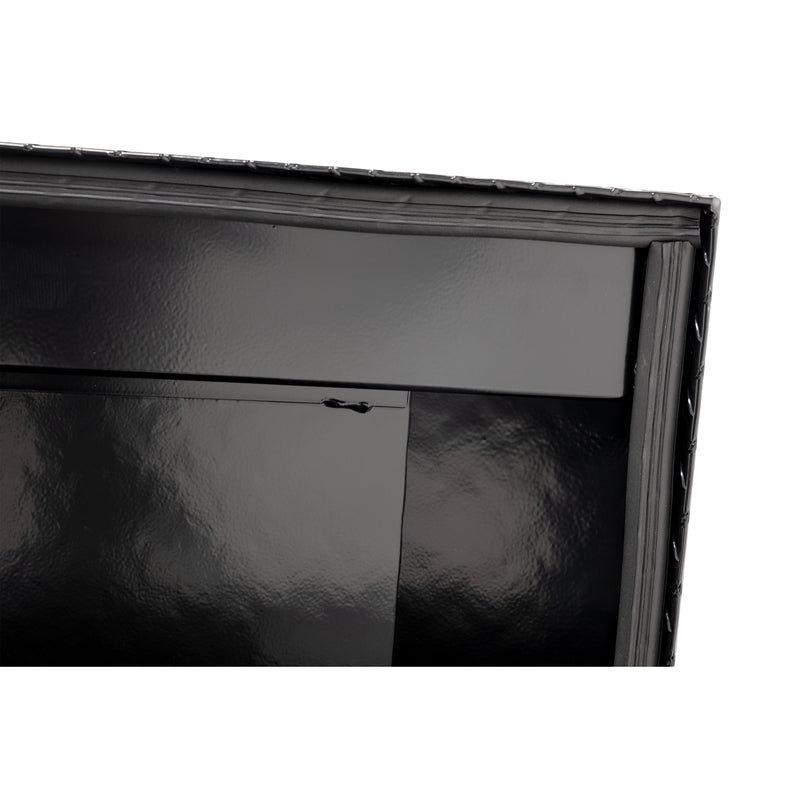

A memory-resistant D-shaped, multi-ridge weather strip runs the entire lid perimeter to keep rain, dust and debris off your tools, so your gear stays dry and ready in any weather.

Reinforced Lid With Gas Struts

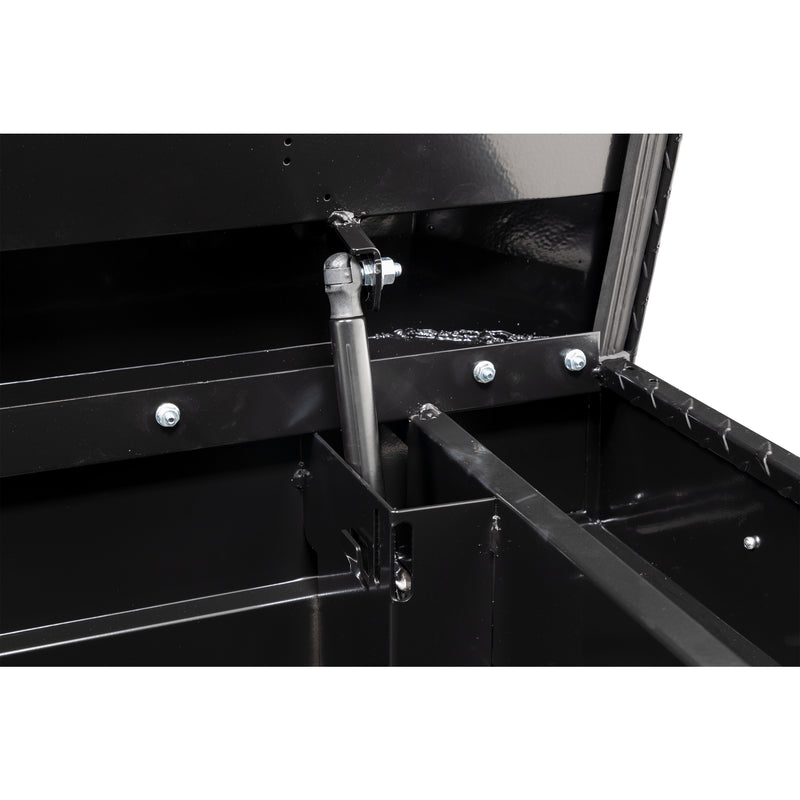

Gas struts hold the reinforced lid open near 90 degrees for easy one-handed access, and welded strut shields protect them from damage. The steel-reinforced lid resists flex and stands up to daily use.

Saddle Fit Across The Bed

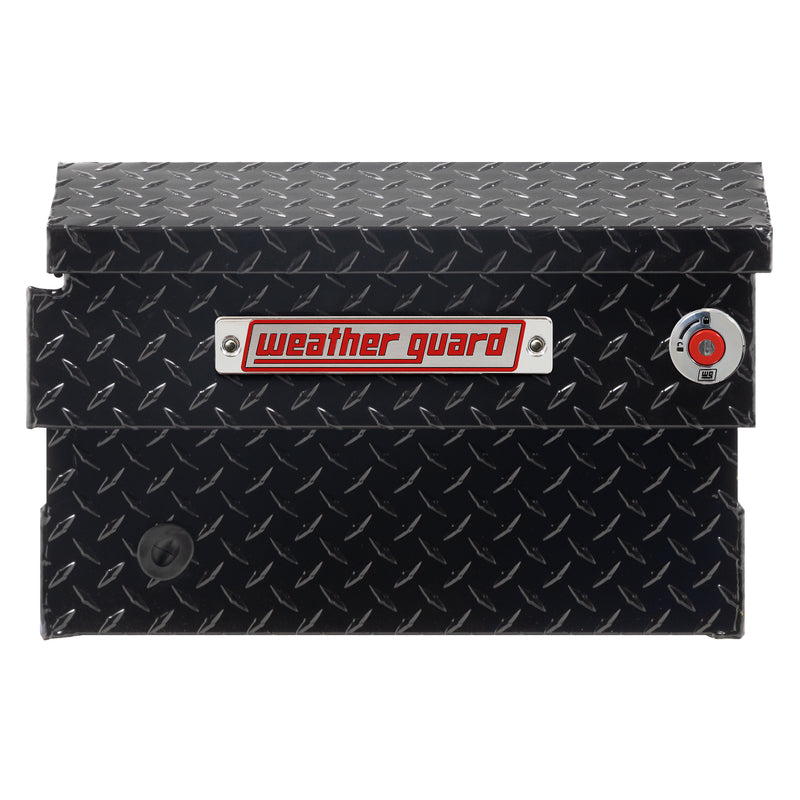

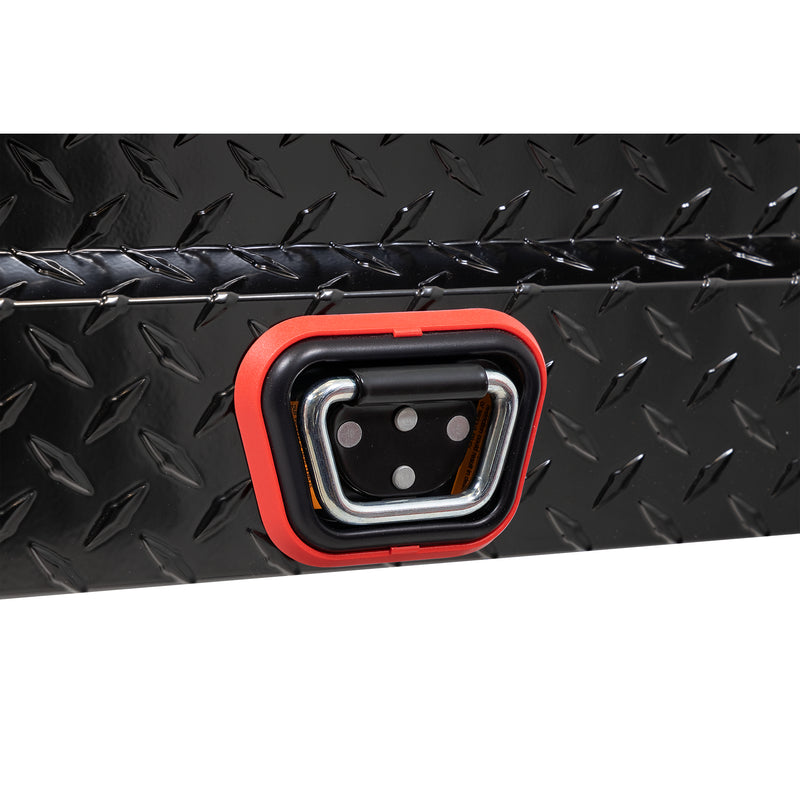

The box straddles the top bed rails behind the cab, keeping your bed floor open for sheet goods and cargo. Enhanced tie-down buckles and 12V PowerSync-ready access round out a box built for working trucks.

Reinforced Body, Automotive-Grade Hardware

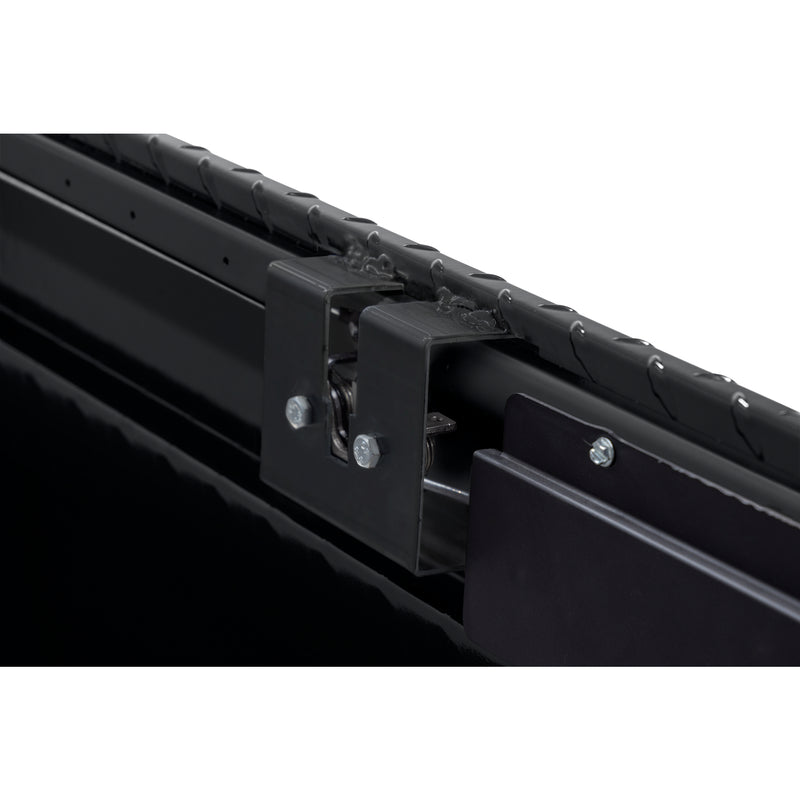

Weather Guard specifies a five-piece welded body for the 154-5-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.

Fitment & Compatibility

Specifications

• Series: 154 Series Aluminum Crossover (Saddle)
• Style: Mid-Size Slim, single-lid saddle/crossover
• Storage Capacity: 7.0ft³

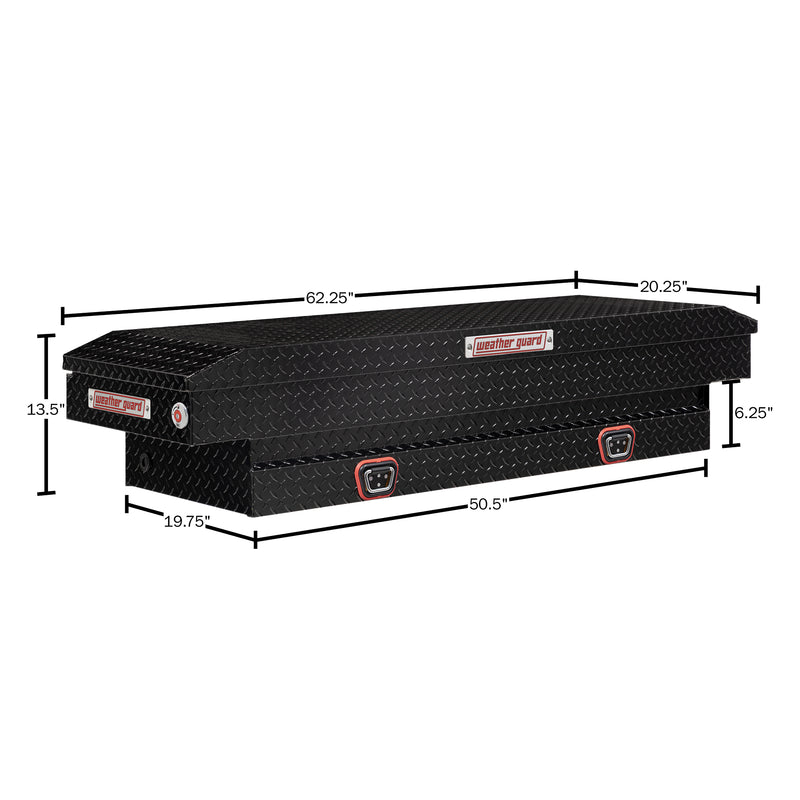

• Exterior Dimensions: 62"L x 20"W x 13"H
• Material: Aluminum diamond plate, five-piece welded body, C-channel reinforced front
• Finish: Gloss Black ARMOR TUF
• Lid: Reinforced, opens near 90 degrees, gas struts with welded strut shields
• Lock: 1Key UltraLock push-button, tamper-resistant, keyed alike
• Weather Seal: Full-perimeter D-shaped, multi-ridge weather strip
• Mounting: Under-rail clamps and hardware included, no drilling required
• Electrical: 12V PowerSync compatible access
• Lid Construction: Heavy Duty C-Channel Reinforced
• Latch Mechanism: Automotive Dual-Stage Rotary
• Weather Strip Profile: Memory Resistant D-Shaped Ribbed

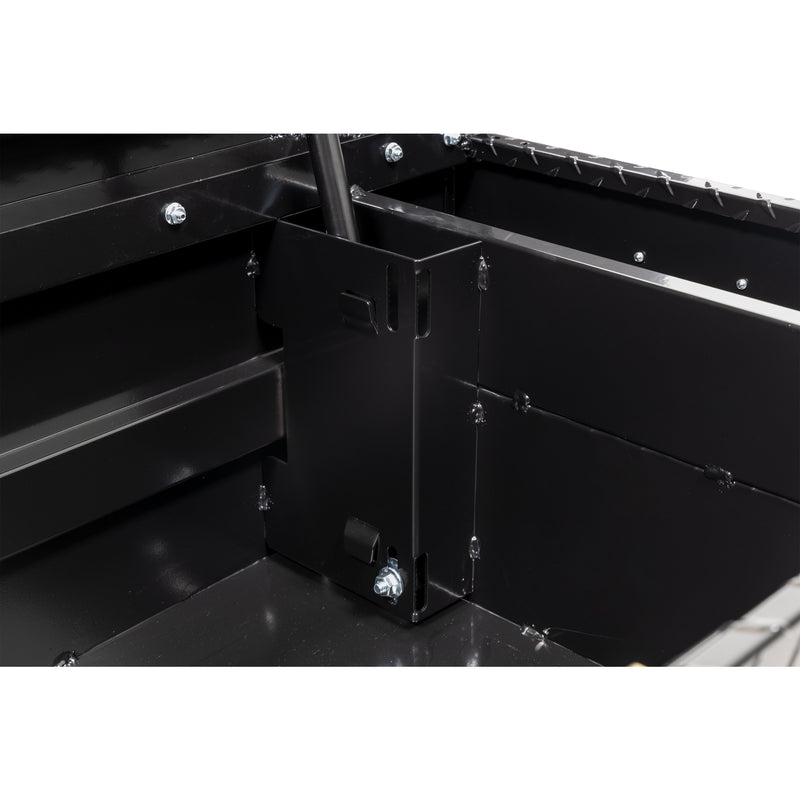

• Gas Strut Protection: Welded Gas Strut Shield
• Bed Style: Flare Side
• Shipping Size: 65"L x 23"W x 14"H, 69.5 lb
• UPC: 783965071727
• Weight: About 65 lb (69.5 lb shipping)
• Warranty: Limited Lifetime
• Made In: USA

Installation

Type: Saddle mount across the top bed rails, clamp-in with no drilling  ·  Time: About 20 to 30 minutes  ·  Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps  ·  Difficulty: Easy, best done with two people for the lift

Set the box across the two bed rails behind the cab and center it left to right. Hook the included clamps under each bed rail and tighten the hardware evenly so the box sits flat and the lid seals all the way around. Because the box is wide, have a second person help lift and hold it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.

Watch the installation walkthrough:

Resources

Everything you need for your Weather Guard 154 Aluminum Crossover Truck Tool Box, Mid-Size Slim, Gloss Black, in one place.

• Official Weather Guard 154 Aluminum Crossover Truck Tool Box, Mid-Size Slim, Gloss Black installation manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and torque specs.

Warranty, Shipping & Returns

Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.

Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
