Finished in fleet-friendly brite white ARMOR TUF powder coat, the Weather Guard 156-3-04 reflects heat to help keep contents cooler and is easy to match to a white work truck or fleet. The tough coating resists rust, chips and fading season after season. It is the natural match for a white commercial fleet or any contractor who wants maximum visibility. On hot days a white box and its contents also run noticeably cooler than a dark one baking in the sun. This compact, slim-profile steel saddle box is sized for mid-size trucks and mounts across the bed rails behind the cab, keeping a low lid line with 7.0ft³ of heavy-duty, weather-sealed storage. A heavy-duty formed steel body with a reinforced lid stands up to jobsite abuse, and a full-perimeter D-shaped weather seal locks out rain and dust.
What's Included:
156 Series mid-size slim steel crossover (saddle) tool box in brite white
1Key UltraLock push-button locks, keyed alike
Under-rail mounting clamps and hardware for a no-drill install
Heavy-Duty Steel Build A heavy-duty formed steel body with a reinforced lid and front panel stands up to years of loading, weather and road abuse. Steel gives this box maximum strength and a solid, secure feel. This one is finished in brite white ARMOR TUF powder coat.
Brite White ARMOR TUF Finish A brite white ARMOR TUF powder coat reflects sunlight to help keep the box and its contents cooler, and it is easy to color-match to a white work-truck fleet. The coating resists rust, chips and fading in tough conditions.

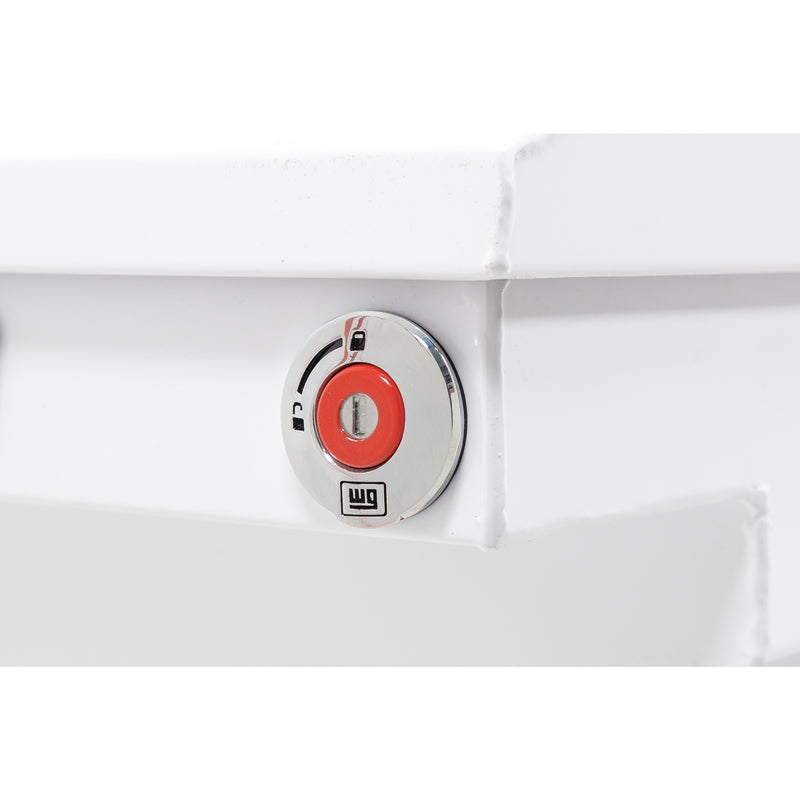

1Key UltraLock Security Tamper-resistant push-button locks sit recessed when locked, giving a quick visual cue your gear is secured. The 1Key UltraLock system lets you code multiple boxes on a truck, or a whole fleet, to a single key.

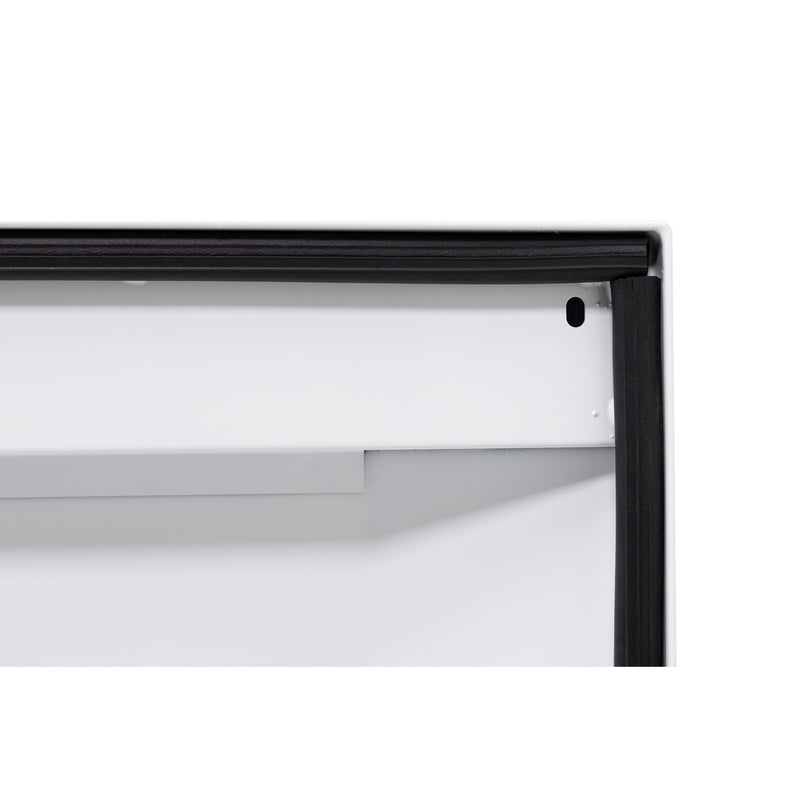

Full-Perimeter Weather Seal A memory-resistant D-shaped, multi-ridge weather strip runs the entire lid perimeter to keep rain, dust and debris off your tools, so your gear stays dry and ready in any weather.

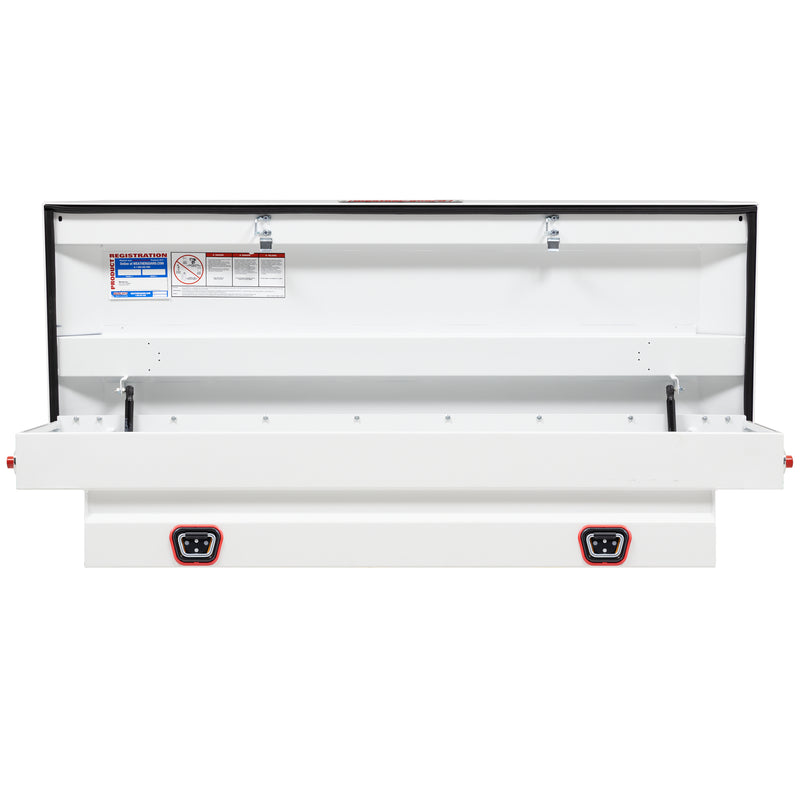

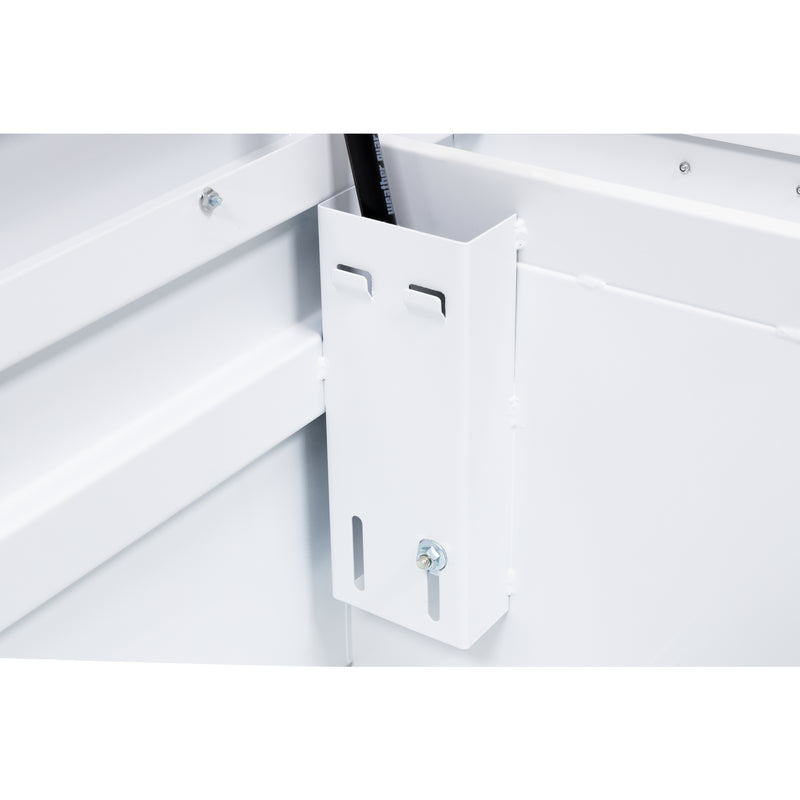

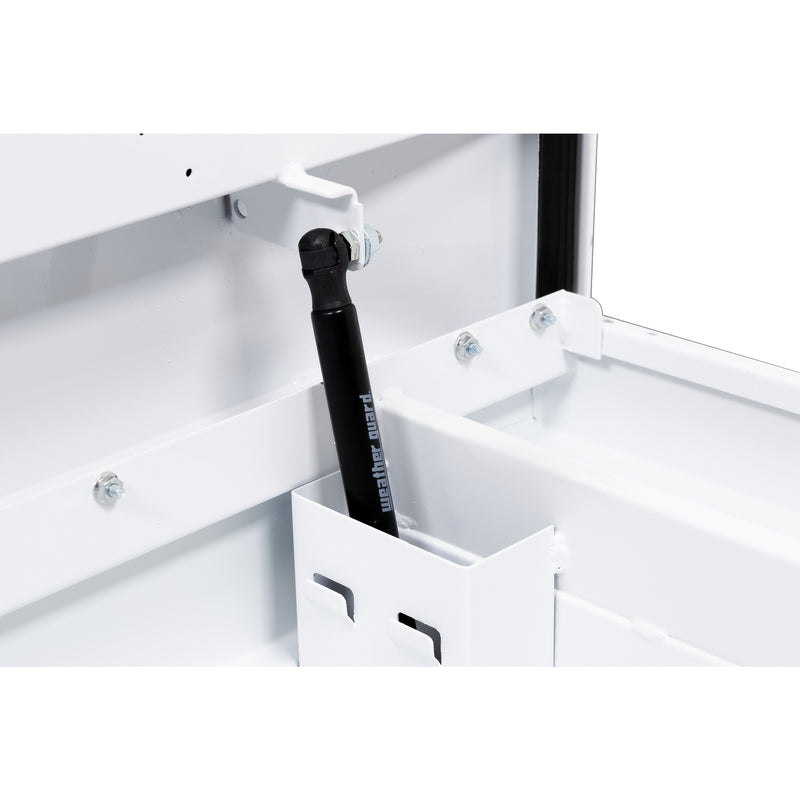

Reinforced Lid With Gas Struts Gas struts hold the reinforced lid open near 90 degrees for easy one-handed access, and welded strut shields protect them from damage. The steel-reinforced lid resists flex and stands up to daily use.

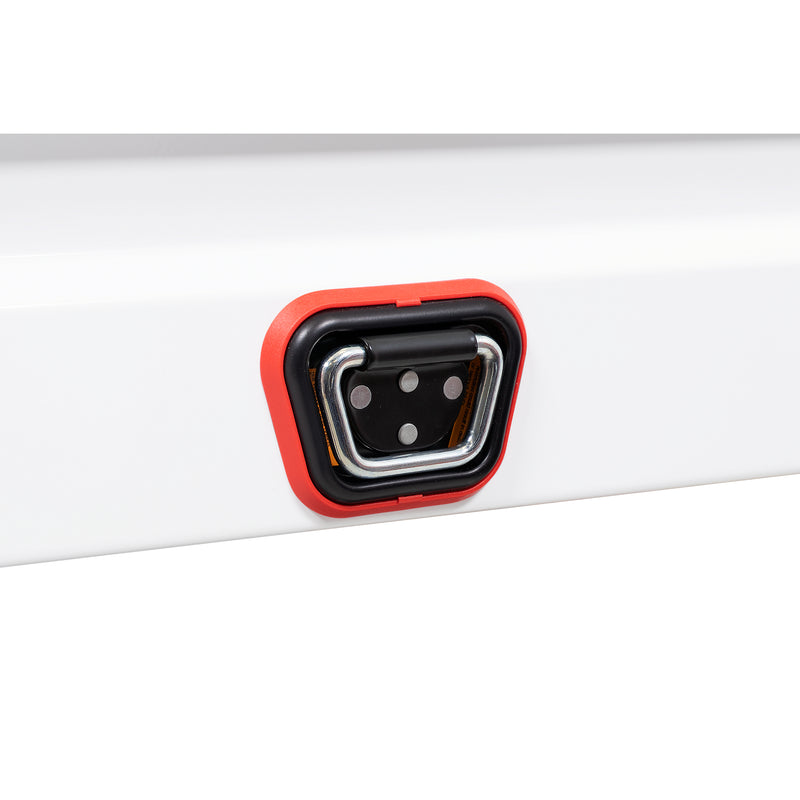

Saddle Fit Across The Bed The box straddles the top bed rails behind the cab, keeping your bed floor open for sheet goods and cargo. Enhanced tie-down buckles and 12V PowerSync-ready access round out a box built for working trucks.

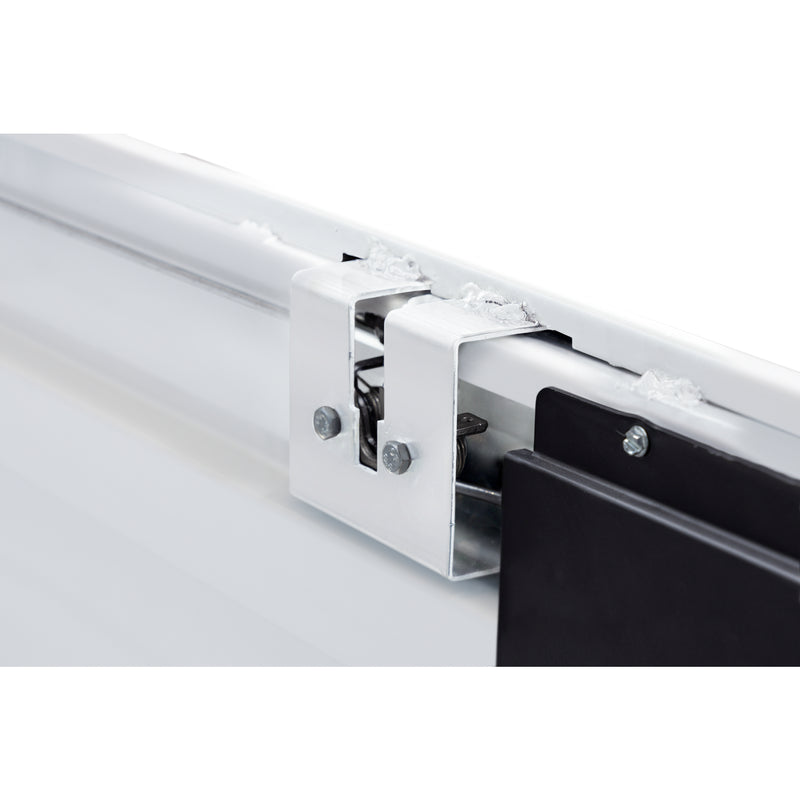

Reinforced Body, Automotive-Grade Hardware Weather Guard specifies a five-piece welded body for the 156-3-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.
Fitment & Compatibility
Truck Class
Example Trucks
Fit
Mid-size
Colorado/Canyon, Ranger, Tacoma, Frontier, Dakota
✓ Yes, designed for mid-size beds
Full-size 1/2-ton and up
F-150, Silverado/Sierra 1500 to 3500, Ram 1500 to 3500
● Measure first, this compact box is shorter than a full-size crossover
Compact unibody
Maverick, Santa Cruz
✗ Not recommended, verify bed rail width first
Fit guidance: This is a compact, mid-size crossover box that mounts across the two bed rails just behind the cab, so it straddles the bed and leaves the bed floor open. At about 62" wide it is sized for mid-size pickups such as the Chevrolet Colorado, GMC Canyon, Ford Ranger, Toyota Tacoma and Nissan Frontier. Because it sits on the rails rather than the bed floor, it works with short and long mid-size beds. Always measure your bed rail width and check clearance behind the cab before ordering.
Specifications
Series: 156 Series Steel Crossover (Saddle)
Style: Mid-Size Slim, single-lid saddle/crossover
Storage Capacity: 7.0ft³

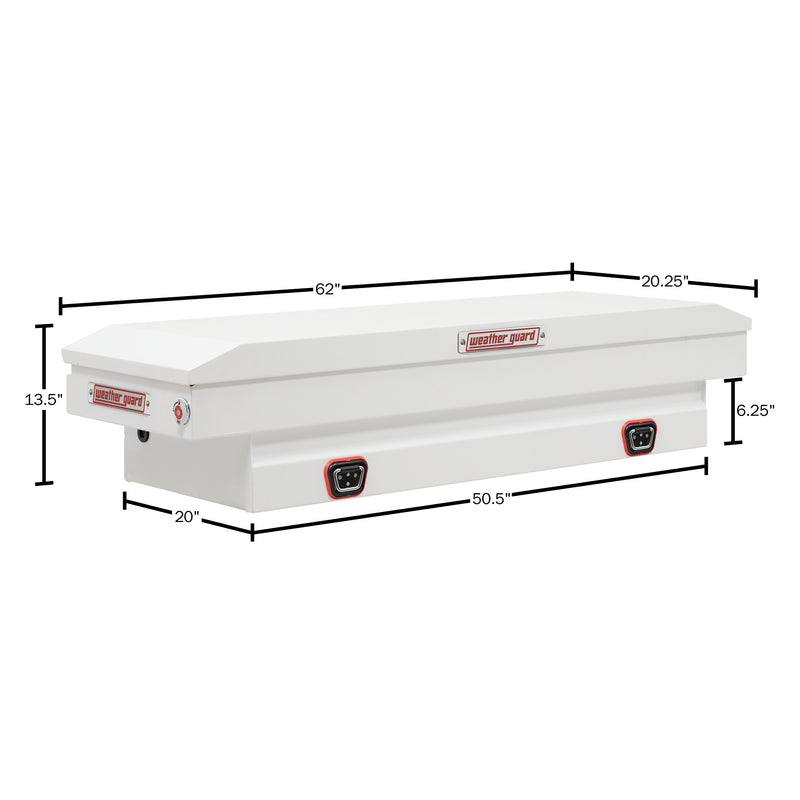

Exterior Dimensions: 62"L x 20"W x 13"H
Material: Heavy-duty formed steel, reinforced lid and front
Finish: Brite White ARMOR TUF
Lid: Reinforced, opens near 90 degrees, gas struts with welded strut shields
Type: Saddle mount across the top bed rails, clamp-in with no drilling · Time: About 20 to 30 minutes · Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps · Difficulty: Easy, best done with two people for the lift
Set the box across the two bed rails behind the cab and center it left to right. Hook the included clamps under each bed rail and tighten the hardware evenly so the box sits flat and the lid seals all the way around. Because the box is wide, have a second person help lift and hold it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.
Watch the installation walkthrough:
Resources
Everything you need for your Weather Guard 156 Steel Crossover Truck Tool Box, Mid-Size Slim, Brite White, in one place.
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWeather Guard 156 Steel Crossover Truck Tool Box, Mid-Size Slim, Brite White (156-3-04)
Weather Guard's official hardware video zooms in on the clamp and bolt kit that secures its truck boxes to the bed rails without drilling. It is a helpful close-up companion to the full box install and shows how the mounting brackets hook under the rail lip and tighten down. Use it alongside the printed instructions that ship with the box.
How the 1Key UltraLock System Works
A step-by-step look from Weather Guard at what the 1Key UltraLock actually does: how the cylinder accepts a new code, why the red push button retracts when the box is locked, and how the latch pulls the lid down against the seal. Worth two minutes before you set the box up.
How to Code Your 1Key UltraLock Lock
Weather Guard's official walkthrough for coding the lock so this box opens with the same key as the rest of your Weather Guard boxes. Follow it once when the box arrives and you can stop carrying a separate key for every lid on the truck.
Frequently Asked Questions
Straight answers on specs, fit and support
Will the 156-3-04 fit my truck?
This is a compact, mid-size crossover box about 62" wide, so it fits mid-size pickups such as the Chevrolet Colorado, GMC Canyon, Ford Ranger, Toyota Tacoma and Nissan Frontier. It mounts across the top bed rails behind the cab. Measure your bed rail width and check clearance behind the cab first, and note it is shorter than a full-size crossover box.
Does it require drilling to install?
No. The box ships with under-rail clamps and hardware, so it mounts without drilling into your truck. Most installs take about 20 to 30 minutes and go easiest with two people to lift and hold the box while you clamp it down.
How secure is this Weather Guard box?
It uses the Weather Guard 1Key UltraLock system with tamper-resistant push-button locks that sit recessed when locked, so you get a quick visual cue your gear is secured. The 1Key design also lets you code multiple boxes on a truck or a whole fleet to a single key.
Does the white finish stay clean and hold up over time?
The brite white ARMOR TUF coating resists rust, chips and yellowing, and the full-perimeter D-shaped weather seal keeps the inside dry. White shows road grime sooner than dark colors, but it wipes clean quickly and reflects heat to keep contents cooler.
Why choose the white finish over black or aluminum?
Brite white reflects heat instead of absorbing it, so tools and adhesives inside stay a little cooler on hot days, and it is the easy pick for matching a white work-truck or van fleet. The ARMOR TUF coating keeps it looking sharp and rust-free.
What is it made of and how big is it?
It is built from heavy-duty formed steel with a brite white ARMOR TUF powder coat. The exterior measures 62"L x 20"W x 13"H with 7.0ft³ of storage, and it ships at about 117 lb, so it is heavy-duty and built to last.
