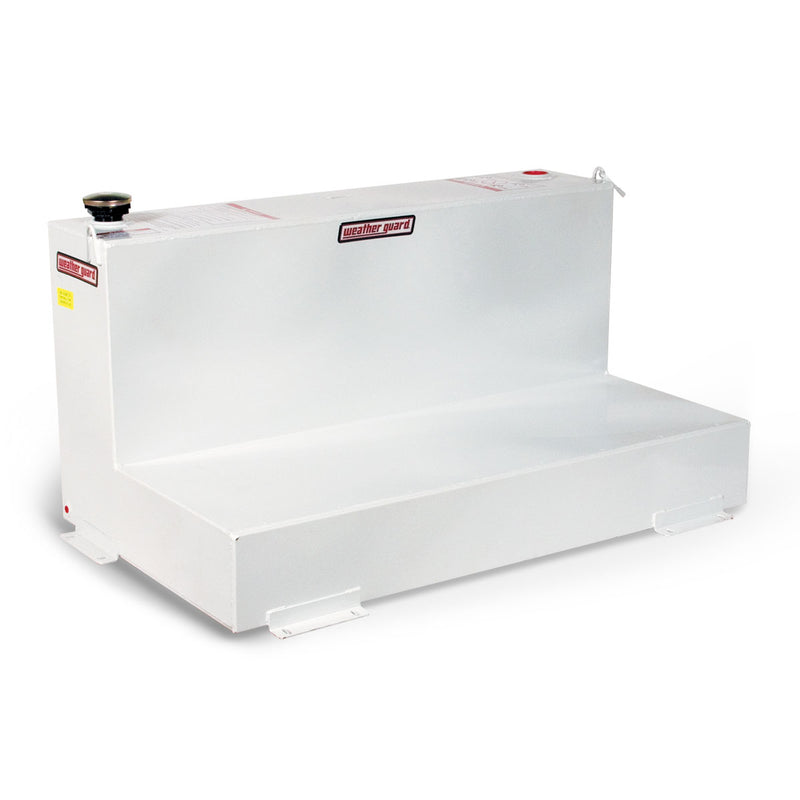

Go longer between fills with the Weather Guard 354-3-02 transfer tank. This 90 gallon L-shape tank is one of the biggest in the L-shape line, giving crews that burn a lot of diesel real range without a trip to the pump. It is built from 12-gauge steel with a brite white ARMOR TUF powder coat, and the stepped L-shape sits against the bulkhead of a full-size bed so it pairs cleanly with Weather Guard Saddle and Gull Wing boxes.
What's Included:
- 90 gallon L-shape steel transfer tank
- Vented, lockable filler cap
- Steel bed-plate mounting hardware with rubber isolation bushings
- Reinforced filler neck and 2 in NPT pump port opening
- Weather Guard installation instructions
- Transfer pump, hose, nozzle and filter are sold separately
Features
Heavy 12-Gauge Steel Build
Every panel is formed from 12-gauge steel and joined with an overlapping edge design that reinforces the corners. It is built to survive the vibration, weight and rough handling that come with life in a work truck bed.
Brite White ARMOR TUF Finish
A brite white ARMOR TUF powder coat wraps the whole tank to fight rust, fading and chips. It shrugs off diesel spills, road salt and sun so the tank keeps looking sharp in the bed.
Baffled For Stable Hauling
Interior baffles slow the fuel down as you drive, so a full tank does not slosh and shove the truck around. Less fluid motion also means less stress on the tank over the long haul.
Vented, Lockable Fill Cap
The filler cap vents to prevent pressure build-up as diesel warms and moves, then locks to help keep your fuel secure on the jobsite or overnight.
Ready For Your Transfer Pump

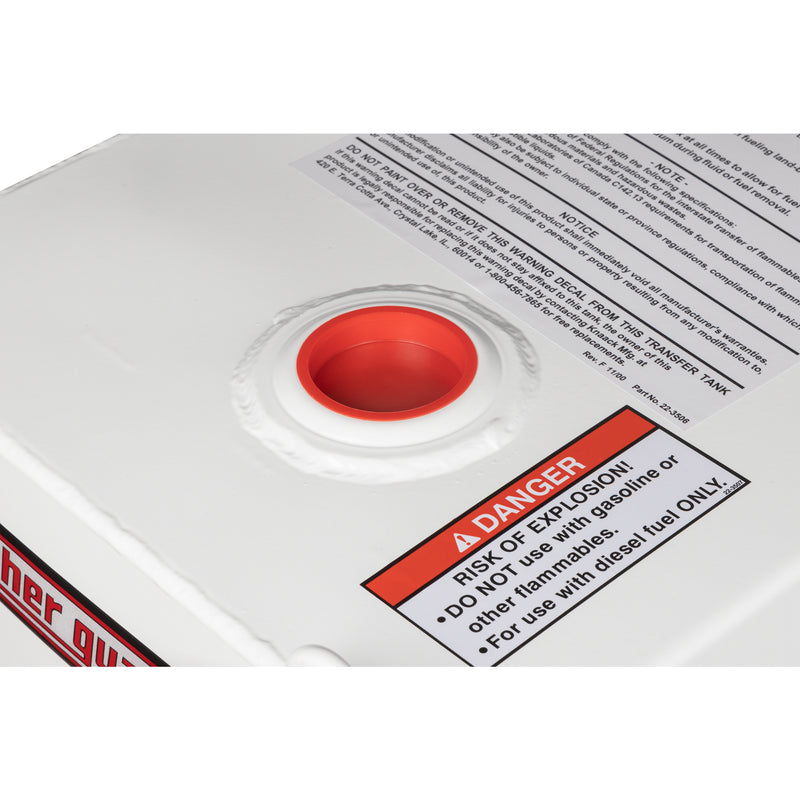

A 2 in standard NPT port accepts most 12V diesel transfer pumps up to 30 pounds, and a 3/8" drain port makes service and draining easy. Add a pump, hose and filter to fuel equipment right from the bed.
Full-Size L-Shape Bed Fit
The long L-shape footprint sits against the bulkhead and pairs with Weather Guard Saddle and Gull Wing boxes, so a big fuel supply and locked storage share the bed. Rubber isolation bushings on the steel bed plate cushion the mount and protect your truck.
Fitment & Compatibility
| Truck Class |
Example Trucks |
Fit |
| Full-size 3/4-ton and 1-ton |
F-250/F-350, RAM 2500/3500, Silverado/Sierra 2500HD/3500HD |
✓ Yes, ideal application |
| Full-size 1/2-ton |
F-150, RAM 1500, Silverado/Sierra 1500 |
✓ Yes, confirm bed space and payload |
| Mid-size and compact |
Ranger, Colorado, Tacoma, Frontier |
✗ Not recommended, verify bed space first |
Fit guidance: This 90 gallon L-shape tank is one of the larger tanks in the line and is sized for full-size pickups. The stepped L-shape sits crosswise against the front bulkhead and needs about 52" of width, leaving the rest of the bed floor open. It pairs with Weather Guard Saddle and Gull Wing boxes. A full 90 gallon tank is heavy, so confirm your payload and measure your bed and wheel-well clearance before ordering. It is not recommended for mid-size or compact trucks.
Specifications
-
Capacity: 90 gallons
-
Shape: L-Shape
-
Material: 12-gauge steel panels, overlapping edge design
-
Finish: Brite White ARMOR TUF powder coat
-

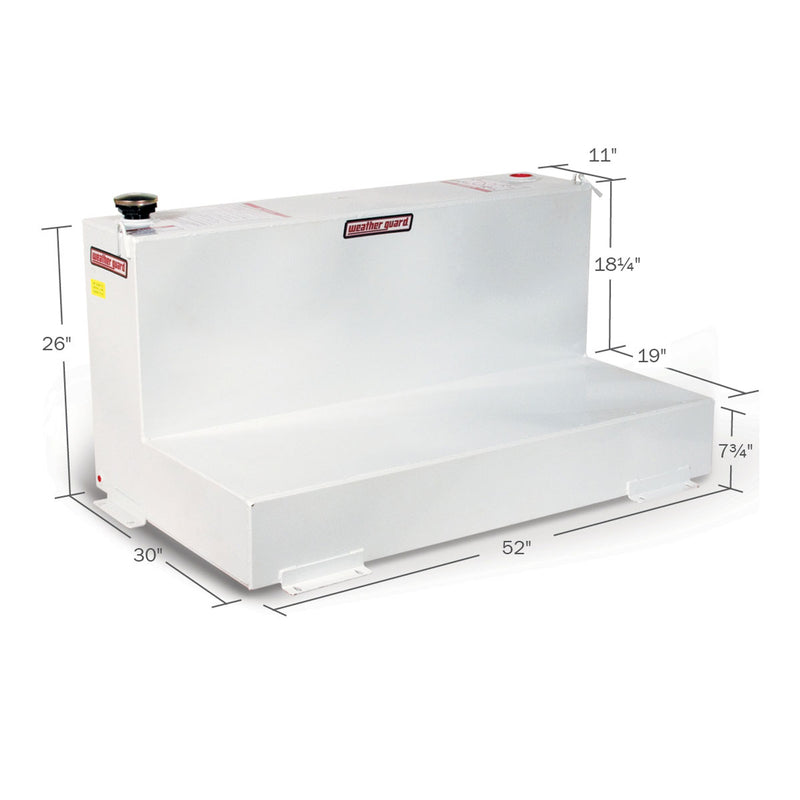

Exterior Dimensions: 52"L x 30"W x 26"H
-
Baffled: Yes, interior baffles reduce fuel slosh
-
Filler Cap: Vented and lockable
-
Fittings and Ports: 2 in standard NPT pump port, 3/8" drain port
-
Pump Compatibility: Accepts most 12V transfer pumps up to 30 lb (Severe Series tank required for heavier pumps)
-
Approved Fluids: Diesel and hydraulic fluid only, not for gasoline or flammables
-
Weight: About 185 lb (shipping weight)
-

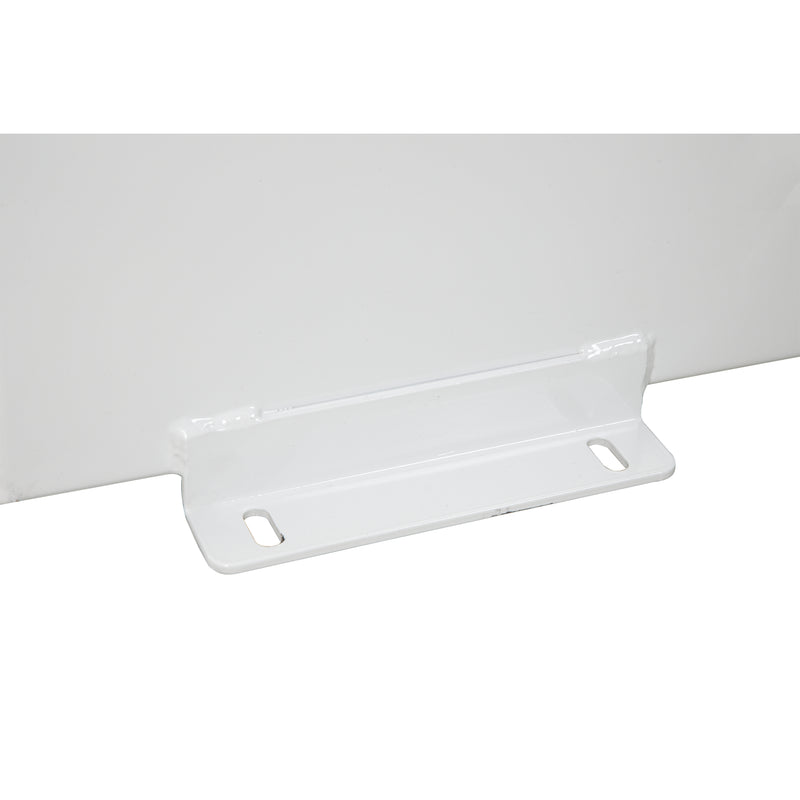

Mounting: Steel bed plate with rubber isolation bushings, hardware included
-
Warranty: Limited Lifetime
-
Made In: USA
-
Mounting Method: Bolt-through bed mount, drilling required
Installation
Type: Bed-mount, bolt-in · Time: About 1 to 2 hours · Tools: Drill and bits, wrench or socket set, tape measure, marker, and zinc-rich primer to seal any drilled holes · Difficulty: Moderate, DIY-friendly with basic hand tools
Set the tank in place against the bed bulkhead, mark and drill the mounting points, then bolt it down through the steel bed plate using the supplied rubber isolation bushings so the tank is cushioned from the bed. Coat any drilled holes with zinc-rich primer to prevent rust, especially on aluminum beds. Install the filler neck and vented cap, then add your transfer pump, hose and filter. Follow the Weather Guard installation instructions for exact hardware placement.
Resources
Everything you need for your Weather Guard 90 Gallon L-Shape Steel Transfer Tank, Full-Size, Brite White, in one place.
Warranty, Shipping & Returns
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
Compliance. The Weather Guard 90 gallon L-Shape is a bed-mounted transfer and storage tank rated for diesel fuel and hydraulic fluid only. Weather Guard's own safety labeling on the tank calls out diesel use only and warns against filling it with gasoline or any other flammable liquid, which creates an explosion risk in a vented steel transfer tank. It is not designed or approved to be plumbed into a vehicle's primary fuel system as an auxiliary supply tank. Fuel is moved with a 12V transfer pump through the 2 in NPT port rather than by gravity feed, and Weather Guard recommends running a filter when pumping. Weather Guard does not publish a DOT approval number for these transfer tanks, so treat it as a transfer and storage tank, not a DOT-certified auxiliary fuel tank. Rules for hauling and dispensing fuel vary by state and by the quantity carried, so the buyer is responsible for confirming legal, compliant use. Gasoline is never approved for this steel tank and should not be stored or transferred in it.
