The 2024 to 2026 Ford Ranger comes with one bed: Ford's 4.97-ft box on the SuperCrew, 59.6 in (4 ft 11.6 in) long at the floor and 48.2 in between the wheel wells. The 2019 to 2023 Ranger had two, according to the published 2019 Ranger specs: a 5-ft box (61.0 in at the floor) on the SuperCrew and a 6-ft box (72.8 in) on the SuperCab. The least expensive of the four covers below is the Extang Trifecta 2.0, from $519.99 for a 2019 to 2023 bed.
Covers do not use Ford's names. Cover makers list the 2019 to 2023 beds as 5'1" and 6'1", and the 2024 to 2026 bed as 5' or 5'1", depending on the brand. Those labels matter more than the cab name when you order.
Ranger bed dimensions by generation
The 2024 to 2026 numbers are from Ford's 2025 and 2026 sheets and the 2019 to 2023 numbers are the published 2019 Ranger specs. "Not published" means the source does not give it.
| Years | Cab | Ford's bed name | Length at floor | Length at top of rail | Width between wheel wells | Depth | Volume |
|---|---|---|---|---|---|---|---|
| 2019 to 2023 (published 2019 specs) | SuperCrew | 5-ft box | 61.0 in | Not published | 44.8 in | Not published | 43.3 cu ft |
| 2019 to 2023 (published 2019 specs) | SuperCab | 6-ft box | 72.8 in | Not published | 44.8 in | Not published | 51.8 cu ft |
| 2024 to 2026 (2025 and 2026 sheets) | SuperCrew | 4.97-ft box | 59.6 in | 57.9 in | 48.2 in | 20.8 in | 43.5 cu ft |
For the newer bed, Ford's 2025 sheet repeats the 2026 figures, both give a maximum inside width of 62.4 in, and the 2026 sheet adds an opening width at the floor of 53.7 in.
2024 to 2026 Ranger: one 4.97-ft box
Ford's 2025 and 2026 sheets list a single box, the 4.97-ft box on the SuperCrew. At the floor it runs 59.6 in and at the top of the rail 57.9 in. The width between the wheel wells grew to 48.2 in, up from 44.8 in on the 2019 specs.
Cover makers split on this bed: in our catalog 37 listings for 2024 to 2026 call it 5' and 43 call it 5'1", the same label the 2019 to 2023 SuperCrew uses. So the label alone does not tell you which generation a cover is for. Choose by year and bed in the vehicle selector. Of the four covers below, the 2024 and 2025 parts run from $519.99 for the Extang Trifecta 2.0 to $2,249.99 for the RetraxPRO MX. For a 2026 truck, the BAKFlip MX4 and BAK Revolver X4s both list a part.
The Ranger Raptor shares this box: Ford's 2026 sheet lists one box for every trim, Raptor included, and the 2025 Raptor sheet gives the same 48.2 in between the wheel wells. Our catalog lists Raptor parts separately, so pick Ranger Raptor in the selector.
2019 to 2023 Ranger: 5-ft SuperCrew and 6-ft SuperCab
The published 2019 Ranger specs pair the 5-ft box with the SuperCrew and the 6-ft box with the SuperCab. The SuperCab box is about 11.8 in longer at the floor than the SuperCrew box, and both are 44.8 in between the wheel wells.
On the 2019 to 2023 trucks the labels sit close to the floor length: 61.0 in is about 5 ft 1 in and 72.8 in about 6 ft 1 in, so these beds are listed as 5'1" and 6'1". Ford calls the long one a 6-ft box, but in our catalog the 6' label belongs to the 1983 to 2011 Ranger, so a cover listed as 6' is not the 2019 to 2023 SuperCab part. The BAKFlip MX4 is $1,249.99 for the 5'1" bed against $1,299.99 for the 6'1" bed.
Older Rangers: 1983 to 2011
Our fitment data lists Rangers from 1983 to 2011 under a 6' label. We give no floor or wheel well figures for those trucks. Several covers in our range list a 6' part for some of those years, such as the TruXedo TruXport and BAKFlip G2. The Extang Trifecta 2.0, for example, is $469.99 for a 1983 to 2011 truck.
Why the cover size is not Ford's size
Ford names its boxes by rough length (5-ft, 6-ft and now 4.97-ft), and cover makers use their own labels in feet and inches. Three differences cause most mix-ups:
- Ford's 5-ft box on the 2019 to 2023 SuperCrew is a 5'1" cover bed.
- Ford's 4.97-ft box on the 2024 to 2026 SuperCrew is listed as 5' by some covers (the BAK Revolver X4s, Access Vanish and Roll-N-Lock A-Series) and as 5'1" by others (the BAKFlip MX4, RetraxPRO MX and Extang Trifecta 2.0).
- Our catalog counts 85 Ranger listings at 5'1" (42 for 2019 to 2023 and 43 for 2024 to 2026), 37 at 5' (all 2024 to 2026), 31 at 6'1" (all 2019 to 2023) and 16 at 6' (all 1983 to 2011).
A 2019 to 2023 cover does not swap onto a 2024 to 2026 truck, so name your truck by its years first, then by bed.
How to check your bed
- Empty the bed and latch the tailgate.
- Stretch a tape over the side rail, from the inside of the bulkhead to the inside of the shut tailgate.
- Match the reading to the nearest size for your years: 5'1" or 6'1" for a 2019 to 2023 Ranger. For a 2024 to 2026 one, brands list the same bed as 5' or 5'1", so choose by year in the vehicle selector.
Our guide to measuring a truck bed for a tonneau cover has the long version. If you also drive a full-size Ford, the F-150 bed size guide works the same way.
Comparing trucks? Our truck bed size chart puts the Ranger beds side by side with other pickups.
Covers that fit a Ranger bed
Here are four covers from our range, one of each main type, that fit both 2019 to 2023 beds and the 2024 to 2025 bed, each priced for the exact bed and years. See all of them on the Ford Ranger tonneau covers page or browse every tonneau cover we carry. To compare types, read our guide to truck bed cover types.
Hard folding

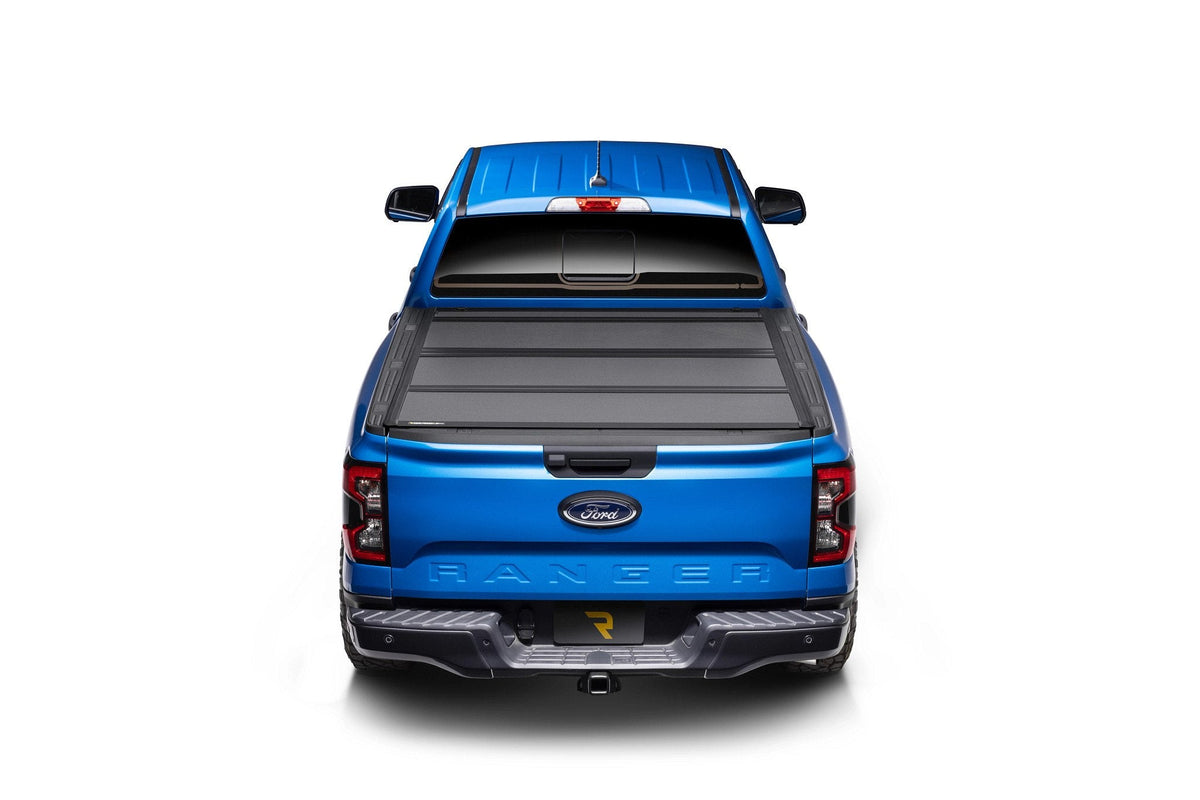

BAKFlip MX4 Hard Folding Tonneau Cover
From $1,249.99 · Folds flat to the cab for the full bed, rated 400 lb evenly spread, with a clamp-on install of about 30 minutes.
The BAKFlip MX4 carries a 5-year warranty and fits the 5'1" and 6'1" beds for 2019 to 2023 plus the 5'1" bed for 2024 to 2026. One owner wrote:
“Recently purchased a new MX4 for my 2021 Ranger. The cover looks great and is the most functional cover I have ever had.”
BAKFlip MX4 owner · 5 out of 5 stars
Skip it if a dry bed is your first concern: some owners report water getting in around the edges and between the panels, and one found the fold-open struts shaking loose from their holders.
Retractable
RetraxPRO MX Retractable Tonneau Cover
From $2,349.99 · Slides into a canister at the cab end, holds open at any position and has a key-lockable handle.
The RetraxPRO MX is rated for up to 500 lb evenly spread and carries a limited lifetime warranty. It is the most expensive of the four. A Ranger owner left this note:
“Very nice cover, the only complaint I have is the side rails don't sit level on the Ranger ridged side bed rails,tried to get level to no avail, but cover still works fine!”
RetraxPRO MX owner · 5 out of 5 stars
Skip it if you want a hard cover at a lower price, or if you cannot get a second pair of hands for the install. Some owners also report water at the drain tubes, and one had the lock freeze after installing in the rain.
Hard roll-up
BAK Revolver X4s Hard Roll-Up Tonneau Cover
From $1,479.99 · Rolls forward to a spool at the bulkhead and clamps to the factory rails.
The Revolver X4s is a 2019 to 2026 fit for the Ranger (5'1" and 6'1" on the older bed, 5' or 5'1" on the newer one, depending on the listing) and is rated at 400 lb evenly spread. A 2022 Ranger owner wrote:
“It works better than any cover I've used in the past on different trucks.”
BAK Revolver X4s owner · 4 out of 5 stars
Skip it if you want a trouble-free install: the same owner had to glue the cab-end seals, and a 2024 Ranger owner reported a rail clamp bolt deforming at the torque in the instructions.
Soft folding
Extang Trifecta 2.0 Soft Folding Tonneau Cover
From $519.99 · Vinyl tarp over an aluminum frame, no drilling, installs in under an hour.
The Trifecta 2.0 is the least expensive of the four, is covered by a limited lifetime warranty and fits the 5'1" and 6'1" beds for 2019 to 2023 plus the 5'1" bed for 2024 and 2025. A 2025 Ranger owner wrote:
“Fits well. Shortly after installing, I got caught in heaving rain storms. I looked inside the bed afterwards and it was completely dry inside.”
Extang Trifecta 2.0 owner · 5 out of 5 stars
Skip it if you want a hard shell to lean on: the soft top is not rated like the hard covers above, and a 2-star owner called it light duty. Like any soft cover it is weather-resistant rather than watertight, and some owners report leaks or a tarp that flaps at speed.
What fits in the bed
Plywood sheets are 48 in across, and the 2024 to 2026 bed is 48.2 in between the wheel wells, so a sheet lies flat with 0.2 in to spare. The 2019 to 2023 beds are 44.8 in, so a full sheet rests on top of the wheel wells or must be cut down.
Length is just as limited. A full 8-ft sheet or longer load needs the tailgate down. A dirt bike or any load longer than the floor rides with the tailgate down. Neither Ford sheet lists a tailgate-down length, so measure from the bulkhead to the lowered tailgate before you buy a ramp.
Ford's 2026 sheet puts the open tailgate 34.7 in off the ground (36.1 in on the Raptor) and lists maximum payload from 1,767 lb (2.3L 4x2) down to 1,373 lb (Raptor).
Frequently asked questions
Can you get a Ford Ranger with a 6 ft bed?
On the 2019 to 2023 Ranger, yes. The published 2019 Ranger specs list a 6-ft box (72.8 in at the floor) on the SuperCab. Ford's 2025 and 2026 sheets list only the 4.97-ft box on the SuperCrew. Our catalog also lists covers for a 6' bed on 1983 to 2011 Rangers, which is a different part from the 2019 to 2023 SuperCab's 6'1".
Are all Ford Ranger beds the same?
No. The 2019 to 2023 Ranger has two beds and the 2024 to 2026 one has a 59.6 in bed, and the wheel well width changes from 44.8 in to 48.2 in.
How long is a 2001 Ranger bed?
Our fitment data lists Rangers from 1993 to 2004 under a 6' cover label. The maker's full dimensions for those years are not listed here, so measure your own bed from the bulkhead to the closed tailgate. Our catalog lists only the 6' bed for those years, so if your reading is well over 6 ft, none of our listings is made for your bed.
Will a 2019 to 2023 Ranger cover fit a 2024 to 2026 Ranger?
No. The catalog lists separate parts for each generation, even where both carry a 5'1" label, and Ford's sheets show a different box: 59.6 in at the floor and 48.2 in between the wheel wells on the newer truck against 61.0 in and 44.8 in on the 2019 SuperCrew. Order by year and bed.
Is a 5'1" cover the same as a 5' cover?
For a 2024 to 2026 Ranger, yes: brands list the same 4.97-ft box as 5' or 5'1". For a 2019 to 2023 Ranger, 5'1" is the SuperCrew's 5-ft box and no 5' part is listed. Check the year before you order.
How wide is a Ranger bed between the wheel wells?
It is 44.8 in on the published 2019 specs and 48.2 in on Ford's 2026 sheet, so only the newer bed holds a 48 in plywood sheet flat.
