How we made this guide: picks and specs come from our catalog and fitment data, owner quotes come from verified reviews and the guide was drafted with AI help, then checked and edited by Trevor Hall.
The Ford F-150 comes with three bed lengths: a 5.5 ft box (67.1 in at the floor), a 6.5 ft box (78.9 in) and an 8 ft box (97.6 in). On the 2026 truck, the SuperCrew gets the 5.5 or 6.5 ft box, the SuperCab the 6.5 ft box and the Regular Cab the 6.5 or 8 ft box. Ford's 2015 to 2021 sheets also list the 8 ft box on the SuperCab.
If you are buying a tonneau cover, the size on the cover listing will not match Ford's name. A 5.5 ft box is listed as 5'7" and a 6.5 ft box as 6'7". The BAKFlip MX4 hard folding cover for a 2021 to 2026 F-150 starts at $1,199.99 on the 5.5 ft bed.
Quick answer
5.5 ft box: 67.1 in at the floor, on the SuperCrew (Raptors also use it; pick Raptor in the selector). 6.5 ft box: 78.9 in, Regular Cab, SuperCab and SuperCrew. 8 ft box: 97.6 in, Regular Cab or SuperCab on Ford's 2015 to 2021 sheets and Regular Cab only on the 2026 sheet. All three are 50.6 in wide between the wheel wells and 21.4 in deep.
F-150 bed dimensions by generation and cab
Those numbers come from Ford's technical specifications; the table below gives the length, width, depth and volume Ford lists for the 2015 to 2026 trucks. Ford kept the same three box lengths across the 13th generation (2015 to 2020) and the 14th generation (2021 to 2026). The figures are Ford's inside measurements. Length is taken at the floor, width is between the wheel wells and depth is the inside height of the box.
| Years | Cab | Ford bed name | Length at floor | Width between wheel wells | Depth | Volume |
|---|---|---|---|---|---|---|
| 2021 to 2026 | SuperCrew | 5.5 ft Styleside | 67.1 in | 50.6 in | 21.4 in | 52.8 cu ft |
| 2021 to 2026 | Regular Cab, SuperCab, SuperCrew | 6.5 ft Styleside | 78.9 in | 50.6 in | 21.4 in | 62.3 cu ft |
| 2021 to 2026 | Regular Cab (2021 sheet: also SuperCab) | 8 ft Styleside | 97.6 in | 50.6 in | 21.4 in | 77.4 cu ft |
| 2015 to 2020 | SuperCrew | 5.5 ft Styleside | 67.1 in | 50.6 in | 21.4 in | 52.8 cu ft |
| 2015 to 2020 | Regular Cab, SuperCab, SuperCrew | 6.5 ft Styleside | 78.9 in | 50.6 in | 21.4 in | 62.3 cu ft |
| 2015 to 2020 | Regular Cab, SuperCab | 8 ft Styleside | 97.6 in | 50.6 in | 21.4 in | 77.4 cu ft |
Ford's 2018 vehicle guide also lists the widest point inside the 2015 to 2020 box at 65.2 in. The 2020, 2021 and 2026 sheets do not state a maximum width, so we do not give one for the 2021 to 2026 truck. Ford's 2026 sheet lists the Raptor's 5.5 ft box at 67.2 in on the floor, a tenth of an inch longer than the standard box.
2021 to 2026 F-150 (14th generation)
The newest truck offers the 5.5 ft box on the SuperCrew only. The 6.5 ft box is offered on every cab, and on Ford's 2026 sheet it is the only SuperCab box. The 8 ft box is a Regular Cab choice on the 2026 truck; Ford's 2021 sheet also lists it on the SuperCab.
Two factory options change which cover part you need rather than the bed size. Ford's Pro Access tailgate arrives with the 2024 model year and opens in two ways, including a side-hinged inner section. In our fitment data it matters only for one-piece lids, and we list no one-piece lid for a 6.5 ft bed with it. Ford's factory cargo-management track is the other: some covers are built only for trucks without it. For picks that clear both, see our guide to the best hard covers for the F-150.
Raptors use the 5.5 ft box, but some covers list a separate Raptor part, so choose Raptor in the vehicle selector when yours is one. The F-150 Lightning is not in the Ford sheets we used for this table, so we give no Lightning dimensions here. Pick it in the selector and check the Lightning fit note on the part before you order: one Trifecta Signature 2.0 owner with a 2023 Lightning found that cover 1 to 2 in short. Some covers already list 2027 F-150 parts. Ford's 2027 specs are not in our sources, so check the years on the part.
2015 to 2020 F-150 (13th generation)
The earlier aluminum-body truck has the same three boxes and the same inside dimensions. The difference is the 8 ft box: Ford's 2018 guide lists it on the Regular Cab and SuperCab, while the 2020 sheet shows it as not available on the SuperCrew. Most cover brands build a separate part for 2015 to 2020 and 2021 to 2026, so a cover bought for one generation may not fit the other even when the bed length matches.
Soft folding, 5.5 and 6.5 ft
Extang Trifecta Signature 2.0 Soft Folding Tonneau Cover
From $539.99 · A canvas cover for the two shorter boxes; no 8 ft part is listed for it.
2009 to 2014 F-150 (12th generation)
We have no sourced Ford dimensions for this truck, so we do not print a table for it. Our fitment data lists 5'7", 6'7" and 8' cover sizes for 2009 to 2014 trucks (TruXedo calls the long box 8'1"), which tells you the three box lengths covers are built around. For the full measurements, check Ford's literature for your model year, then confirm the length with the steps below.
Why a cover listing shows a different size
Ford names each box in half-foot steps. Cover makers label it by its measured length instead. The 5.5 ft box is 67.1 in at the floor, which is 5 ft 7 in, so listings say 5'7". The 6.5 ft box is 78.9 in, close to 6 ft 7 in, so it is listed as 6'7".
The 8 ft box is where labels split. Ford lists 97.6 in. For 2015 to 2026 trucks, BAK, UnderCover, Extang and Retrax parts say 8', while TruXedo and Access parts say 8'2"; 8'1" shows up only on 2009 to 2014 TruXedo parts. Some BAK Revolver X4s parts say 6'6" for the 6.5 ft bed. Treat those as the same box: choose your year and cab in the selector and the cover maker's label is applied for you.
| Ford calls it | Floor length | Cover listings say |
|---|---|---|
| 5.5 ft | 67.1 in | 5'7" |
| 6.5 ft | 78.9 in | 6'7" (some X4s parts say 6'6") |
| 8 ft | 97.6 in | 8' or 8'2" |
How to check your F-150 bed
- Clear the bed and close the tailgate. The cover's rear seal sits on the tailgate, so the tape ends there.
- Hook the tape on the front bed wall at rail height and pull it back along the rail to the tailgate's inner face. Do both sides and use the shorter reading.
- Divide by 12 and match the nearest size: about 67 in is the 5.5 ft box, about 79 in is the 6.5 ft box and about 98 in is the 8 ft box.
Our guide to measuring a truck bed for a tonneau cover goes deeper. This short video shows the job.
If your reading is more than an inch short of the table, a drop-in liner may be in the way: measure at rail height, above the liner walls.
Comparing trucks? Our truck bed size chart puts the F-150 beds side by side with other pickups.
Which covers fit which F-150 bed
Most of the 58 cover series we carry for the F-150 come in the 5.5 and 6.5 ft sizes. The 8 ft bed has fewer choices. Prices below are for the 2021 to 2026 truck, and the 5.5 ft part is the entry price for each cover.
| Cover | Type | 5.5 ft (5'7") | 6.5 ft (6'7") | 8 ft |
|---|---|---|---|---|
| BAKFlip MX4 | Hard folding | $1,199.99 | $1,249.99 | $1,299.99 |
| BAK Revolver X4s | Hard roll-up | $1,399.99 | $1,479.99 | $1,549.99 |
| RetraxPRO MX | Retractable | $2,149.99 | $2,249.99 | $2,249.99 |
| Extang Trifecta Signature 2.0 | Soft folding | $539.99 | Listed for 2015 to 2020 | No 8 ft part listed |
The full range is on the F-150 tonneau cover page, and the wider catalog is under tonneau covers.
5.5 ft bed: the SuperCrew short box

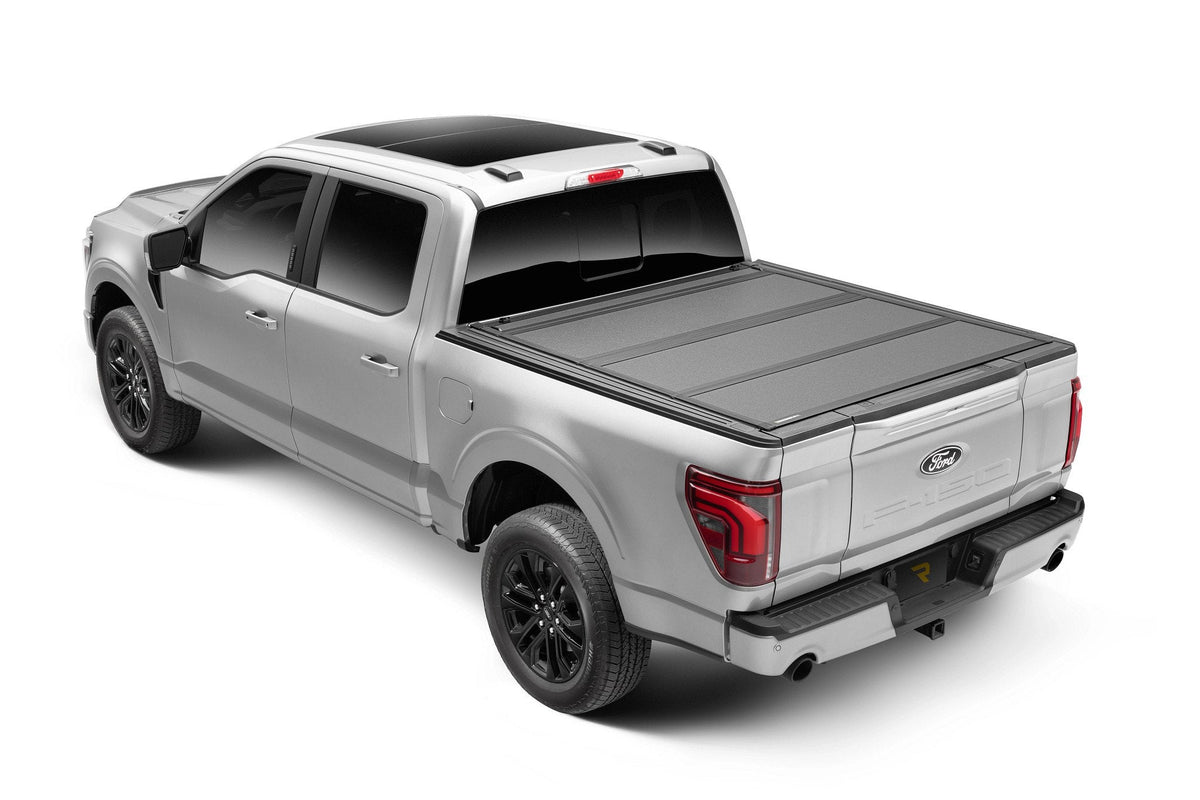

The 5.5 ft box has more cover parts in our F-150 range than any other size. The BAKFlip MX4 is a hard folding cover with 400 lb on the spec sheet, clamp-on install and 100% bed access when folded against the cab.
Hard folding, all three beds
BAKFlip MX4 Hard Folding Tonneau Cover
From $1,199.99 · Made in a part for each of the 5.5, 6.5 and 8 ft boxes; order the one for your year and bed.
“So tight you cannot see light when it is closed.”
BAKFlip MX4 owner · 5 out of 5 stars
6.5 ft bed: the box on every cab
Almost every cover we carry for the F-150 also comes in this size. It is also the only SuperCab box on Ford's 2026 sheet (the 2021 sheet adds an 8 ft SuperCab). The RetraxPRO MX is a retractable with a key-lockable handle, and it stays where you stop it on the track. Retrax still advises a locked tailgate to complete the setup.
Retractable, key lock
RetraxPRO MX Retractable Tonneau Cover
From $2,249.99 · Opens with the tailgate up or down, and the cover has its own key lock.
“Fitment was a perfect fit.”
RetraxPRO MX owner · 5 out of 5 stars
8 ft bed: the long box
Fewer covers come in an 8 ft F-150 part than in the shorter sizes, but the long box still has soft roll-ups, hard folders, hard roll-ups and retractables to choose from. The BAK Revolver X4s rolls onto a spool at the bulkhead, so the full bed opens and the rear window stays clear. Like the folding covers, it relies on a locked tailgate for security.
Hard roll-up for the long bed
BAK Revolver X4s Hard Roll-Up Tonneau Cover
From $1,549.99 · A hard roll-up with an 8 ft part for both the 2015 to 2020 and 2021 to 2026 F-150.
What fits in an F-150 bed
The 50.6 in between the wheel wells is the number that decides sheet goods. A 4 by 8 sheet of plywood is 48 in wide, so it lies flat between the wells on every 2015 to 2026 box. The 8 ft box is 97.6 in long at the floor, which is longer than a 96 in sheet, so a full sheet fits with the tailgate up. On the 5.5 and 6.5 ft boxes the sheet still lies flat between the wells, but its 96 in length runs past the 67.1 or 78.9 in floor, so carry it with the tailgate down and tie it in.
Volume is the other figure worth comparing. The 6.5 ft box holds 62.3 cu ft against 52.8 cu ft for the 5.5 ft, a gain of 9.5 cu ft. If you often haul tall loads, a tonneau cover that folds or lifts off matters as much as the box length. Our guide to drain tubes on an F-150 covers keeping the bed dry once a cover is on.
Frequently asked questions
Which F-150 has a 6.5 ft bed?
Every cab style can have it. On the 2021 to 2026 truck, the Regular Cab, SuperCab and SuperCrew all list the 6.5 ft Styleside box at 78.9 in on the floor. On Ford's 2026 sheet it is the only SuperCab box; the 2021 sheet also lists the SuperCab with the 8 ft box.
What is the difference between the F-150 short bed and the standard bed?
The 5.5 ft short box is 67.1 in at the floor and the 6.5 ft standard box is 78.9 in, so the standard box is 11.8 in longer and holds 9.5 cu ft more. Width between the wheel wells (50.6 in) and depth (21.4 in) are the same. On the 2026 truck the short box comes only on the SuperCrew.
How long is the F-150 SuperCrew with a 5.5 ft bed?
The bed is 67.1 in at the floor, 50.6 in between the wheel wells and 21.4 in deep. Ford's 2026 sheet lists the Raptor's 5.5 ft box at 67.2 in.
How do I know my F-150 bed size?
Pull a tape along the rail from the front bed wall back to the closed tailgate. About 67 in is the 5.5 ft box, about 79 in is the 6.5 ft box and about 98 in is the 8 ft box.
Does the F-150 still come with an 8 ft bed?
Yes, on the Regular Cab. Ford's 2026 sheet lists the 8 ft box on the Regular Cab only. Covers for it are a smaller group, and the BAKFlip MX4, BAK Revolver X4s and RetraxPRO MX all list an 8 ft part.
Is a 2015 to 2020 cover the same as a 2021 to 2026 cover?
Not always. The box lengths match, but most brands build a separate part for each generation. Choose your year, cab and bed in the vehicle selector so the part is matched to your truck.
Start from the F-150 tonneau covers page. Pick your year and bed and the selector finds the exact part.
