Warn HUB Wireless Receiver for VRX, ProVantage and Vantage Winches, Bluetooth Phone Control (103950)

If you have ever tried to load a quad onto a trailer using a winch control mounted on the quad, you already understand the problem this solves. The HUB receiver moves the winch controls onto your phone over Bluetooth, giving you up to 100' of working range, so you can stand where you can see the load line up rather than where the wiring happens to reach. This is the powersports version for Warn's VRX, ProVantage and Vantage winches. Unlike the truck and AXON receivers, this one comes with bare pigtail leads, a ring terminal and spade connectors, because those winch families are wired rather than plugged.

What's Included:

• Warn HUB wireless receiver module with powersports wiring harness
• Ring terminal and spade connector leads
• Status LED and pairing button on the module
• Warn HUB app, free download for your smart device

Features

Control From Up to 100' Away
Bluetooth pairing between the receiver and your smart device gives winch control from up to 100' away. Loading a machine onto a trailer, or pulling one out of a ditch, is far easier when you can stand at the side and watch the load track straight instead of operating from beside the winch.

For Warn VRX, ProVantage and Vantage Winches
This is the receiver for Warn's VRX, ProVantage and Vantage powersports winches. Warn builds a separate one for AXON winches and another for truck and SUV winches, and because the connectors differ they are not interchangeable, so the part number matters more here than on most accessories.

Wiring Harness with Ring and Spade Terminals
The powersports version ships with bare leads terminating in a ring terminal and spade connectors rather than a moulded plug, which is how the VRX, ProVantage and Vantage control wiring is made up. It is a straightforward job, but it is a wiring job rather than a plug-in one, so budget a little more time than the truck version needs.

Your Existing Control Keeps Working
The receiver is added to the winch's control wiring rather than replacing it, so your handlebar or dash-mounted control continues to work. The app is an extra way in, not a swap.

Your Phone Is the Remote
The free Warn HUB app makes the phone in your pocket the winch control. Nothing extra to lose off a rack, nothing extra to keep charged, and nothing else competing for space on a machine that has none.

Small Enough to Tuck Away

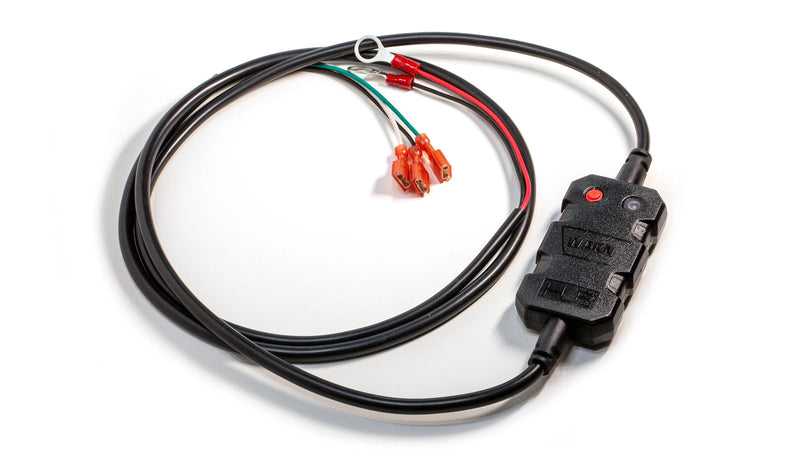

A compact moulded module with a status LED and a pairing button on the face, light enough to secure with cable ties and small enough to hide behind a bumper or under a rack where it stays out of the weather.

Fitment & Compatibility

Specifications

• Product: HUB Wireless Receiver for Warn VRX, ProVantage and Vantage Winches
• Part Number: 103950
• Type: Wireless winch controller, Bluetooth receiver
• Compatible Winches: Warn VRX, ProVantage and Vantage powersports winches
• Control Range: Up to 100'
• Control Device: Smart device running the free Warn HUB app
• Existing Control: Unaffected. The receiver is added to the control wiring and the factory control continues to work
• Connection: Wiring harness with ring terminal and spade connector leads
• Country of Origin: China
• Shipping Weight: 0.7 lb
• UPC: 012748083467

Installation

Type: Wire-in to the existing winch control wiring using the supplied ring and spade terminals  ·  Time: About 30 to 45 minutes  ·  Tools: Basic hand tools, cable ties, and a spanner for the ring terminal at the battery or solenoid stud  ·  Difficulty: Easy to intermediate, because this version wires in rather than plugging in

Disconnect the battery before working on the winch wiring. Connect the supplied leads to the winch control circuit as shown in Warn's instructions, using the ring terminal at the stud and the spade connectors on the control wiring, and make sure each connection is fully seated and insulated. Mount the module where it is protected from direct water spray and away from exhaust heat, then cable-tie the harness so nothing hangs into suspension travel, steering or a spinning shaft. Reconnect the battery, download the Warn HUB app, pair using the button on the module, and run the winch in and out under no load before you rely on it.

Resources

Everything you need for your Warn HUB Wireless Receiver for VRX, in one place.

• HUB Receiver Quick Start Guide for Powersports (PDF), the mounting, wiring and phone pairing quick start for the universal powersports HUB receiver.
• HUB Receiver Owner's Manual (PDF), Warn's owner manual for the HUB wireless receiver, covering safety, operation, troubleshooting and customer service.

Warranty, Shipping & Returns

Warranty. Covered by Warn's factory warranty. Warn does not publish a separate warranty term for this part number.

Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About Warn

Warn Industries has been building vehicle recovery gear in the Pacific Northwest since 1948, when Arthur Warn started out converting surplus military Jeeps for road use with a locking hub of his own design. The hubs turned into winches, and the winches turned Warn into the name that off-roaders, ranchers, utility fleets and search-and-rescue crews reach for when something has to come out of somewhere it should not be, on four wheels or on many more.

Warn's approach is to treat a winch as a safety device rather than an accessory, and the HUB receiver is that thinking applied to the control side. On a quad or a UTV, where the operator is often working alone, being able to step away from a loaded line and still hold the controls changes how a recovery or a loading job is done. Warn builds a version for each of its winch families rather than one universal box, which is why the connector on this one is specific to the powersports lines.

Prestige Truck is an authorized Warn dealer. Every winch and accessory we sell is new, factory-boxed, covered by the full Warn factory warranty, and supported through Warn's own dealer network.
