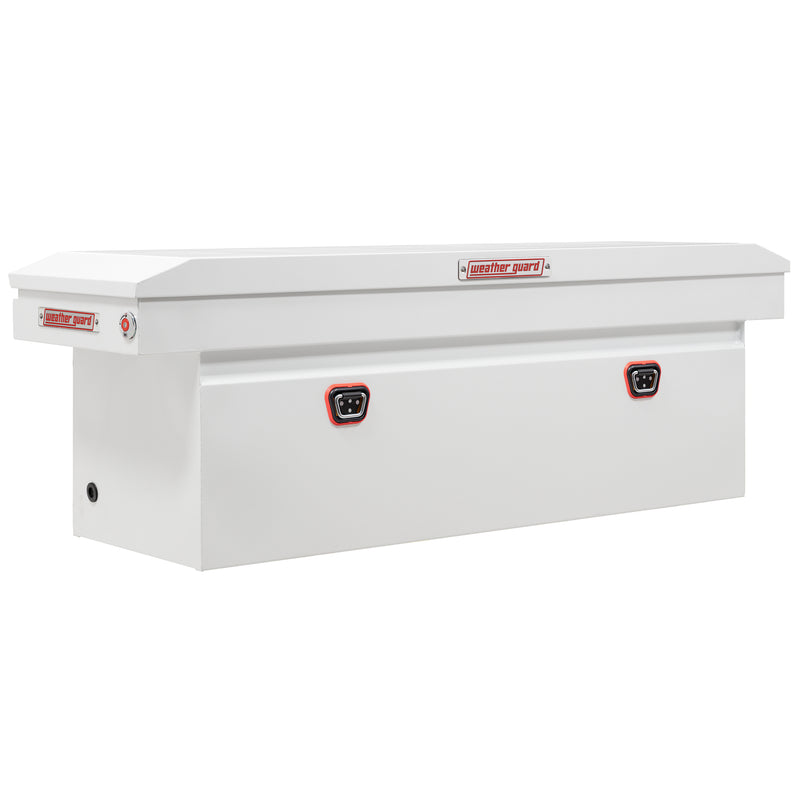

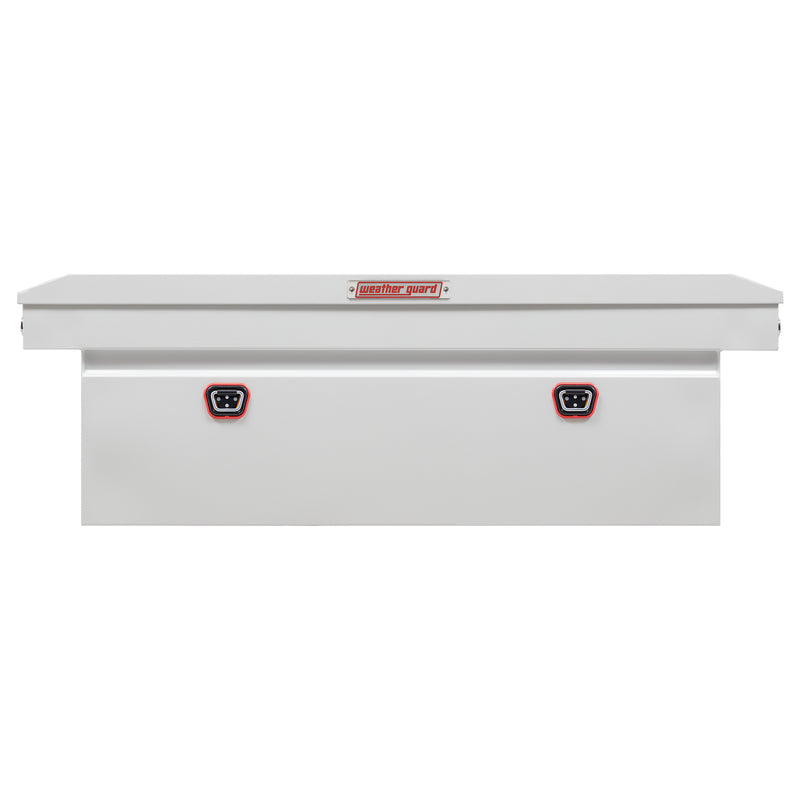

Weather Guard 128 Steel Crossover Truck Tool Box, Full-Size Deep, Brite White (128-3-04)

Finished in fleet-friendly brite white ARMOR TUF powder coat, the Weather Guard 128-3-04 reflects heat to help keep contents cooler and is easy to match to a white work truck or fleet. The tough coating resists rust, chips and fading season after season. It is the natural match for a white commercial fleet or any contractor who wants maximum visibility. On hot days a white box and its contents also run noticeably cooler than a dark one baking in the sun. This full-size, deep steel saddle box straddles the top bed rails behind the cab and adds extra height for bulky gear, holding 15.0ft³ of heavy-duty, weather-sealed storage. A heavy-duty formed steel body with a reinforced lid stands up to jobsite abuse, and a full-perimeter D-shaped weather seal locks out rain and dust.

What's Included:

• 128 Series full-size deep steel crossover (saddle) tool box in brite white
• 1Key UltraLock push-button locks, keyed alike
• Under-rail mounting clamps and hardware for a no-drill install
• Gas struts with welded strut shields
• Removable divider tray
• Full-perimeter D-shaped weather seal, pre-installed
• Weather Guard installation instructions

Features

Heavy-Duty Steel Build
A heavy-duty formed steel body with a reinforced lid and front panel stands up to years of loading, weather and road abuse. Steel gives this box maximum strength and a solid, secure feel. This one is finished in brite white ARMOR TUF powder coat.

Brite White ARMOR TUF Finish
A brite white ARMOR TUF powder coat reflects sunlight to help keep the box and its contents cooler, and it is easy to color-match to a white work-truck fleet. The coating resists rust, chips and fading in tough conditions.

1Key UltraLock Security

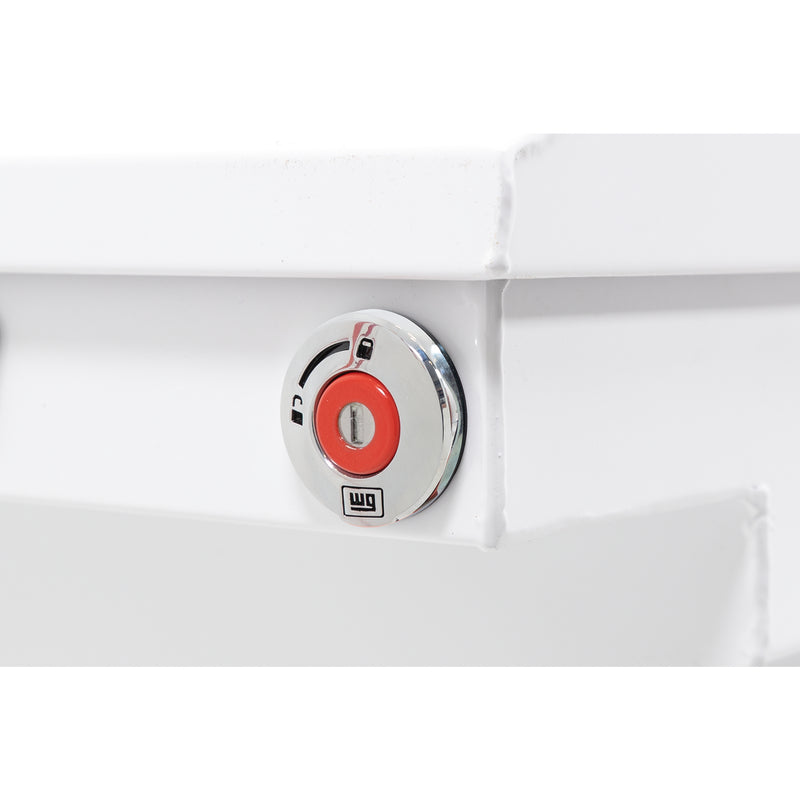

Tamper-resistant push-button locks sit recessed when locked, giving a quick visual cue your gear is secured. The 1Key UltraLock system lets you code multiple boxes on a truck, or a whole fleet, to a single key.

Full-Perimeter Weather Seal

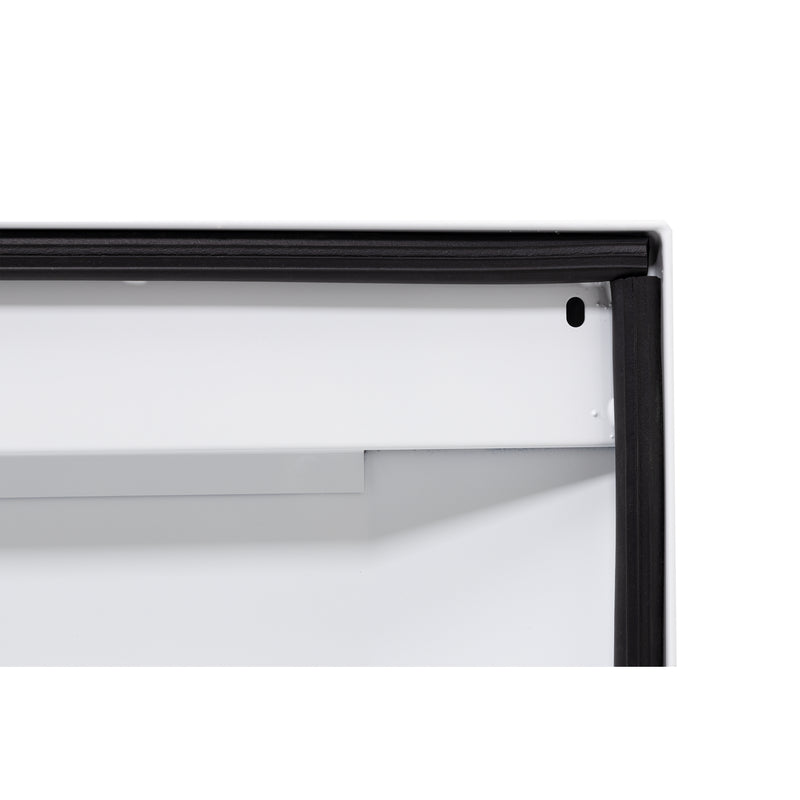

A memory-resistant D-shaped, multi-ridge weather strip runs the entire lid perimeter to keep rain, dust and debris off your tools, so your gear stays dry and ready in any weather.

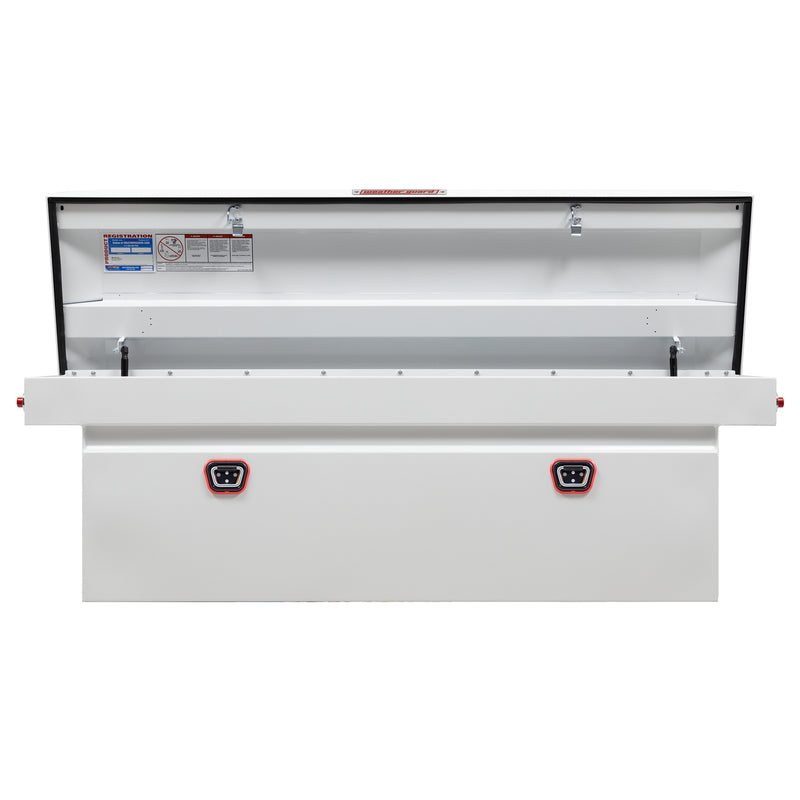

Reinforced Lid With Gas Struts

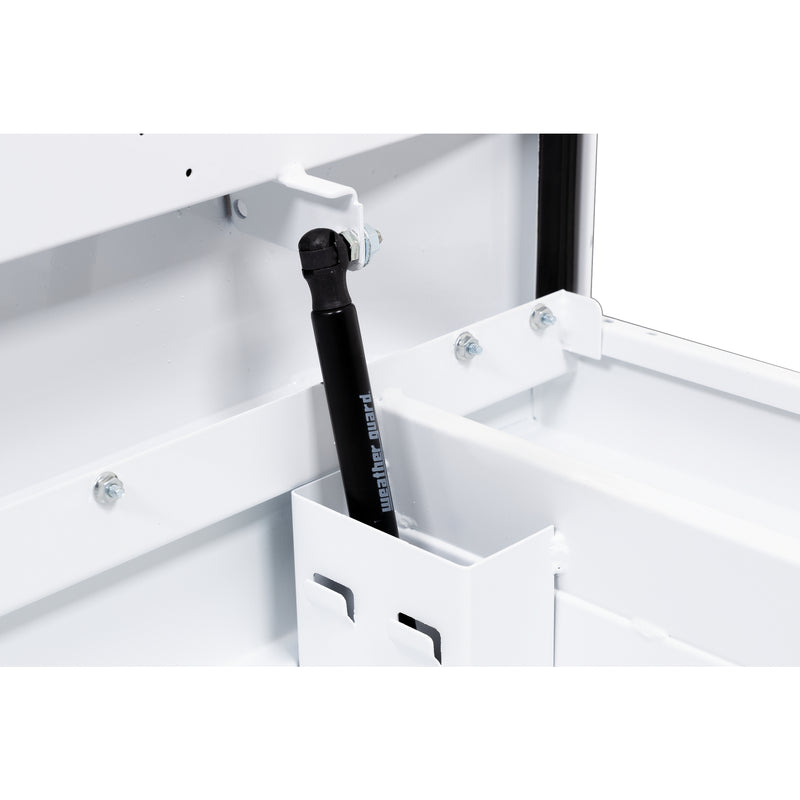

Gas struts hold the reinforced lid open near 90 degrees for easy one-handed access, and welded strut shields protect them from damage. The steel-reinforced lid resists flex and stands up to daily use.

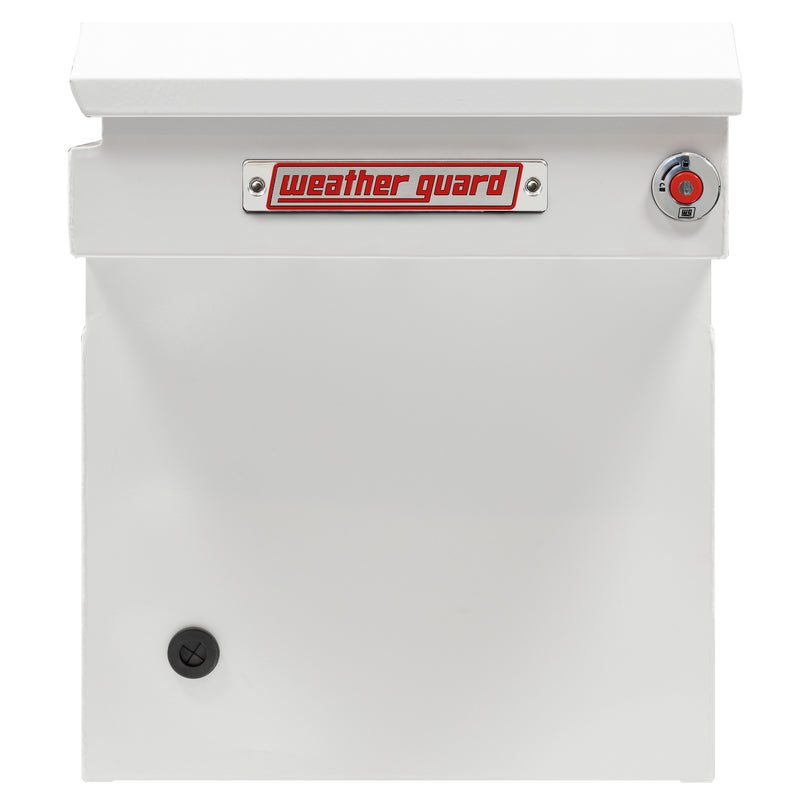

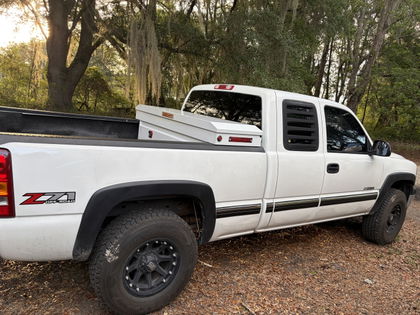

Saddle Fit Across The Bed

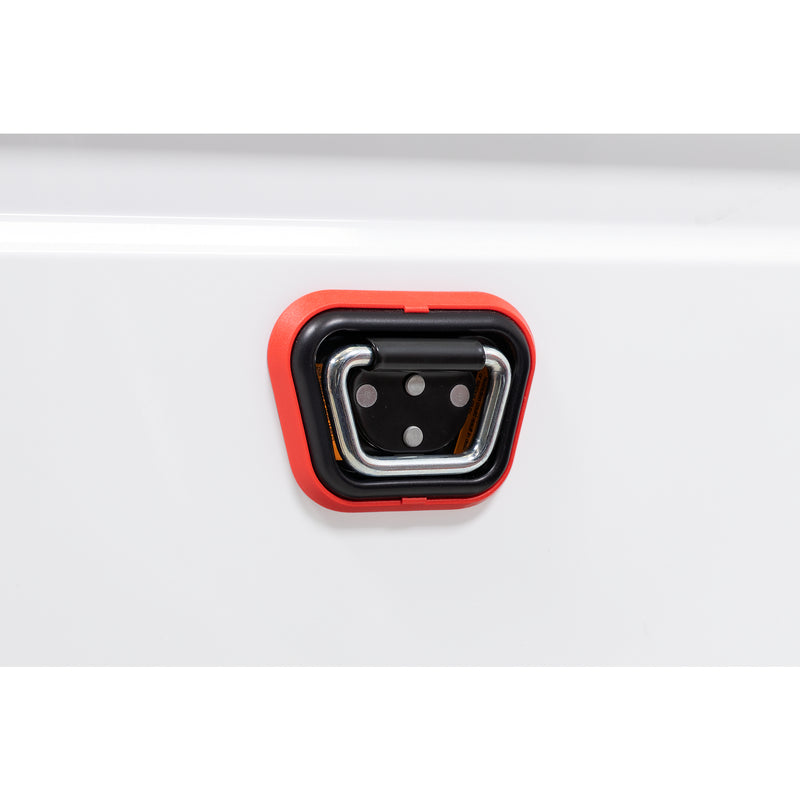

The box straddles the top bed rails behind the cab, keeping your bed floor open for sheet goods and cargo. Enhanced tie-down buckles and 12V PowerSync-ready access round out a box built for working trucks.

Reinforced Body, Automotive-Grade Hardware

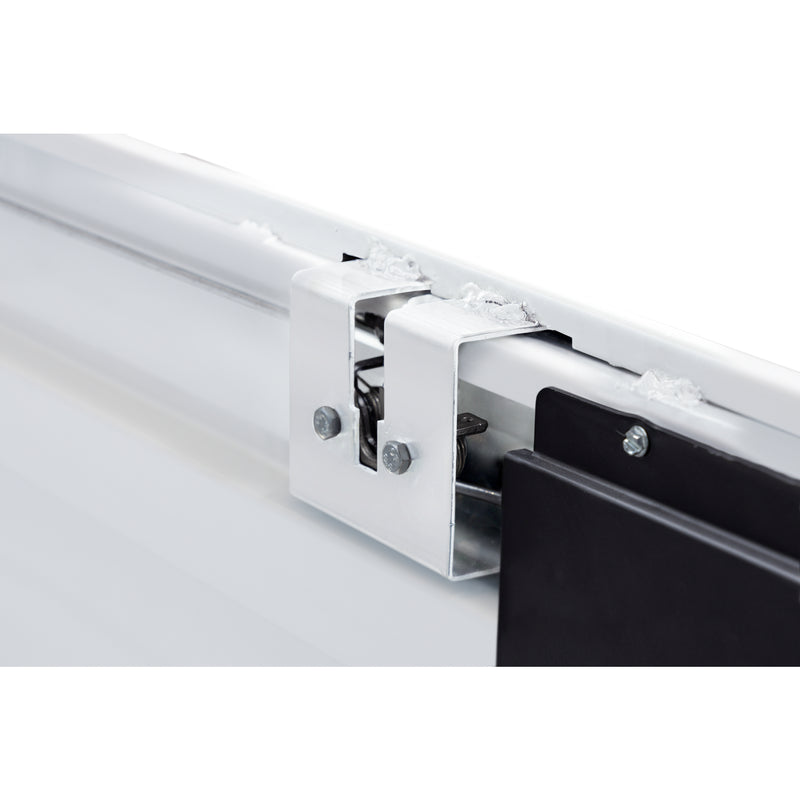

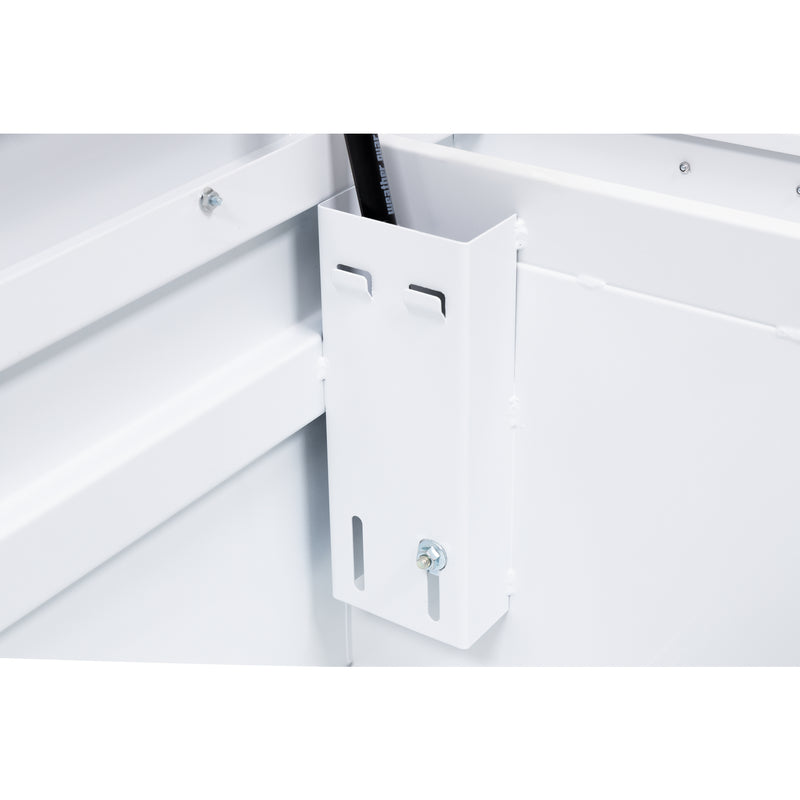

Weather Guard specifies a five-piece welded body for the 128-3-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.

Fitment & Compatibility

Specifications

• Series: 128 Series Steel Crossover (Saddle)
• Style: Full-Size Deep, single-lid saddle/crossover
• Storage Capacity: 15.0ft³

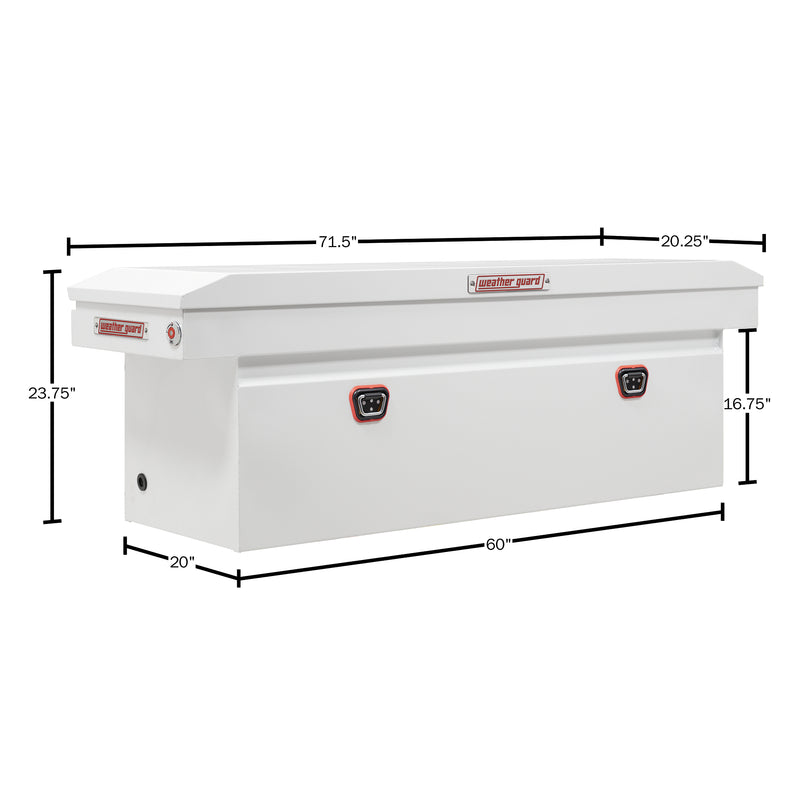

• Exterior Dimensions: 72"L x 20"W x 24"H
• Material: Heavy-duty formed steel, reinforced lid and front
• Finish: Brite White ARMOR TUF
• Lid: Reinforced, opens near 90 degrees, gas struts with welded strut shields
• Lock: 1Key UltraLock push-button, tamper-resistant, keyed alike
• Weather Seal: Full-perimeter D-shaped, multi-ridge weather strip
• Mounting: Under-rail clamps and hardware included, no drilling required
• Electrical: 12V PowerSync compatible access
• Construction: 5 Piece Welded
• Front Panel: C-Channel Reinforced
• Lid Construction: Heavy Duty C-Channel Reinforced
• Latch Mechanism: Automotive Dual-Stage Rotary
• Weather Strip Profile: Memory Resistant D-Shaped Ribbed
• Gas Strut Protection: Welded Gas Strut Shield
• Bed Style: Style Side
• Body Gauge: 18-ga
• Shipping Size: 74"L x 27"W x 24"H, 156.5 lb
• UPC: 783965071659
• Weight: About 152 lb (156.5 lb shipping)
• Warranty: Limited Lifetime
• Made In: USA

Installation

Type: Saddle mount across the top bed rails, clamp-in with no drilling  ·  Time: About 20 to 30 minutes  ·  Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps  ·  Difficulty: Easy, best done with two people for the lift

Set the box across the two bed rails behind the cab and center it left to right. Hook the included clamps under each bed rail and tighten the hardware evenly so the box sits flat and the lid seals all the way around. Because the box is wide, have a second person help lift and hold it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.

Watch the installation walkthrough:

Resources

Everything you need for your Weather Guard 128 Steel Crossover Truck Tool Box, Full-Size Deep, Brite White, in one place.

• Official Weather Guard 128 Steel Crossover Truck Tool Box, Full-Size Deep, Brite White installation manual (PDF), the manufacturer's step-by-step guide covering mounting, included hardware and torque specs.
