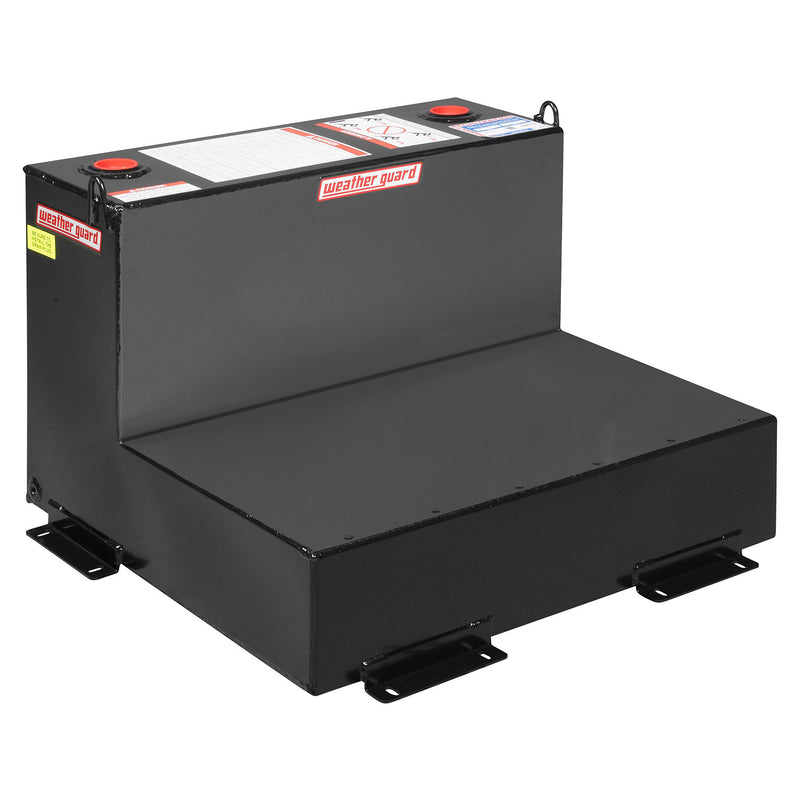

Keep diesel on the truck and skip the fuel run with the Weather Guard 350-5-02 transfer tank in blacked-out ARMOR TUF. This 50 gallon L-shape tank is the compact option in the line, made from 12-gauge steel with a black powder coat that hides dust and diesel splatter and gives the bed a clean, dark look. Its small stepped footprint sits against the bulkhead of a full-size bed and fits many mid-size trucks, so you gain on-board fuel without losing your cargo space.
What's Included:
- 50 gallon L-shape steel transfer tank
- Vented, lockable filler cap
- Steel bed-plate mounting hardware with rubber isolation bushings
- Reinforced filler neck and 2 in NPT pump port opening
- Weather Guard installation instructions
- Transfer pump, hose, nozzle and filter are sold separately
Features
Heavy 12-Gauge Steel Build
Every panel is formed from 12-gauge steel and joined with an overlapping edge design that reinforces the corners. It is built to survive the vibration, weight and rough handling that come with life in a work truck bed.
Black ARMOR TUF Finish
A black ARMOR TUF powder coat wraps the whole tank to fight rust, fading and chips. It shrugs off diesel spills, road salt and sun so the tank keeps looking sharp in the bed.
Baffled For Stable Hauling
Interior baffles slow the fuel down as you drive, so a full tank does not slosh and shove the truck around. Less fluid motion also means less stress on the tank over the long haul.

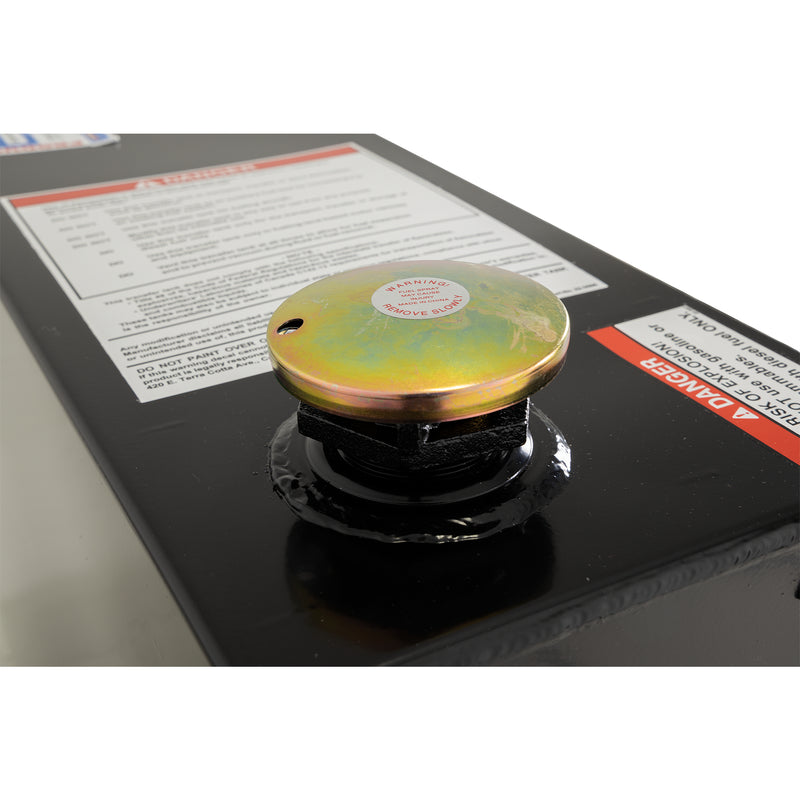

Vented, Lockable Fill Cap
The filler cap vents to prevent pressure build-up as diesel warms and moves, then locks to help keep your fuel secure on the jobsite or overnight.

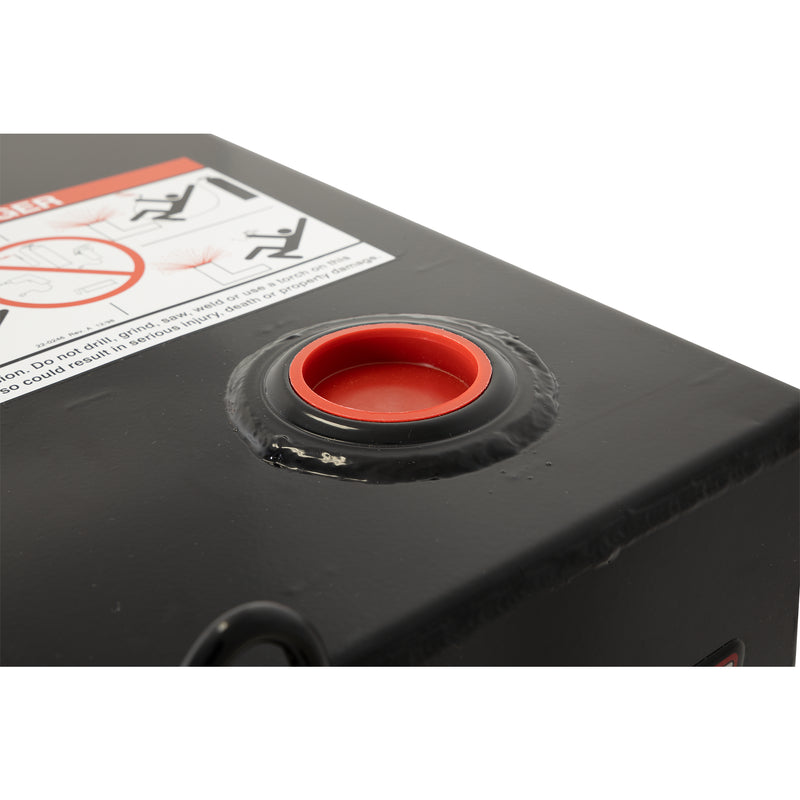

Ready For Your Transfer Pump
A 2 in standard NPT port accepts most 12V diesel transfer pumps up to 30 pounds, and a 3/8" drain port makes service and draining easy. Add a pump, hose and filter to fuel equipment right from the bed.
Compact L-Shape Bed Fit
The small L-shape footprint tucks against the bulkhead and pairs with Weather Guard Saddle and Gull Wing boxes, while the blacked-out finish keeps a low-key look. Rubber isolation bushings on the steel bed plate cushion the mount and protect both the tank and your bed.
Fitment & Compatibility
| Truck Class |
Example Trucks |
Fit |
| Full-size 1/2-ton and heavy-duty |
F-150 through F-350, RAM 1500 through 3500, Silverado/Sierra 1500 through 3500 |
✓ Yes, drops in with room to spare |
| Mid-size |
Colorado, Canyon, Tacoma, Ranger, Frontier |
● Often yes, measure bed and wheel-well clearance first |
| Compact and small |
- |
● Verify bed space, this is the smallest footprint tank |
Fit guidance: This is Weather Guard's compact L-shape transfer tank, so it has the smallest footprint in the line at about 32" long by 30" wide by 22" tall. The stepped L-shape sits against the front bed bulkhead and leaves the rest of the bed floor open for tools and cargo. It drops easily into full-size beds and fits many mid-size trucks that have room across the bed. Always measure your bed and confirm clearance around the wheel wells before ordering, and factor in the added weight of a full tank against your payload.
Specifications
-
Capacity: 50 gallons
-
Shape: L-Shape
-
Material: 12-gauge steel panels, overlapping edge design
-
Finish: Black ARMOR TUF powder coat
-

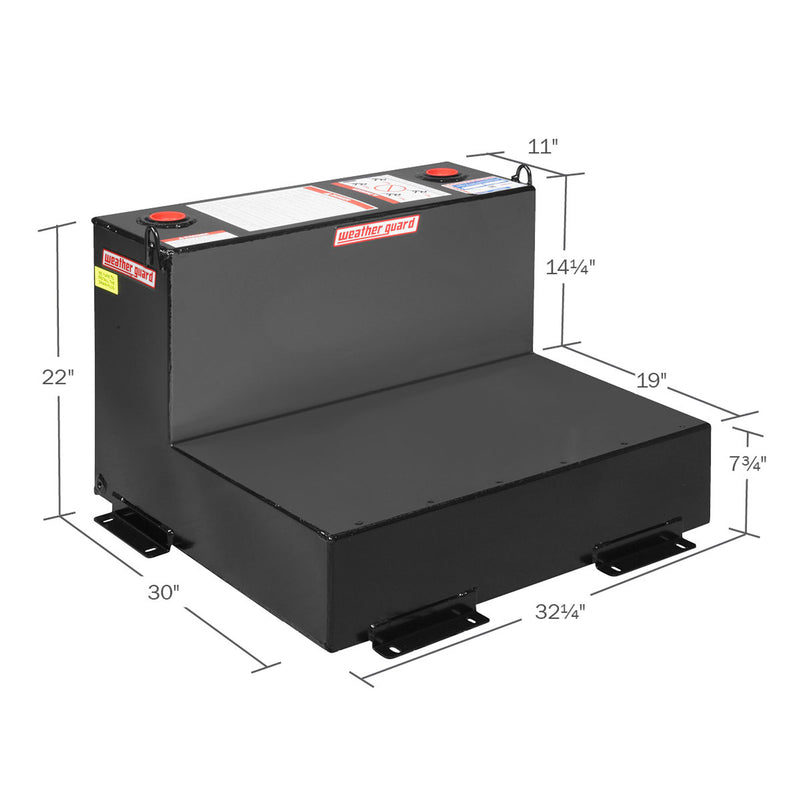

Exterior Dimensions: 32-1/4"L x 30"W x 22"H
-
Baffled: Yes, interior baffles reduce fuel slosh
-
Filler Cap: Vented and lockable
-
Fittings and Ports: 2 in standard NPT pump port, 3/8" drain port
-
Pump Compatibility: Accepts most 12V transfer pumps up to 30 lb (Severe Series tank required for heavier pumps)
-
Approved Fluids: Diesel and hydraulic fluid only, not for gasoline or flammables
-
Weight: About 126 lb empty (134 lb shipping)
-

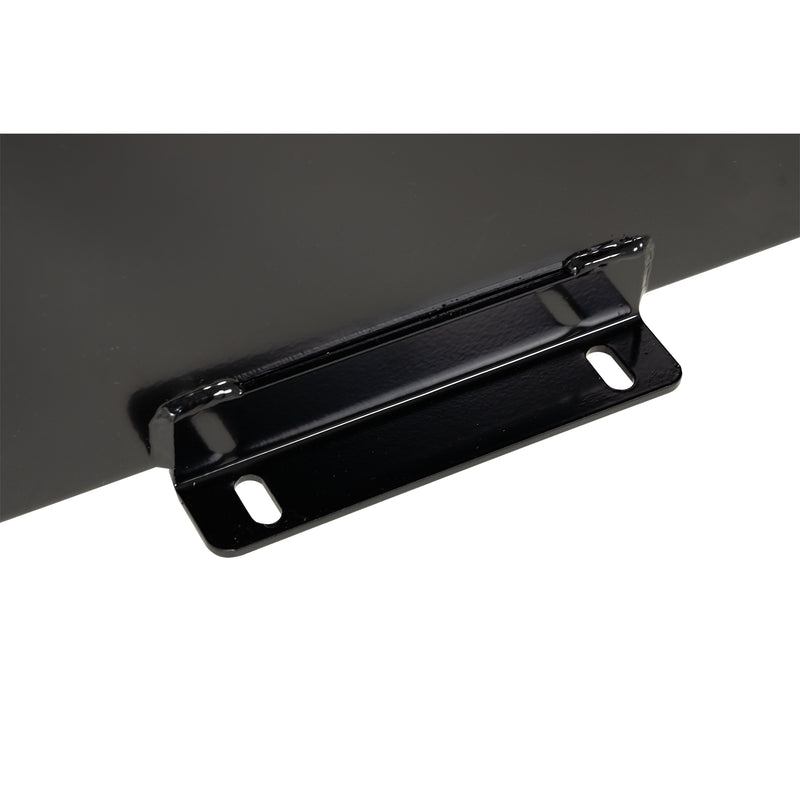

Mounting: Steel bed plate with rubber isolation bushings, hardware included
-
Warranty: Limited Lifetime
-
Made In: USA
-
Mounting Method: Steel bed plate with rubber isolation bushings, bolts to the bed floor
Installation
Type: Bed-mount, bolt-in · Time: About 1 to 2 hours · Tools: Drill and bits, wrench or socket set, tape measure, marker, and zinc-rich primer to seal any drilled holes · Difficulty: Moderate, DIY-friendly with basic hand tools
Set the tank in place against the bed bulkhead, mark and drill the mounting points, then bolt it down through the steel bed plate using the supplied rubber isolation bushings so the tank is cushioned from the bed. Coat any drilled holes with zinc-rich primer to prevent rust, especially on aluminum beds. Install the filler neck and vented cap, then add your transfer pump, hose and filter. Follow the Weather Guard installation instructions for exact hardware placement.
Resources
Everything you need for your Weather Guard 50 Gallon L-Shape Steel Transfer Tank, Compact, Black, in one place.
Warranty, Shipping & Returns
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
Compliance. The Weather Guard 50 gallon L-Shape is a bed-mounted transfer and storage tank rated for diesel fuel and hydraulic fluid only. Weather Guard's own safety labeling on the tank calls out diesel use only and warns against filling it with gasoline or any other flammable liquid, which creates an explosion risk in a vented steel transfer tank. It is not designed or approved to be plumbed into a vehicle's primary fuel system as an auxiliary supply tank. Fuel is moved with a 12V transfer pump through the 2 in NPT port rather than by gravity feed, and Weather Guard recommends running a filter when pumping. Weather Guard does not publish a DOT approval number for these transfer tanks, so treat it as a transfer and storage tank, not a DOT-certified auxiliary fuel tank. Rules for hauling and dispensing fuel vary by state and by the quantity carried, so the buyer is responsible for confirming legal, compliant use. Gasoline is never approved for this steel tank and should not be stored or transferred in it.
