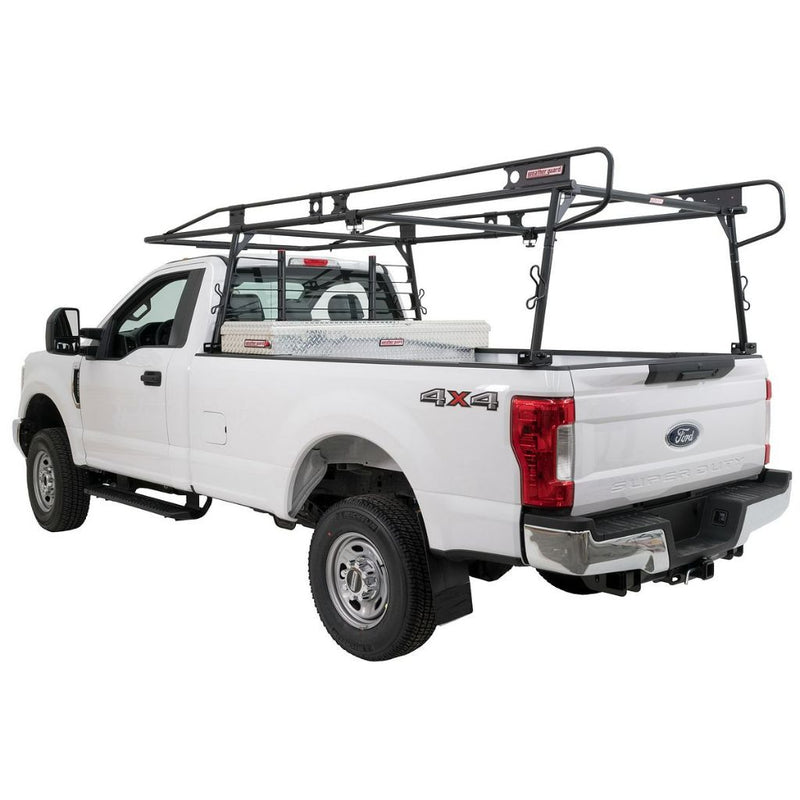

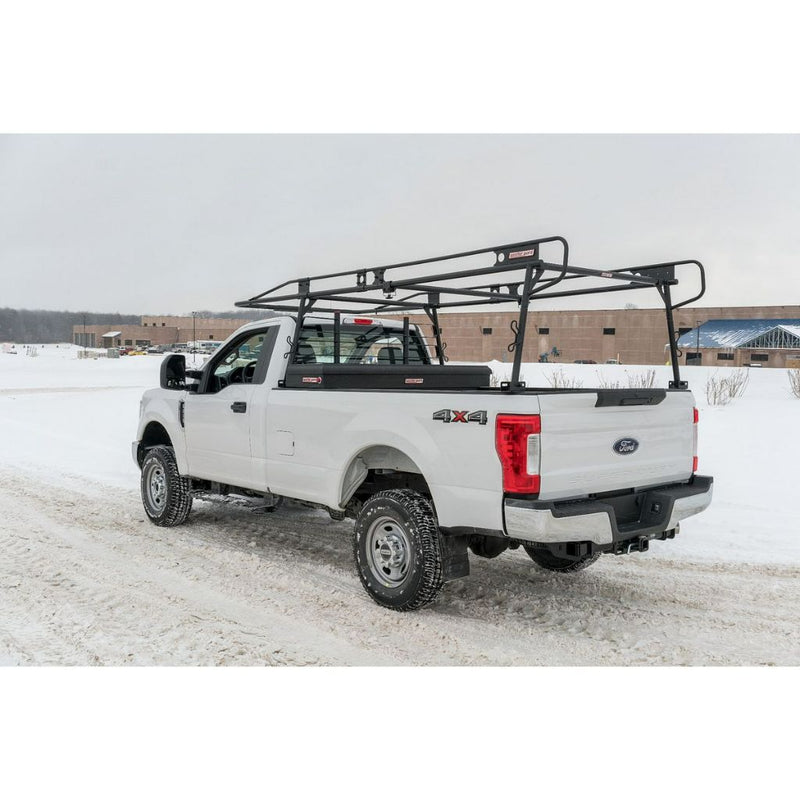

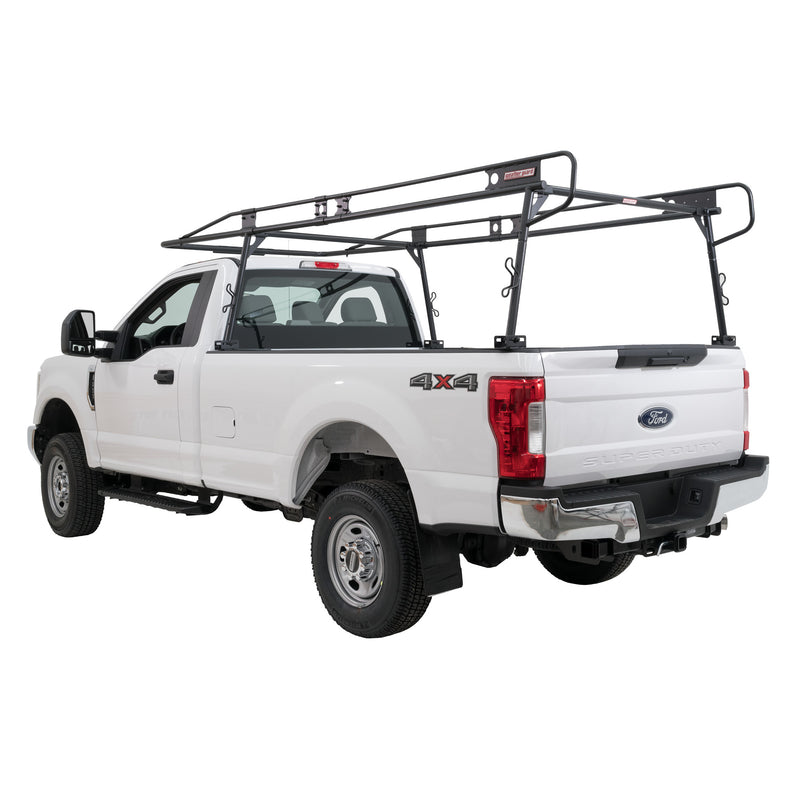

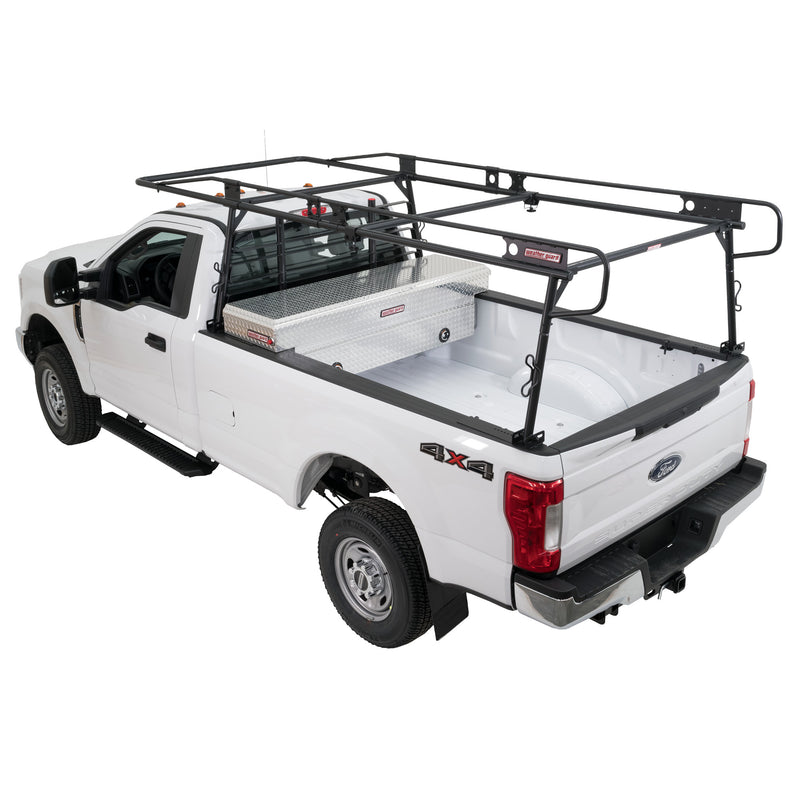

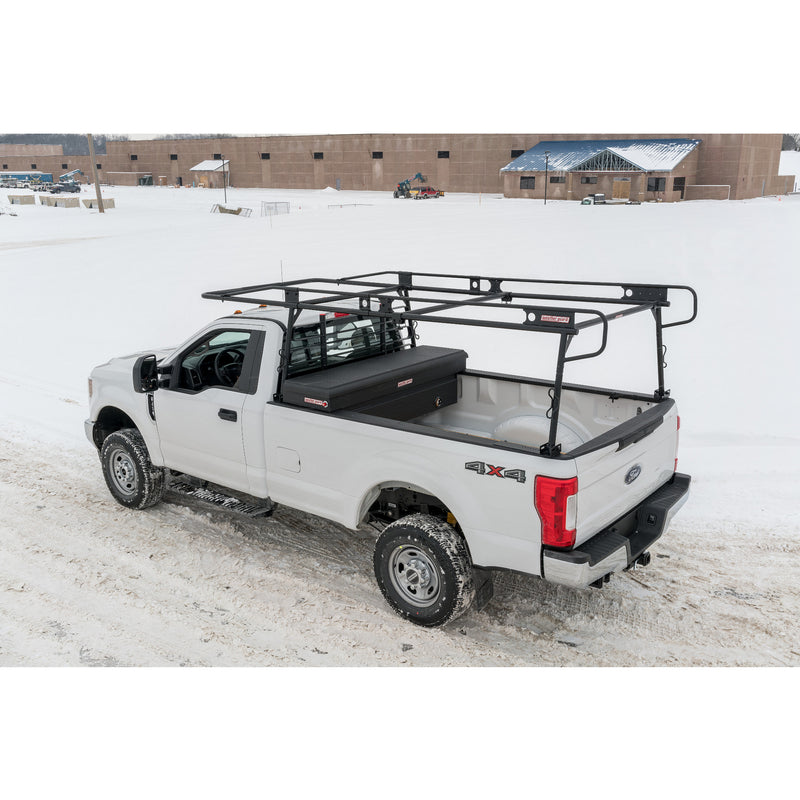

Haul ladders, lumber, pipe and long loads over the cab and free up your whole bed with the Weather Guard 1275-52-02 full-size steel truck rack. This over-bed ladder rack is built from formed steel tubing, carries up to 1,000 pounds evenly distributed, and finishes in a tough matte black powder coat that shrugs off weather and jobsite wear. Adjustable front legs and a true no-drill stake-pocket mount let one rack fit full-size short and long beds without putting a single hole in your truck.
What's Included:

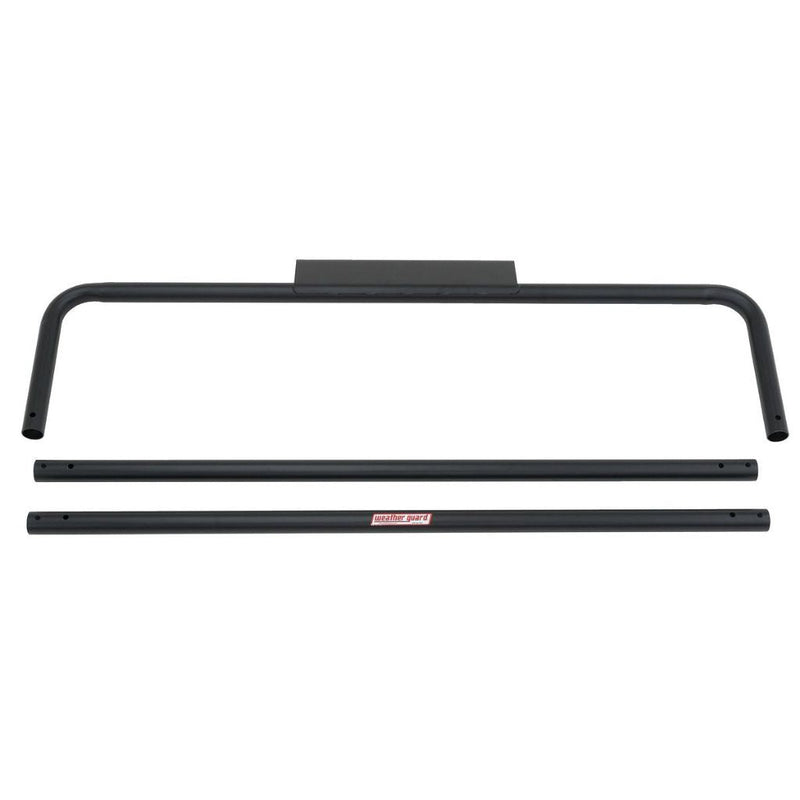

Front cross member with welded airfoil wind deflector
Two steel side rails with tie-down points
Third steel cross member with removable rear pins
Four adjustable steel legs
No-drill stake-pocket mounting clamps and hardware
No-drill installation kit for 2016 and newer Chevy and GMC trucks
Weather Guard assembly and installation instructions
Features

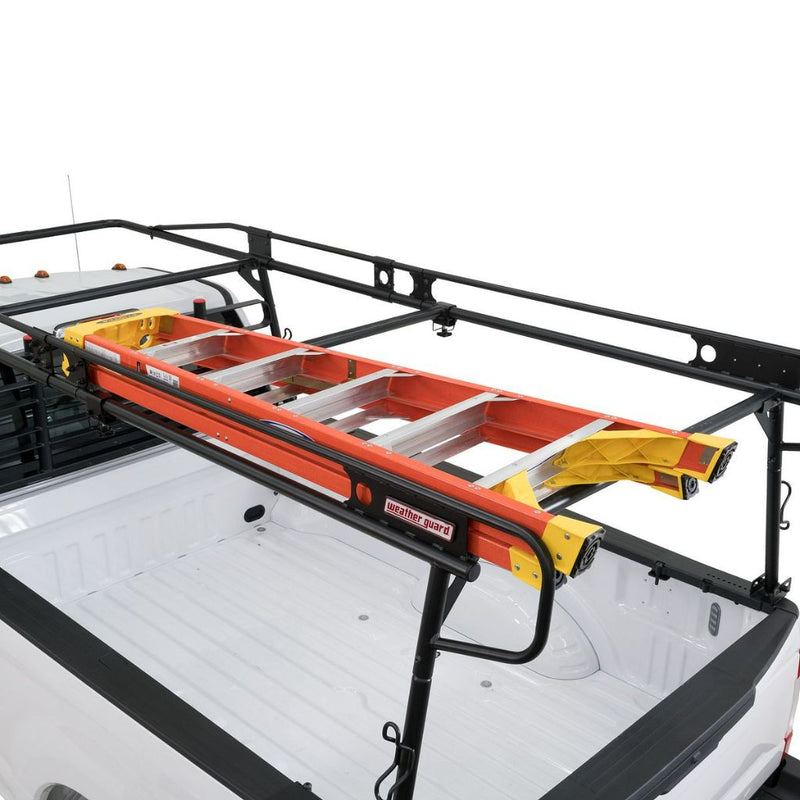

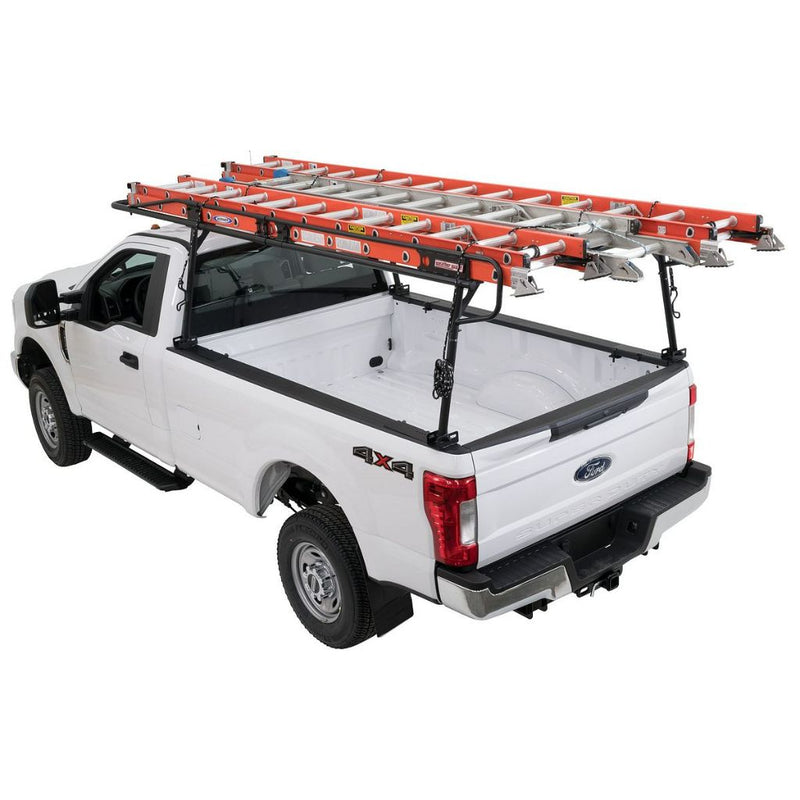

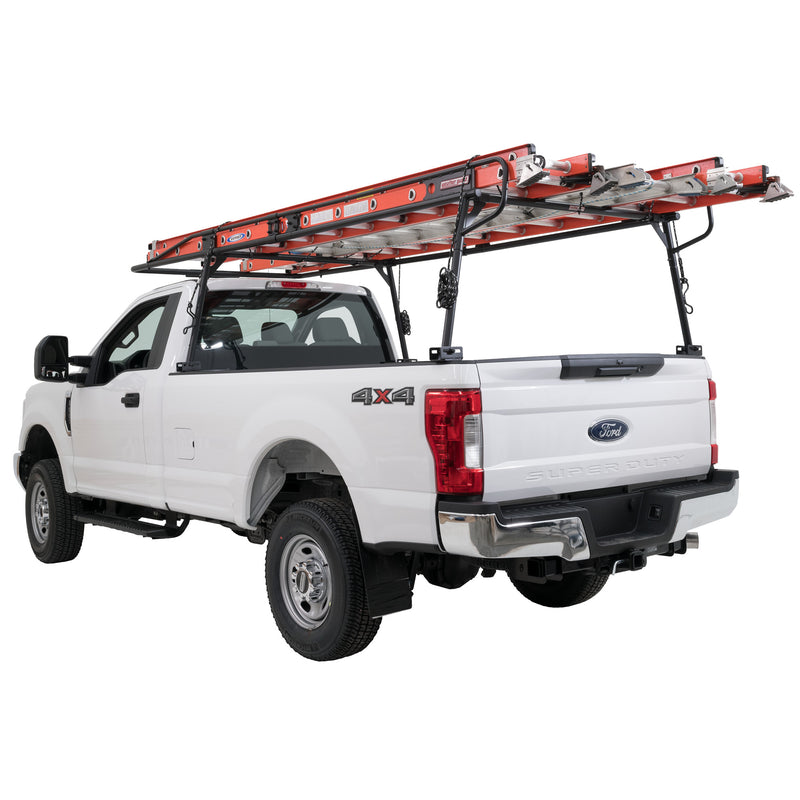

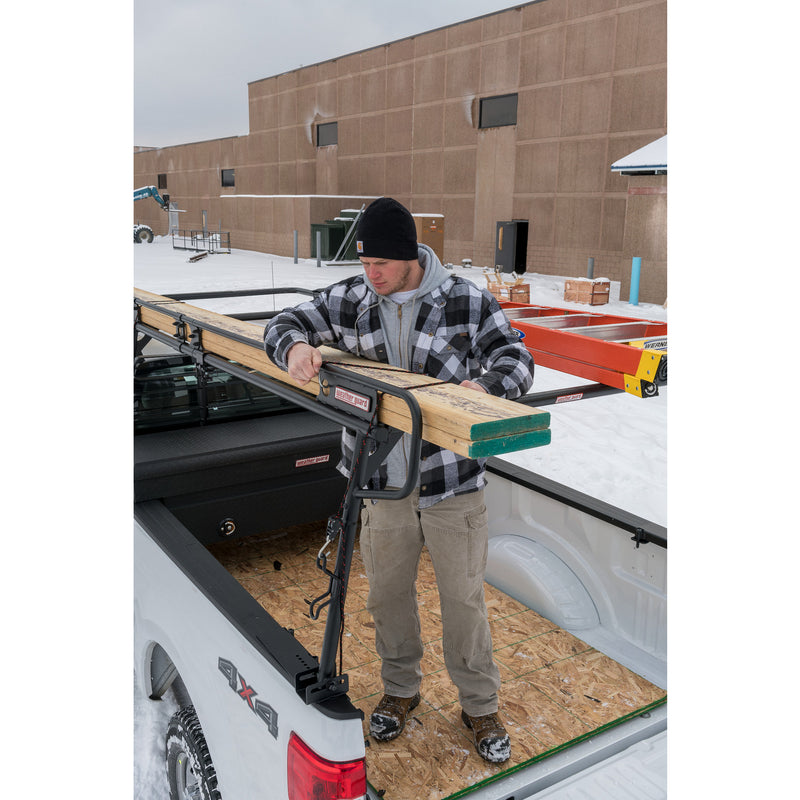

1,000 lb Load Rating The full-size steel rack carries up to 1,000 pounds evenly distributed, so it handles heavy extension ladders, bundles of lumber, pipe and conduit day after day. Formed steel tubing and welded joints give it the backbone to keep working under a full load.

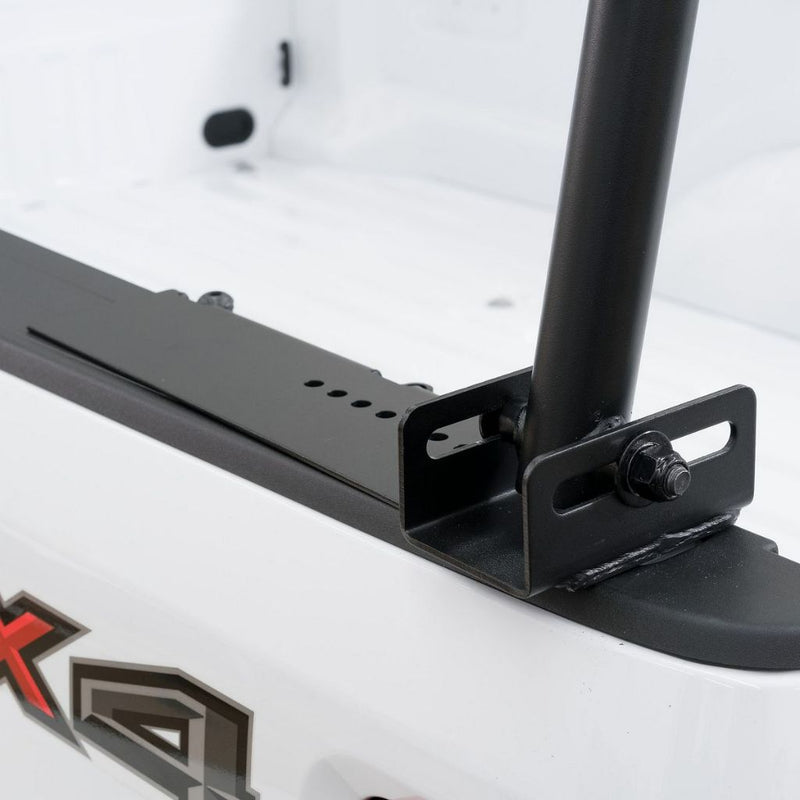

True No-Drill Install The rack clamps into your bed stake pockets with high-strength mounting hardware, so you never drill a hole in your bed rails. That protects your truck from rust and keeps the rack easy to remove or move to your next truck down the road.
Adjustable For Full-Size Beds The front legs slide to match your bed length, giving one rack a universal fit across full-size short and long beds. Set it once to your truck and the crossbars line up right where you need them over the cab and tailgate.

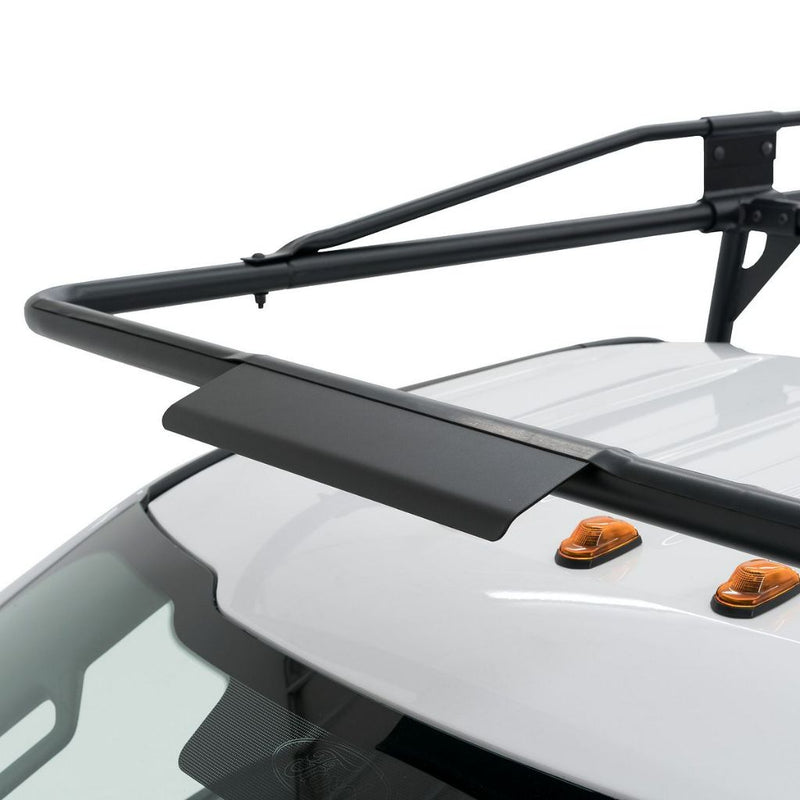

Welded Airfoil Cuts Drag A welded airfoil on the front cross member deflects wind up and over your load. That trims drag and cuts down the wind noise and buffeting you get from an open rack at highway speed.

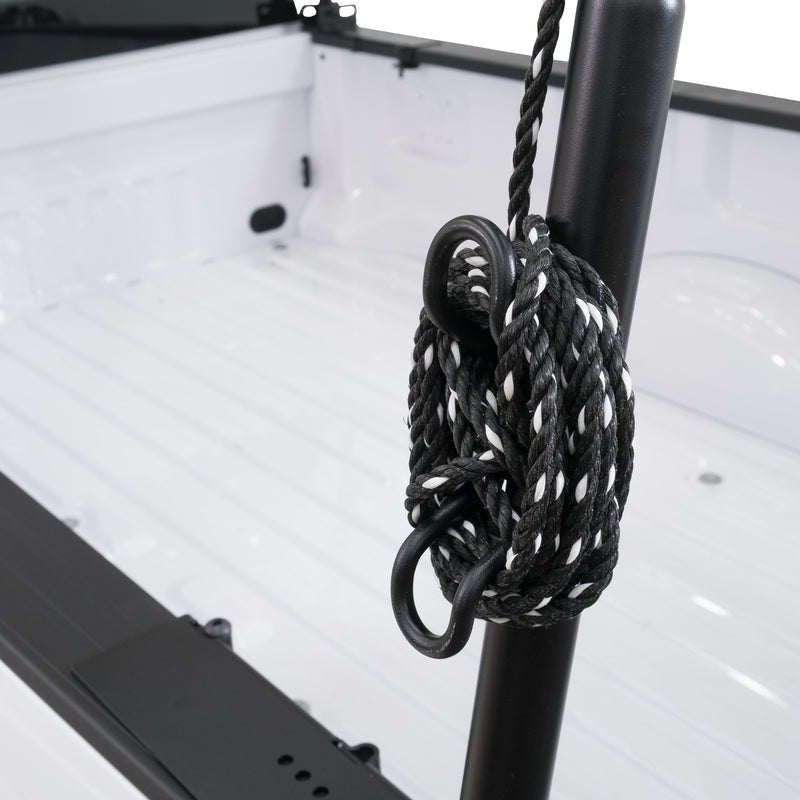

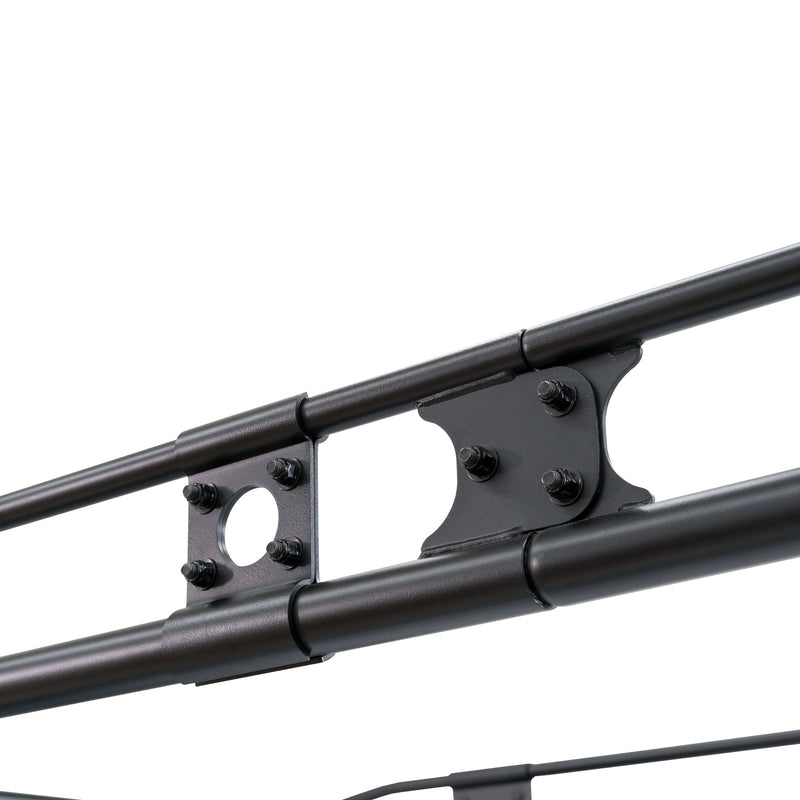

Tie-Downs All Around Every leg has a built-in tie-down loop and the side rails add four more anchor points, so you can strap loads down tight from multiple angles. Long, awkward loads stay put whether you are on the highway or a rough site road.

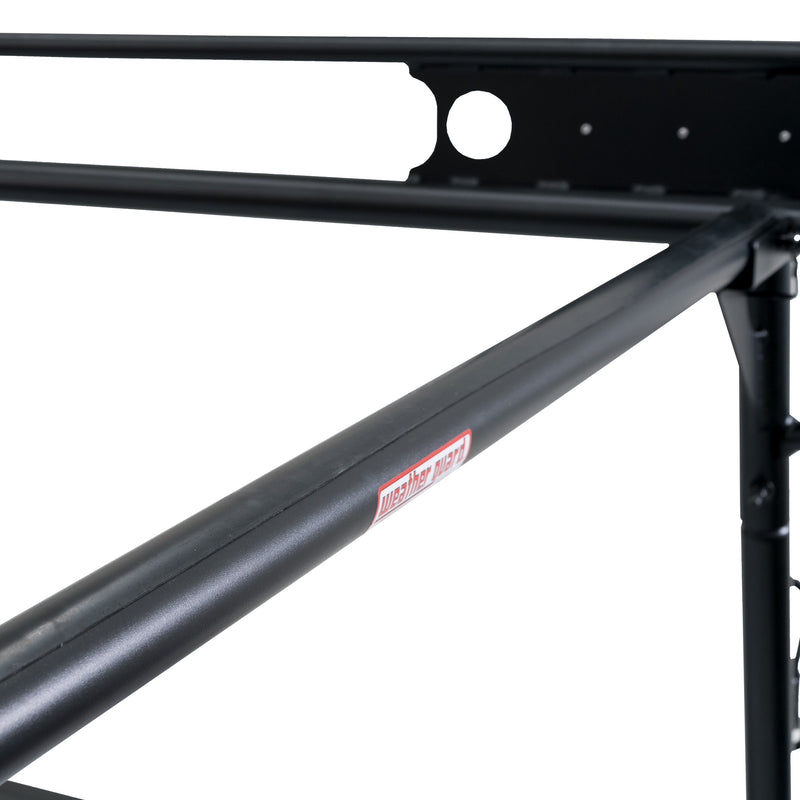

Matte Black Steel Build Formed steel legs, rails and cross members wear a matte black powder coat that stands up to sun, salt and scrapes. Removable pins on the rear cross member let you pull that bar in seconds to drop in tall or bulky loads.
Fit guidance: This is a universal full-size rack rather than a bolt-on for one model. Adjustable front legs let it match full-size short and long beds, and it mounts with no-drill clamps that seat in the bed's stake pockets, so the bed must have factory stake pockets. 2016 and newer Chevrolet and GMC trucks use the included no-drill installation kit. The rack stands about 35.9" above the bed rails, so check garage, carport and drive-thru clearance before ordering, and always measure your bed and confirm your load is rated and strapped within the 1,000 lb evenly distributed limit.
Specifications
Load Capacity: 1,000 lb, evenly distributed
Overall Width: 72.7"
Overall Height: 35.9" (over-cab height)
Legs: 1" x 2" 14-gauge steel wall tubing (4 legs)
Cross Members: Formed 7- and 12-gauge steel (3 cross members, front is airfoil)
Side Rails: 1" x 1-1/2" 11-gauge steel wall tubing (2 rails)
Mounting: True no-drill, stake pockets with high-strength clamps
Front Legs: Adjustable for full-size bed length (universal fit)
Airfoil: Welded front airfoil to reduce drag
Tie-Down Points: Loop on each leg plus 4 points on the side members
Rear Cross Member: Removable pins for quick take-off and loading
Finish: Matte Black powder coat
Weight: About 160.5 lb
Warranty: Limited Lifetime
Material: Steel
Assembled Dimensions: 154"L x 72-3/4"W x 35-7/8"H
Shipping Dimensions: About 79"L x 10-3/4"W x 20-1/2"H, ships knocked down
Mounting Method: No-drill, the legs clamp into the bed stake pockets
Install Time: About 1 hour
Made In: China
Installation
Type: Bed stake-pocket mount, no-drill · Time: About 1 hour · Tools: Basic socket and wrench set; no drilling required on trucks with standard stake pockets · Difficulty: Easy to moderate, a second person helps when lifting and setting the rack
Assemble the four legs, two side rails and three cross members, set the rack into the bed, then seat and tighten the high-strength clamps in the stake pockets so nothing is drilled. On 2016 and newer Chevrolet and GMC trucks use the included no-drill kit. Slide the front legs to fit your bed length so the crossbars sit right over the cab, then load and strap using the leg loops and side-rail tie-down points. Follow the Weather Guard install instructions for clamp torque and placement, and re-check the clamps after the first loaded drive.
Watch the installation walkthrough:
Resources
Everything you need for your Weather Guard Full-Size Steel Truck Rack, 1,000 lb, Matte Black, in one place.
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWeather Guard Full-Size Steel Truck Rack, 1,000 lb, Matte Black (1275-52-02)
Weather Guard's Defender Series install video shows the lightweight aluminum truck rack going onto a pickup with no drilling required. You see the compression clamps grip the bed rails and the crossbars set up to carry ladders, lumber and pipe, rated to about 800 pounds. It makes clear how quickly the rack mounts and how the ladder stops keep a load in place. It is a helpful look at the rack in place before you buy or install your own.
Weather Guard Headache Rack Install Guide
Weather Guard's step-by-step guide covers mounting a headache rack, also called a cab protector, behind the cab. You see how the rack bolts up to shield the back window from shifting ladders, lumber and cargo. It walks through the hardware and placement so the rack sits square and solid. Coming straight from the manufacturer, it is the most reliable reference for installing and understanding the rack.
Best Upgrade for Your Truck
This is Weather Guard's own brand film about outfitting a working pickup, built on the idea that the truck should already be loaded and organized before the day starts. It puts the bed and rail equipment in the context of a real work day rather than a spec sheet.
Watch it if you are still deciding how much storage a truck actually needs. It is the clearest short look at how Weather Guard boxes, racks and drawer units are meant to work together on one vehicle, and it comes straight from the manufacturer rather than a reseller.
Frequently Asked Questions
Straight answers on specs, fit and support
Will this rack fit my truck?
It is designed as a universal full-size rack. The front legs adjust to match full-size short and long beds, and it clamps into your factory stake pockets with no drilling, so your bed needs standard stake pockets. 2016 and newer Chevrolet and GMC trucks use the included no-drill kit. It is not made for mid-size or compact trucks.
Do I have to drill holes in my truck?
No. This is a true no-drill rack that seats in the bed's stake pockets and locks down with high-strength clamps. That keeps your bed rails intact and rust-free and makes the rack easy to remove later or move to another truck.
How much weight can it carry?
The rack is rated for up to 1,000 pounds evenly distributed. Spread heavy loads across both crossbars, strap them down at several points, and stay within that limit for safe hauling.
Does the rack cause a lot of wind noise?
A welded airfoil on the front cross member pushes air up and over your load, which cuts drag and reduces the wind noise and buffeting you get from an open rack at highway speed.
Can I get into the bed with the rack installed?
Yes. The legs sit at the bed rails and leave the bed floor open, and the rear cross member has removable pins so you can pull that bar in seconds to load tall or bulky items, then drop it back in.
What is the finish and is it covered by a warranty?
It is formed steel with a matte black powder coat that resists sun, salt and scrapes, and it is backed by a Weather Guard Limited Lifetime Warranty against defects in materials and workmanship.
