Warn ZEON XC 10-S Winch, 10,000 lb Low-Profile with 100' Spydura Synthetic Rope (110510)

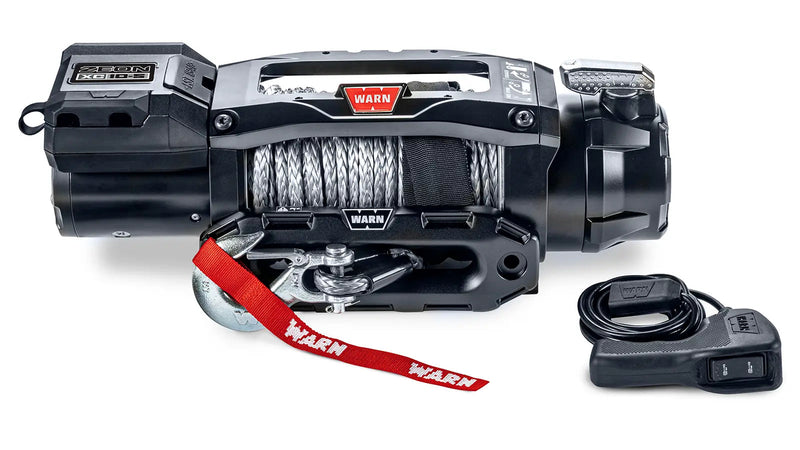

If the winch has to disappear behind the bumper, the ZEON XC is the one Warn built for it. The XC 10-S delivers 10,000 lb of single-line pull in a package just 7.83" tall and 22.06" long, because the entire control pack sits below the top of the tie plate instead of riding on top of the drum like a conventional winch. That is what makes it work in hidden mounts, stubby bumpers, high-clearance bumpers and vintage applications where a full-height ZEON XD simply will not go. Nothing was traded away to get there: the same 3-stage planetary geartrain and Albright contactor control, the same IP68 submersion and IP69K high-pressure spray sealing, a 408-hour salt-spray finish, and a large-diameter aluminum-alloy drum with Warn's patented rope anchor. It ships with 100' of 3/8" Spydura synthetic rope, Warn's black anodized forged aluminum Epic hawse fairlead, and a ruggedized corded remote with a 12' lead. Engineered, tested and assembled in Clackamas, Oregon.

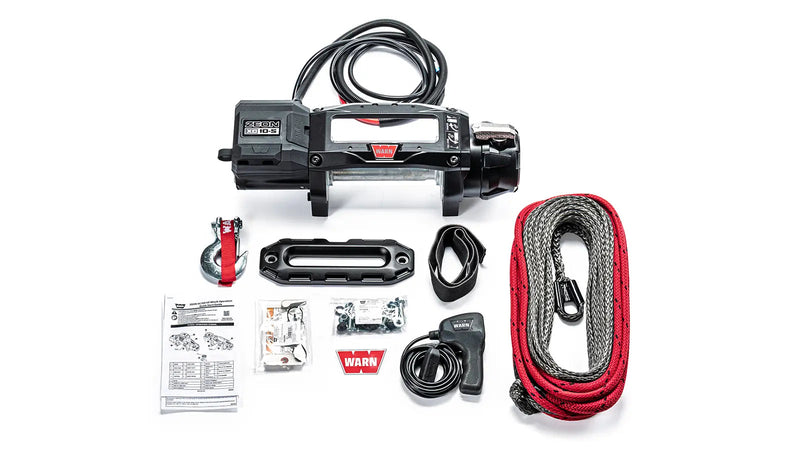

What's Included:

• Warn ZEON XC 10-S winch, 10,000 lb rated line pull
• 3/8" x 100' Spydura synthetic rope, pre-spooled
• Epic black anodized forged aluminum hawse fairlead
• Hook with hook strap
• Ruggedized corded remote with 12' lead
• Mounting hardware kit
• Warn owner's manual and installation instructions

Features

7.83" Tall, Built to Hide

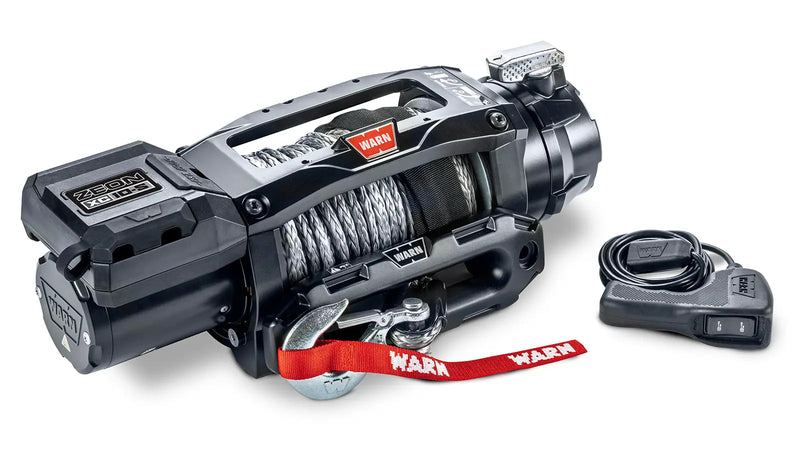

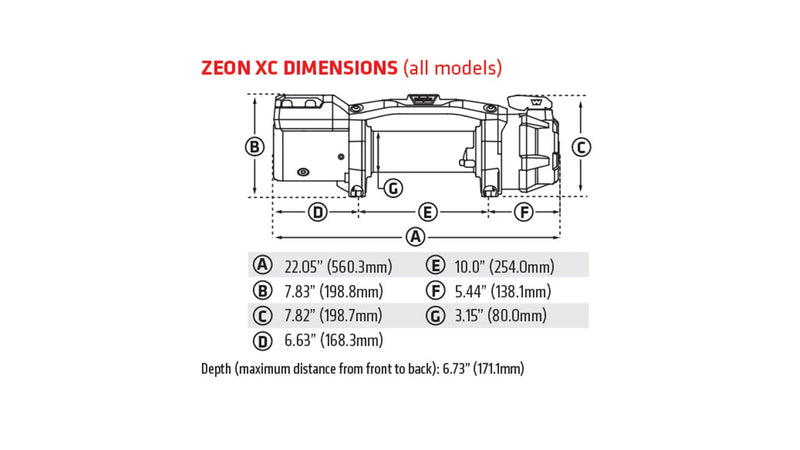

The whole point of the XC. The control pack sits below the top of the tie plate rather than on top of the drum, so overall height is 7.83" and overall length is 22.06", with a maximum front-to-back depth of 6.73". That is what lets a 10,000 lb winch fit into hidden mounts, stubby bumpers, high-clearance bumpers and vintage builds where a full-height winch fouls the grille or the crash bar.

10,000 lb, With Honest Pull-by-Layer Numbers

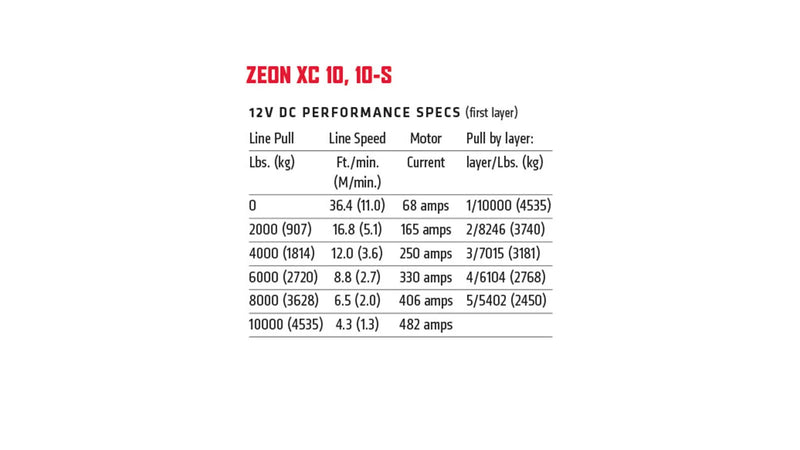

Rated at 10,000 lb on the first drum layer. Warn publishes the rest, which most brands do not: 8,246 lb on the second layer, 7,015 lb on the third, 6,104 lb on the fourth and 5,402 lb on the fifth. That matters in practice, because a short pull with most of the rope still on the drum has far less capacity than the number on the box.

Mounting Flexibility Nothing Else Matches
The remote socket relocates up to 9" from the control pack with no disassembly, so the plug stays reachable behind a bumper. The control pack can be moved off the winch entirely using Warn's relocation kits (PN 111872 for 31", PN 111991 for 78"). The motor rotates up to 90 degrees forward with the control pack following it, and the transmission clocks to five positions. The XC fairleads also work in both feet-down and feet-forward installs, so no separate offset fairlead is needed.

100' of Spydura Synthetic Rope
The 10-S is the only XC that ships with 100' of line rather than 80'. The 3/8" Spydura rope is light, handles easily with one hand, and does not store the energy a steel cable would if it parted. It runs over Warn's Epic black anodized forged aluminum hawse fairlead, and the large-diameter aluminum-alloy drum with its patented rope anchor reduces rope wear and helps dissipate brake heat.

Sealed to IP68 and IP69K
O-ring rubber sealing runs through the complete winch, which is rated IP68 for submersion and IP69K for high-pressure spray. Corrosion-resistant black fasteners and a satin-black powder coat are specified to 408 hours of salt spray.

Low-Profile Albright Control
The all-new low-profile control box carries a Warn-exclusive Albright contactor and bus bars feeding the motor directly. It is the electrical section that usually kills a winch after a few wet seasons, and it is the part Warn re-engineered to fit under the tie plate without downgrading it.

Automatic Load-Holding Cone Brake
A six-segment mechanical cone brake holds the load automatically, which is what gives you controlled, stoppable movement partway through a pull rather than a winch that has to be babysat.

Fitment & Compatibility

Specifications

• Model: ZEON XC 10-S
• Warn Part Number: 110510
• Rated Line Pull (single line, first layer): 10,000 lb
• Pull by Drum Layer: Layer 1: 10,000 lb / Layer 2: 8,246 lb / Layer 3: 7,015 lb / Layer 4: 6,104 lb / Layer 5: 5,402 lb
• No-Load Line Speed: 36.4 ft/min
• Line Speed at Rated Load: 4.3 ft/min
• Motor: 12V DC, series wound
• Motor Current (no load / rated load): 68 amps / 482 amps
• Geartrain: 3-stage planetary
• Gear Ratio: 141:1
• Brake: Automatic, six-segment mechanical cone
• Clutch (free spooling): Rotating ring gear
• Drum Diameter x Length: 3.15" x 9.0", large-diameter aluminum alloy with patented rope anchor
• Rope: 3/8" x 100' Spydura synthetic
• Fairlead: Epic black anodized forged aluminum hawse; works feet-down or feet-forward
• Electrical Controls: Warn exclusive low-profile Albright contactor with bus bars
• Remote Control: Ruggedized corded remote, 12' lead
• Remote Socket: Relocates up to 9" from the control pack without disassembly
• Control Pack Relocation: Optional kits: PN 111872 (31"), PN 111991 (78")
• Motor and Transmission Clocking: Motor rotates up to 90 degrees forward; transmission clocks to 5 positions
• Sealing: IP68 submersion and IP69K high-pressure spray
• Corrosion Protection: 408-hour salt spray, OEM-grade fasteners
• Finish: Satin-black powder coat
• Overall Length: 22.06"
• Overall Height: 7.83"
• Depth (maximum front to back): 6.73"
• Mounting Bolt Pattern: 10" x 4.5"
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72"
• Shipping Weight: About 76 lb
• UPC: 012748110798
• Warranty: Limited lifetime mechanical, 7 years electrical
• Assembled In: Clackamas, Oregon, USA
