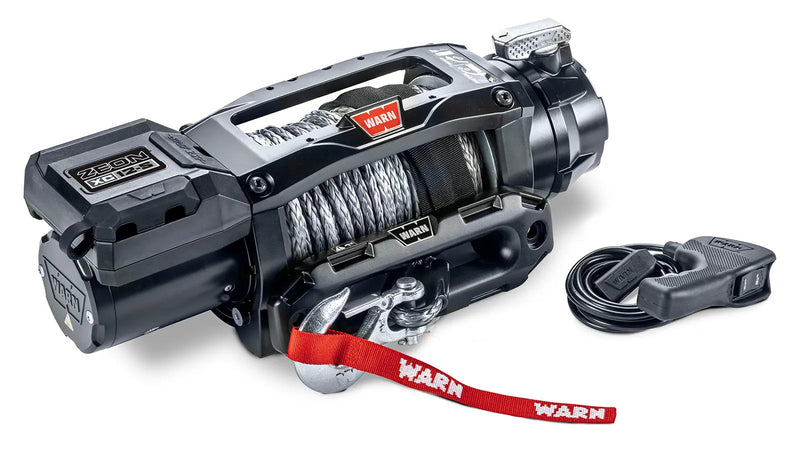

Twelve thousand pounds of pull in a winch that is only 7.83" tall is the trick the ZEON XC 12-S pulls off, and it is why this model ends up in so many full-size truck builds where the bumper has to keep its factory lines. Warn moved the entire control pack below the top of the tie plate, which drops the height by nearly three inches against a full-height ZEON XD without giving up the geartrain, the Albright contactor control, or the IP68 and IP69K sealing. What you get is a serious recovery winch for a loaded half-ton or a 3/4-ton that will actually fit behind a stubby, a high-clearance bumper or a hidden mount. It ships with 80' of 3/8" Spydura Pro synthetic rope on a large-diameter aluminum-alloy drum, Warn's Epic black anodized forged aluminum hawse fairlead, and a ruggedized corded remote on a 12' lead. Engineered, tested and assembled in Clackamas, Oregon.

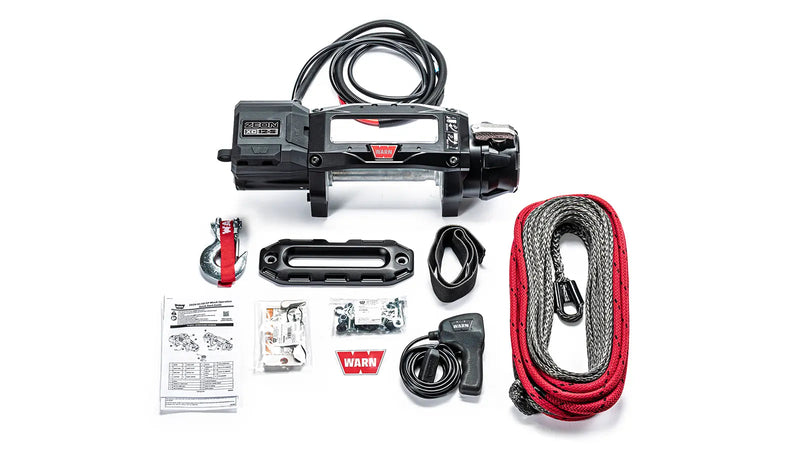

What's Included:
Warn ZEON XC 12-S winch, 12,000 lb rated line pull
3/8" x 80' Spydura Pro synthetic rope, pre-spooled
Epic black anodized forged aluminum hawse fairlead
Hook with hook strap
Ruggedized corded remote with 12' lead
Mounting hardware kit
Warn owner's manual and installation instructions
Features

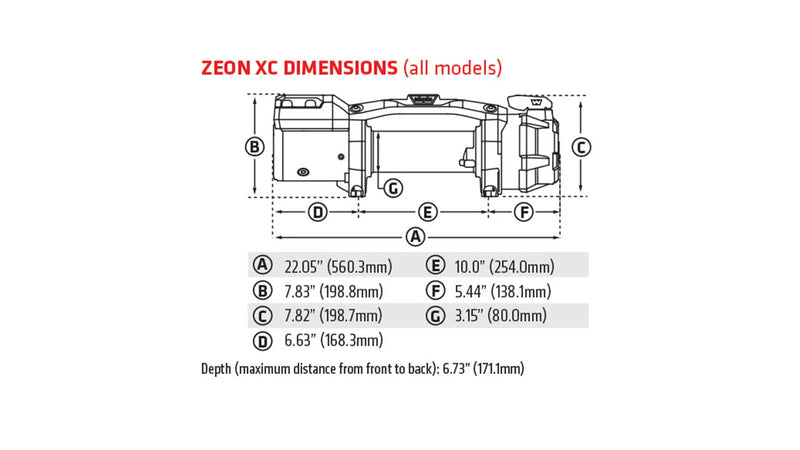

12,000 lb in a 7.83" Tall Package This is the combination that sells the XC. Twelve thousand pounds of single-line pull, in a winch 22.06" long, 7.83" tall and 6.73" deep front to back, because the control pack lives below the tie plate rather than on top of the drum. A full-height 12,000 lb winch stands 10.52" tall and simply will not fit the hidden and stubby-bumper installs this one drops into.

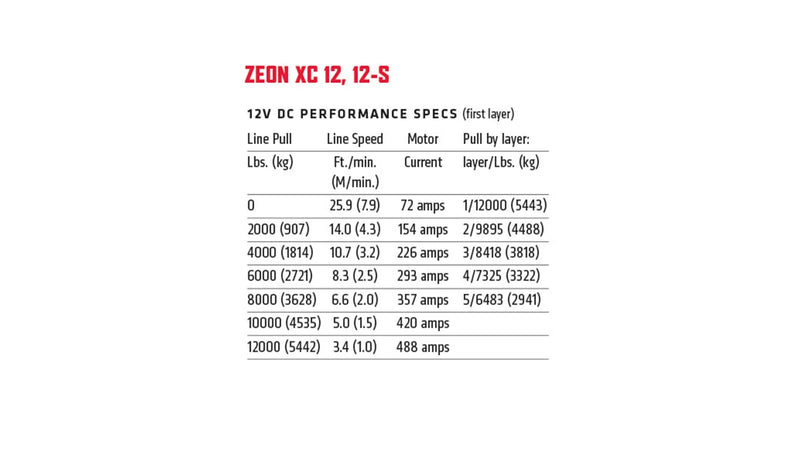

Warn Publishes the Pull-by-Layer Numbers Rated 12,000 lb on the first drum layer, then 9,895 lb on the second, 8,418 lb on the third, 7,325 lb on the fourth and 6,483 lb on the fifth. Most brands quote only the first number. Knowing the rest is what stops you attempting a 10,000 lb pull with the rope still wound tight on the drum.

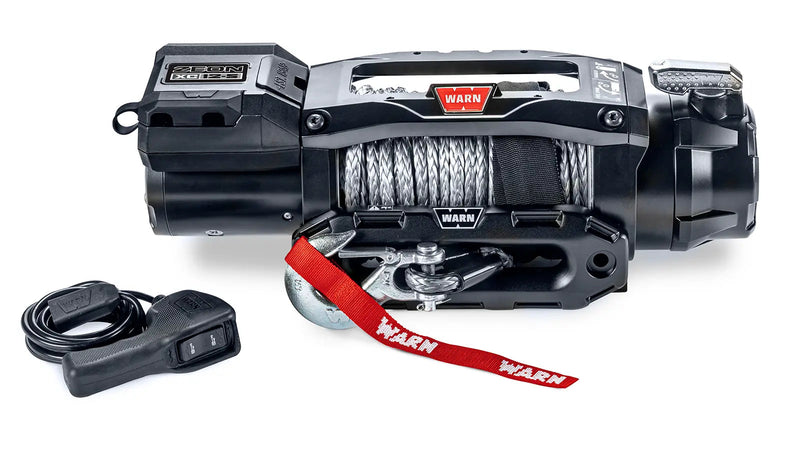

Spydura Pro Rope With Heat-Resistant Wraps The 12-S steps up to Spydura Pro: 3/8" synthetic with an abrasion sleeve and heat-resistant inner wraps that shield the line from brake heat radiating off the drum on long, loaded pulls. It runs over Warn's Epic black anodized forged aluminum hawse fairlead, and the large-diameter aluminum-alloy drum with its patented rope anchor helps dissipate that heat in the first place.
Mounting Flexibility Nothing Else Matches The remote socket relocates up to 9" from the control pack with no disassembly. The control pack can be moved off the winch entirely with Warn's relocation kits (PN 111872 for 31", PN 111991 for 78"). The motor rotates up to 90 degrees forward with the control pack following it, and the transmission clocks to five positions. The XC fairleads also work feet-down or feet-forward, so no separate offset fairlead is needed.
Sealed to IP68 and IP69K O-ring rubber sealing runs through the complete winch, rated IP68 for submersion and IP69K for high-pressure spray. Corrosion-resistant black fasteners and a satin-black powder coat are specified to 408 hours of salt spray.
Low-Profile Albright Control The all-new low-profile control box carries a Warn-exclusive Albright contactor with bus bars feeding the motor directly. Warn shrank the package to fit under the tie plate without downgrading the part of a winch that fails first.
Automatic Load-Holding Cone Brake A six-segment mechanical cone brake holds the load automatically, giving controlled, stoppable movement partway through a pull. At 12,000 lb that control is the difference between managing a recovery and reacting to one.
● Works, but the XC 10-S is the better size and price match
1-ton trucks and camper rigs
● Step up to the XC 14-S
Fit guidance: This is a universal-fit winch, not a vehicle-specific kit. It uses the industry-standard 10" x 4.5" 4-bolt pattern and measures 22.06" long, 7.83" tall and 6.73" deep front to back. Warn's sizing guidance is roughly 1.5 times your vehicle's loaded weight, so 12,000 lb covers rigs up to about 8,000 lb, which is where a loaded half-ton or a 3/4-ton sits. Check the maximum winch dimensions published by your specific mount before ordering, and note that a fully concealed install may also need the optional control pack relocation kit. The mount is sold separately.
Specifications
Model: ZEON XC 12-S
Warn Part Number: 110512
Rated Line Pull (single line, first layer): 12,000 lb
Motor and Transmission Clocking: Motor rotates up to 90 degrees forward; transmission clocks to 5 positions
Sealing: IP68 submersion and IP69K high-pressure spray
Corrosion Protection: 408-hour salt spray, OEM-grade fasteners
Finish: Satin-black powder coat
Overall Length: 22.06"
Overall Height: 7.83"
Depth (maximum front to back): 6.73"
Mounting Bolt Pattern: 10" x 4.5"
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72"
Shipping Weight: About 78 lb
UPC: 012748110804
Warranty: Limited lifetime mechanical, 7 years electrical
Assembled In: Clackamas, Oregon, USA
Installation
Type: Bolt-in to a winch mount, plate or bumper with the standard 10" x 4.5" 4-bolt pattern; wiring direct to the battery · Time: About 1 to 2 hours · Tools: Metric socket set, torque wrench, battery terminal wrench; a second person to lift the winch into the mount · Difficulty: Intermediate, DIY-friendly with basic electrical experience
Set the winch into the mount and torque the four bolts, fit the Epic hawse fairlead, then route the 2 gauge battery leads clear of the exhaust and any moving steering or suspension parts. Decide where the remote socket will live before you refit the bumper: it relocates up to 9" from the control pack with no disassembly. For a fully hidden install, order the control pack relocation kit (PN 111872 for 31", PN 111991 for 78"). At 488 amps of rated-load draw, confirm the battery meets the 650 CCA minimum, then cycle the winch in and out under no load.
Watch the model-specific installation walkthrough:
Resources
Everything you need for your Warn ZEON XC 12-S Winch, in one place.
Warranty. Limited lifetime mechanical warranty and 7-year electrical warranty from Warn Industries, backed by a global service network and Warn's US-based customer service team. Rope, finish, and damage from overloading, misuse or improper installation are not covered.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery equipment since 1948, when the company's locking hub turned surplus military Jeeps into usable civilian vehicles. Winches followed, and for most of the last half-century a Warn winch has been the default answer on a truck bumper. Warn designs, tests and assembles its premium winches at its own ISO-quality facility in Clackamas, Oregon, and publishes real performance data, including line speed and motor current at every load point and pulling capacity at every drum layer, rather than a single headline number.
The ZEON XC is the compact member of that premium family. It is built on the ZEON XD foundation but reshaped around an all-new low-profile control box that sits below the winch tie plate, with a bus bar connection to the motor and a Warn-exclusive low-profile Albright contactor. The remote socket relocates up to 9" from the control pack without disassembly, the control pack itself can be moved off the winch entirely with Warn's relocation kits, the motor rotates up to 90 degrees forward, and the transmission clocks to five different positions. That flexibility is why the XC ends up in the installs nothing else fits. It carries a limited lifetime mechanical warranty and a seven-year electrical warranty through a global service network.
Prestige Truck is an authorized Warn dealer. Every winch we ship is new, factory-sealed, covered by the full Warn factory warranty, and supported by Warn's US-based service team and parts supply.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWarn ZEON XC 12-S Winch, 12,000 lb Low-Profile with 80' Spydura Pro Synthetic Rope (110512)
A short from Warn showing the XC line working.
The clearest look at how little space the winch occupies once it is mounted behind a bumper.
How To Install Winch Rope On A Warn ZEON
Warn's guide to spooling rope onto a ZEON drum and seating it in the patented rope anchor.
Your 12-S arrives with the Spydura Pro rope fitted, so keep this for the first re-spool or a rope replacement.
Frequently Asked Questions
Straight answers on specs, fit and support
XC 12-S or XD 12-S? They both pull 12,000 lb.
Space is the deciding factor. The XC is 7.83" tall with the control pack below the tie plate; the XD is 10.52" tall with it on top. If you are running a hidden mount, a stubby or a high-clearance bumper, the XC is the one that fits. If you have an open winch bumper with room, the XD adds HUB wireless control and full metal armor for a little more money.
How much can it really pull with rope on the drum?
Warn publishes the whole curve for this model: 12,000 lb on the first layer, 9,895 lb on the second, 8,418 lb on the third, 7,325 lb on the fourth and 6,483 lb on the fifth. Spool out more rope before a heavy pull so you are working closer to the drum, or add a snatch block to halve the line load.
What is Spydura Pro, and why this rope?
It is Warn's higher-spec synthetic line: the same 3/8" diameter and abrasion sleeve as standard Spydura, with heat-resistant inner wraps that protect it from the heat the cone brake puts into the drum during a long loaded pull. At 12,000 lb that heat is real, which is why the 12-S ships with Pro rather than standard rope.
Can the control pack be moved for a fully hidden install?
Yes. The remote socket alone relocates up to 9" with no disassembly, which is often enough. If the pack itself has to move, Warn sells relocation kits: PN 111872 gives 31" and PN 111991 gives 78". Both are separate purchases, so budget for one if the winch is going completely out of sight.
Does it work with wireless control?
Not out of the box. The XC ships with a ruggedized corded remote on a 12' lead. Warn's HUB wireless receiver is integrated into the ZEON XD and ZEON XP control packs, not the XC's low-profile pack. If phone control is a requirement, the XD 12-S is the model to look at.
Will the fairlead work if the winch mounts feet-forward?
Yes. Warn designed the XC fairleads to work in both feet-down and feet-forward orientations, so you do not need a separate offset fairlead the way some installs require. Combined with the 90-degree motor rotation and five transmission clocking positions, that is what makes the XC fit awkward mounts.
