Warn's ZEON XD and M8274 guides give the same order: mount the winch and attach the hook first, then connect the red Power cable and black Ground cable at the battery and place the supplied terminal boots. The ZEON quick start guide prints the battery rule as a warning: red (+) only to the positive terminal and black (-) only to the negative terminal.
The steps below come from Warn's guides for the ZEON XD 10-S (from $1,649.99) and the M8274 (from $3,212.99): the ZEON XD installation guide, the ZEON XC/XD/XP operation quick start guide and the M8274 installation guide. Where a step is our own advice and not in the guides, the text says so.
The order from Warn's ZEON XD and M8274 guides
- Mount the winch and attach the hook. The wiring comes last.
- Take off jewelry and put on eye protection, then disconnect the negative battery cable (standard for battery work; neither guide prints that step).
- Route the Power (red) and Ground (black) cables clear of edges, heat, moving parts and the battery terminals.
- Connect red (+) only to the positive battery terminal and black (-) only to the negative terminal, as the ZEON quick start guide warns.
- Place the supplied terminal boots and cover every exposed wire and terminal.
ZEON XD 10-S
Warn ZEON XD 10-S Winch, 10,000 lb with 100' Spydura Synthetic Rope (110010)
From $1,649.99 · The winch the ZEON steps below are written for: 10,000 lb with 100 feet of Spydura synthetic rope.
What to have ready before you wire a Warn winch
Wiring is the last job: the ZEON XD and M8274 guides both say to complete the winch installation and hook attachment before installing the wiring. Neither guide gives an install time.
- The winch's Power (red) and Ground (black) cables and the supplied terminal boots.
- Eye protection, and no jewelry on you while you work at the battery.
- The guide from your winch's box, open beside you.
- A torque wrench for the mounting bolts: 41 to 47 Nm (30 to 35 ft lb) on the ZEON XD, 45 to 50 ft lb (61 to 68 Nm) on the M8274.
Neither guide prints a battery-disconnect step. Disconnect the negative battery cable before you start anyway, as for any battery work. Reconnect it only when every cable and boot is in place.
Warn winch wiring diagram: what connects to what
Both guides print a wiring drawing with labels on the cables. On a ZEON the hookup comes down to three connections:
- Battery positive (+) terminal to the winch through the red Power cable.
- Battery negative (-) terminal to the winch through the black Ground cable.
- Remote control into the remote socket.
The table sets the two winches side by side, with control and motor details from each listing.
| Part | ZEON XD 10-S | M8274 |
|---|---|---|
| Power cable | Labeled Power (red) Cable. The quick start guide has the red (+) cable go only to the battery's positive terminal | Labeled Power (Red) Cable |
| Ground cable | Labeled Ground (black) Cable. The quick start guide has the black (-) cable go only to the battery's negative terminal | Labeled Ground (Black) Cable. The same drawing carries a third label, Ground Wire |
| Terminal boots | Supplied boots go on the wires and terminals | Supplied boots go on the wires and terminals |
| Control pack | Part 7 on the quick start guide's parts list. A Warn HUB Wireless Receiver comes with the winch | IP68 waterproof contactor in a high-strength polymer control pack |
| Remote | Remote socket (part 6) and remote control (part 8) | Wired remote |
| Motor | 12V DC series wound | 12V DC, 6 hp series wound |
| Mounting torque | 41 to 47 Nm (30 to 35 ft lb) | 45 to 50 ft lb (61 to 68 Nm) |
Both cables carry the motor's full draw: the ZEON XD 10-S listing shows 64 amps with no load and 458 amps at rated load, and the ZEON XC 10 listing shows 68 and 482 amps.
How to wire a Warn ZEON XD 10-S, step by step
These steps follow the ZEON XD installation guide and the ZEON XC/XD/XP operation quick start guide. The XC 10 shares that quick start guide, so its battery rule is the same; for the rest of an XC 10 install, use Warn's guide for that model.
Step 1: Mount the winch and attach the hook
Position the fairlead with its warning visible on top and use class 8.8 metric (grade 5) or better hardware. Never weld the mounting bolts or use bolts that are too long. Torque is 41 to 47 Nm (30 to 35 ft lb) on a 10 by 4.5 inch (254 by 114 mm) bolt pattern. The guide says to confirm bolt length for proper thread engagement, and its table lists bolt length by plate thickness: 35 mm for a 7 mm (1/4 inch) plate and 40 mm for a 10 mm (3/8 inch) or 13 mm (1/2 inch) plate.
Step 2: Make the battery side safe
Take off jewelry and put on eye protection, which the guide ties to making battery connections. Then disconnect the negative battery cable. The guide does not print that step, but it is standard for battery work; leave the cable off until every connection and boot is done.
Step 3: Route the Power (red) and Ground (black) cables
The wiring page has four routing rules. Never route electrical cables across sharp edges, near parts that get hot, over battery terminals or through or near moving parts.
Step 4: Connect the cables and place the boots
Connect the red (+) power cable only to the positive (+) terminal of the battery. Connect the black ground (-) power cable only to the negative (-) terminal. Then place the supplied terminal boots on the wires and terminals and insulate and protect anything left exposed.
Step 5: Plug in the remote and run the system check
Plug the corded remote into its remote socket, reconnect the negative battery cable and work through the quick start guide's System Check page before the first pull.
ZEON XC 10
Warn ZEON XC 10 Winch, 10,000 lb Low-Profile with 80' Steel Rope and Roller Fairlead (110410)
From $1,529.99 · Shares the ZEON quick start guide: 10,000 lb on 80 feet of steel rope with a roller fairlead.
How to wire a Warn M8274, step by step
The M8274 guide is four pages, and its mounting and wiring warnings match the ZEON XD guide word for word. The torque, the bolt-length table, the labels on the wiring drawing and a note for the M8274-S differ.
- Mount the winch and attach the hook first. Use class 8.8 metric (grade 5) or better hardware and torque it to 45 to 50 ft lb (61 to 68 Nm). The guide's table lists 1.5 inch (40 mm) bolts for a 1/4 inch (7 mm) or 3/8 inch (10 mm) plate and 1.75 inch (45 mm) bolts for a 1/2 inch (13 mm) plate. That last row carries a "Not supplied" note.
- Remove jewelry and put on eye protection, as the guide says for battery connections. Disconnect the negative battery cable as well: the guide does not list that step, but it is standard for battery work.
- Find the three labels on the wiring drawing: Ground (Black) Cable, Power (Red) Cable and Ground Wire.
- Route them clear of sharp edges, heat, moving parts and the battery terminals.
- Connect them as the drawing shows, place the supplied terminal boots and protect every exposed terminal. Reconnect the negative battery cable only after that.
- On an M8274-S, install the winch completely and verify that it runs before you install the rope.
The photo shows the control pack and the free-spool clutch dial.
M8274
Warn M8274 Self-Recovery Winch, 10,000 lb, 125' Steel Rope and Roller Fairlead (106170)
From $3,212.99 · 10,000 lb on 125 feet of 3/8-inch steel rope, with an IP68 waterproof contactor in the control pack.
The control pack, remote socket and HUB receiver
Three of the quick start guide's eight labeled parts matter for wiring: the remote socket, the control pack and the remote control. The ZEON XD 10-S comes with a corded remote and a Warn HUB Wireless Receiver, which Warn's product page says gives 100 feet or more of range with the WARN HUB app. Its clutch is a rotating ring gear with a stainless steel lever.
If the pack has to move off the winch, Warn's ZEON XD page lists instructions for 31-inch and 78-inch control pack relocation kits, sold separately. The photo above shows the pack separated for relocation.
Other Warn winches: wire them from their own guide
For the M12, the 16.5ti and the VRX 35, wire from the Warn guide for that model. Browse the full range in the Warn collection or the wider winch collection.
12,000 lb truck winch
Warn M12 Self-Recovery Winch, 12,000 lb, 125' Steel Rope and Roller Fairlead (17801)
From $2,409.74 · Removable control pack with a contactor and a remote switch on a 12-foot lead.
One M12 owner of more than five years puts the upkeep in a single sentence:
“The only maintenance I do is keep the battery cables clean where they attach to the battery posts.”
Warn M12 Self-Recovery Winch, 12,000 lb, 125' Steel Rope and Roller Fairlead (17801) owner · 5 out of 5 stars
16,500 lb truck winch

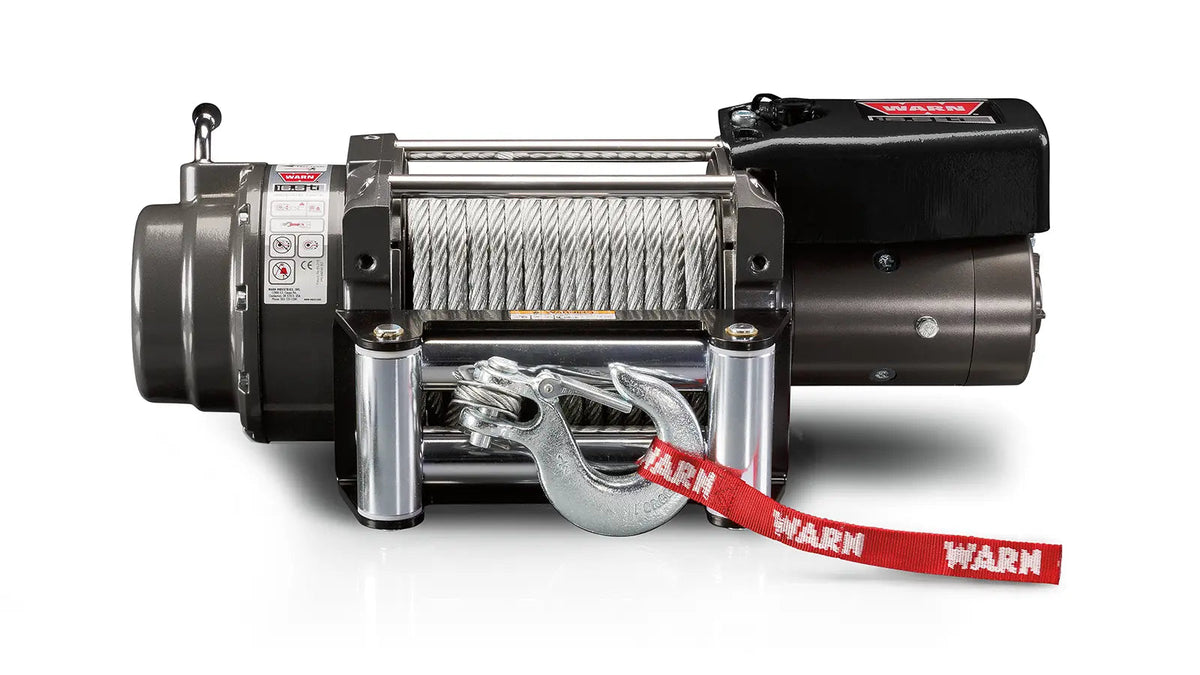

Warn 16.5ti Thermometric Self-Recovery Winch, 16,500 lb, 90' of 7/16" Steel Rope (68801)
From $2,974.99 · Remote switch on a 12-foot lead with a thermometric indicator and an integrated flashlight.
One 16.5ti owner flags the weight before you start:
“Just because of the weight, it might be a two person install.”
Warn 16.5ti Thermometric Self-Recovery Winch, 16,500 lb, 90' of 7/16" Steel Rope (68801) owner · 5 out of 5 stars
Powersports winch
Warn VRX 35 Powersports Winch, 3,500 lb, 50' 7/32" Steel Rope and Roller Fairlead (101035)
From $399.99 · A 3,500 lb winch for ATVs and UTVs, not a truck or SUV winch.
Rope changes what you inspect. The ZEON XD 10-S runs synthetic rope and the M8274 runs steel; synthetic rope versus steel cable sets the two side by side.
Install mistakes and what Warn's guides say
Each row turns a rule from the guides into a check for your own install.
| Mistake | What Warn's guide says | Guide |
|---|---|---|
| A cable laid across the battery terminals | Never route electrical cables over battery terminals | ZEON XD and M8274 |
| A cable near sharp edges, heat or moving parts | Never route cables across sharp edges, near parts that get hot or through or near moving parts | ZEON XD and M8274 |
| Bare terminals | Insulate and protect all exposed wiring and terminals, and place the supplied boots on wires and terminals | ZEON XD and M8274 |
| Red or black cable on the wrong post | Red (+) power cable only to the positive terminal and black ground (-) power cable only to the negative terminal | ZEON quick start |
| Fewer than 10 wraps left on the drum, or damaged rope | Never operate with fewer than 10 wraps of rope on the drum, because the rope attachment is not designed to hold a load. Replace frayed, kinked or damaged rope immediately | ZEON XD |
Check the winch before the first pull
Run the ZEON quick start guide's System Check before you load the winch. It covers remote control operation and the clutch lever's two positions, freespool and engaged. On an M8274-S, Warn says to verify winch operation before installing the rope.
The ZEON XD guide's rope page adds two checks. Inspect the rope, hook and slings before operating. Wind the rope on the bottom (mount side) of the drum.
Warn's own quick start video on technique:
Warn winch solenoid wiring diagram: what the current guides show
Some searches for Warn wiring ask for a four-solenoid diagram. The wiring pages of the ZEON XD and M8274 guides label cables, not a solenoid pack. On these winches a contactor in the control pack does the switching. The M8274 listing names an IP68 waterproof contactor in a high-strength polymer control pack and the M12 listing a removable control pack with a contactor. Warn's ZEON XD page lists contactor control with bus bars.
If your winch is an older Warn with a separate solenoid pack, wire it from the guide that came with it or call Warn's customer service line, which is printed in both guides. For how the parts fit together, start with what a winch is and how it works.
Frequently asked questions
How do you wire a Warn winch directly to the battery?
Yes, on a ZEON: the quick start guide has the red (+) power cable go only to the battery's positive (+) terminal and the black ground (-) power cable only to the negative (-) terminal. The wiring drawings in the ZEON XD and M8274 guides label only the cables (plus a Ground Wire on the M8274); neither labels a fuse or circuit breaker. Never lay a cable across the battery terminals.
How do you connect a Warn winch?
On the ZEON XD and M8274, Warn's guides have you mount the winch and attach the hook, then wire it. For the wiring, remove jewelry and wear eye protection (the guides' battery-connection warning) and disconnect the negative battery cable (neither guide prints that step). Then route the Power (red) and Ground (black) cables clear of edges, heat and moving parts, connect them at the battery and place the boots. On a ZEON, plug in the remote and run the quick start guide's System Check before the first pull; any other Warn winch wires from the guide for that model.
What size wire does Warn use for its winches?
The ZEON XD and M8274 wiring pages give no gauge. Both label the Power (red) and Ground (black) cables on the drawing and call for the supplied terminal boots, so our advice is to wire the winch with those cables. If you need a different cable, ask Warn's customer service first; the number is printed in the guides.
Is the M8274 wired the same way as the ZEON XD?
Mostly. Both guides carry the same seven wiring warnings and label a red Power cable and a black Ground cable. The M8274 drawing adds a Ground Wire label and the torque differs; the M8274-S also has its own note about verifying that the winch runs before the rope goes on. The red-only-to-positive and black-only-to-negative rule is printed in the ZEON quick start guide, not in the M8274 guide, so wire the M8274 as its drawing shows.
Why does my Warn winch click but not pull?
Neither the ZEON XD nor the M8274 guide has a troubleshooting page, so start with what they cover: both cables on the right posts, tight, booted and undamaged along their route. If it still clicks without pulling, call Warn's customer service (the number is printed in both guides) before you replace any part.
