A winch is a motor-driven drum that winds in a rope or cable to pull a vehicle or load. On a truck it mounts to the front bumper or a winch plate and runs from the truck's battery.
Truck owners use one for self-recovery off-road, pulling a stuck vehicle free and loading heavy gear. A typical example is the Warn ZEON XC 10, a low-profile winch with a 10,000 lb rated line pull and 80' of steel rope, from $1,529.99.
Truck winch
Warn ZEON XC 10 Winch, 10,000 lb Low-Profile with 80' Steel Rope and Roller Fairlead (110410)
From $1,529.99 · For trucks up to about 6,700 lb GVWR by Warn's 1.5 rule. Low-profile, with 80' of steel rope and a roller fairlead.
What is a winch used for?

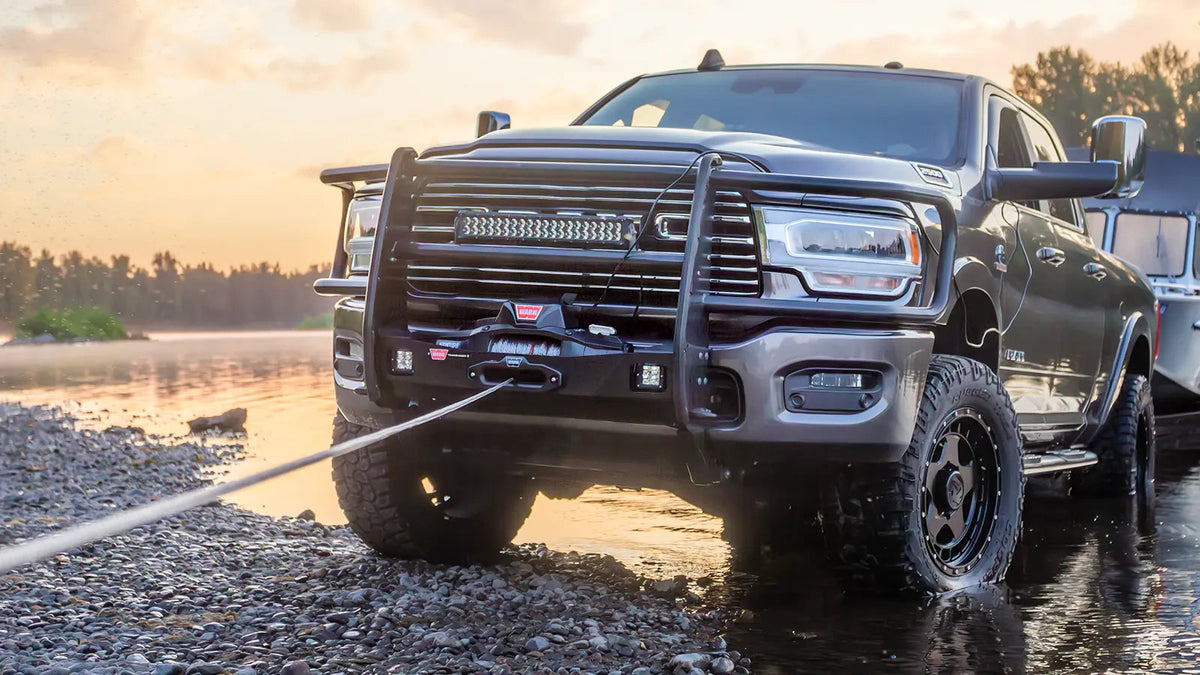

Self-recovery comes first. A self-recovery winch is mounted on your own vehicle, so when the truck is stuck in sand, snow or mud you run the rope out to a solid anchor, hook on and let the winch pull the truck toward it. The listings use that name for the M8274, M12 and 16.5ti. The same winch can pull another stuck vehicle free.
Loading is the other common job. Reviews of the Warn Drill Winch describe winching snowmobiles and ATVs onto a trailer and pulling a half-submerged boat out of the water. One owner wrote:
“Excellent Product.Worked great for winching snowmobiles and atvs onto trailer and truck.”
Warn Drill Winch, 750 lb Portable Winch with 40' of 5/32" Steel Rope (101570) owner · 5 out of 5 stars
How does a truck winch work?
A winch turns the truck's 12-volt power into a slow, strong pull. Warn's Basic Guide to Winching says the motor provides power to the gear mechanism that turns the drum. It adds that the reduction gear converts motor power into a large pulling force. The table sets Warn's description of each part beside what the listings show for the winches we carry.
| Part | What Warn says it does | What the listings show |
|---|---|---|
| Motor | Powers the gear mechanism that turns the drum | 12V DC. M8274: 6 hp series wound. 16.5ti: 4.6 hp Gen II series wound. ZEON XC 10: 68 amps with no load, 482 amps at rated load |
| Gear train | Converts motor power into a large pulling force | 3-stage planetary on the ZEON XC 10 and XD 10-S (141:1), the 16.5ti (315:1) and the VRX 35 (153:1). Spur gear on the M8274 |
| Drum | The cylinder the rope feeds onto | M8274: 3.5" diameter |
| Rope | Its diameter and length are set by the winch's load capacity and design | Steel: M8274 125' of 3/8", XC 10 80', 16.5ti 90' of 7/16". Synthetic: XD 10-S 100' of Spydura |
| Fairlead | Guides the rope onto the drum when you winch at an angle and minimizes damage to the rope | Roller fairlead on the M8274, XC 10, 16.5ti and VRX 35 |
| Brake | Applies automatically to the drum when the motor stops with load on the rope | Automatic on the XC 10, XD 10-S, 16.5ti and VRX 35. The XD 10-S and VRX 35 list it as load-holding |
| Clutch | Disengages the drum from the gear train for freespool | M8274: manual free-spool, stainless steel T-handle. XD 10-S: rotating ring gear, stainless steel clutch lever, manual and remote activated. 16.5ti: rotating ring gear |
| Control | Solenoids switch power to the motor. The remote sets the direction and lets you stand clear of the rope | M8274: wired remote, waterproof IP68 contactor in a polymer control pack. 16.5ti: remote switch on a 12' lead with a thermometric indicator and flashlight |
Warn's quick start guide for the ZEON XC, XD and XP winches shows the clutch lever in two positions, freespool and engaged. In freespool the drum is released from the gear train, so rope pulls out by hand. Warn's Basic Guide to Winching says never to engage or disengage the clutch while the winch is under load, the rope is in tension or the drum is moving. The same quick start guide also includes a system check and a section on stretching new winch rope.
What size winch do I need?
Warn rates a winch by its pull on a single line with the first layer of rope on the drum. Warn's Basic Guide to Winching says the pull decreases as the layers build up. The ZEON XC 10 listing shows how far: 10,000 lb on layer 1, 8,246 lb on layer 2, 7,015 lb on layer 3, 6,104 lb on layer 4 and 5,402 lb on layer 5. Speed falls under load too: the XC 10 takes in rope at 36.4 ft/min with no load and 4.3 ft/min at its rated load.
To pick a size, Warn's guide to choosing a winch says to take your truck's gross vehicle weight rating (GVWR) and multiply it by 1.5. The result is your minimum capacity. GVWR is the truck's maximum loaded weight, so it already counts passengers, cargo and fuel. Divide a winch's rating by 1.5 to see the largest GVWR it covers: about 6,700 lb for a 10,000 lb winch, 8,000 lb for the 12,000 lb Warn M12 (from $2,409.74) and 11,000 lb for the 16,500 lb 16.5ti. Warn notes that the GVWR can often be found on the sticker on the driver's door.
Warn's own worked example, a 2500-series pickup with a 9,900 lb GVWR, points to a 15,000 or 16,500 lb winch rather than a 12,000 lb one. Warn's Basic Guide to Winching uses the same 1.5 multiplier on the gross weight of whatever you intend to pull. It also says not to exceed the rating of the winch or its rope.
Heavy-duty truck winch
Warn 16.5ti Thermometric Self-Recovery Winch, 16,500 lb, 90' of 7/16" Steel Rope (68801)
From $2,974.99 · For heavier trucks up to about 11,000 lb GVWR, listed for the Ford Super Duty and Ram 2500 and 3500. 90' of steel rope and a thermometric remote.
At the other end of the scale, the VRX 35 listing marks it as a powersports winch for ATVs and UTVs, not a truck or SUV winch. At 750 lb, the Drill Winch is far below what the 1.5 rule asks of any truck, so treat it as a tool for moving loads.
Winch types in our range
We carry Warn winches in three groups: truck winches for self-recovery, powersports winches for ATVs and UTVs and a portable Drill Winch that runs from your own drill. In our range truck winches run from about $1,500 to about $3,400. The VRX 35 is under $500. The Drill Winch is under $300. The winches collection lists the rest.
| Winch | Suits | Rated line pull | Rope | From |
|---|---|---|---|---|
| Warn ZEON XC 10 | Trucks to about 6,700 lb GVWR, steel rope | 10,000 lb | 80' steel | $1,529.99 |
| Warn ZEON XD 10-S | Trucks to about 6,700 lb GVWR, synthetic rope | 10,000 lb | 100' Spydura synthetic | $1,649.99 |
| Warn M8274 | Trucks to about 6,700 lb GVWR, upright spur gear design | 10,000 lb | 125' of 3/8" steel | $3,212.99 |
| Warn M12 | Trucks to about 8,000 lb GVWR | 12,000 lb | 125' of 3/8" steel | $2,409.74 |
| Warn 16.5ti | Trucks to about 11,000 lb GVWR | 16,500 lb | 90' of 7/16" steel | $2,974.99 |
| Warn VRX 35 | ATVs and UTVs | 3,500 lb | 50' of 7/32" steel | $399.99 |
| Warn Drill Winch | Moving loads, nothing to install | 750 lb | 40' of 5/32" steel | $239.99 |
Steel rope or synthetic rope?
Steel rope is usually the tougher choice on abrasive ground, while synthetic rope is lighter and easier to handle. The ZEON XC 10, M8274 and 16.5ti use steel. The ZEON XD 10-S comes with 100' of Spydura synthetic rope. The trade-offs are covered in synthetic rope vs steel cable for a truck winch.
Mounting and wiring a winch
A winch bolts to a winch-ready front bumper or a winch plate. Warn's dimension drawing for the ZEON XD 10-S lists a 10" x 4.5" mounting bolt pattern. Check that your bumper or plate is drilled for the pattern of the winch you pick and that its opening leaves room for the winch.
Wiring starts at the battery. Warn's quick start guide for the ZEON XC, XD and XP winches carries two warnings. The red (+) power cable belongs on the battery's positive terminal and nowhere else. The black (-) ground cable belongs on the negative terminal and nowhere else. The remaining connections are in how to wire a Warn winch. Weight matters on the big units, as this 16.5ti owner notes:
“Just because of the weight, it might be a two person install.”
Warn 16.5ti Thermometric Self-Recovery Winch, 16,500 lb, 90' of 7/16" Steel Rope (68801) owner · 5 out of 5 stars
Winch safety
Warn's quick start guide opens with one rule: always read all the product literature before installing the winch. It points owners to Warn's Basic Guide to Winching for the operating rules. The main ones for a first-time owner:
- Wear heavy leather gloves when handling winch rope.
- Always use the hook strap that comes with the winch when you feed rope out or reel it in.
- Stand clear of the rope and load, keep others away and never touch the rope or hook while it is under tension.
- Make sure the anchor will withstand the load and the strap or chain will not slip.
- Never exceed the rated capacity of the winch or its rope. Warn advises a double line through a snatch block to reduce the load on the winch.
- Never use the winch or its rope for towing, because shock loads can damage, overload and break the rope.
- Retire frayed, kinked or damaged rope at once and keep at least 5 wraps of steel rope (10 of synthetic) on the drum.
Warn's own video below covers the basics of winch technique.
Do I need a winch on my truck?
You are a candidate if you drive off-road, especially alone or far from help. The same goes for any truck that sees sand, snow or soft ground. Self-recovery is what a mounted winch is for. By Warn's 1.5 rule, the 10,000 lb ZEON XC 10 and XD 10-S suit trucks up to about 6,700 lb GVWR, the 12,000 lb M12 up to 8,000 lb and the 16,500 lb 16.5ti up to 11,000 lb.
You can skip a mounted winch if your truck stays on pavement and maintained roads. A winch adds weight and cost at the front of the truck and needs a solid anchor to pull against. If you only move the occasional heavy load, the portable Drill Winch is a lower-priced way to get a pull with nothing to install.
Portable option
Warn Drill Winch, 750 lb Portable Winch with 40' of 5/32" Steel Rope (101570)
From $239.99 · 750 lb rated, 40' of steel rope, runs from your own drill. Rig it with the front and rear hooks.
The Drill Winch averages 4.8 stars across 35 reviews. It has no motor of its own, so how well it pulls depends on the drill you fit. One of its two three-star reviews says:
“Not as strong as I thought it would be”
Warn Drill Winch, 750 lb Portable Winch with 40' of 5/32" Steel Rope (101570) owner · 3 out of 5 stars
Frequently asked questions
How big of a winch should I put on my truck?
Take your truck's gross vehicle weight rating (GVWR) and multiply it by 1.5. Warn says the result is your minimum capacity. A 10,000 lb winch covers a GVWR up to about 6,700 lb, a 12,000 lb winch about 8,000 lb and a 16,500 lb winch about 11,000 lb.
Is a hoist and winch the same thing?
No. A hoist lifts a load overhead. Warn's Basic Guide to Winching says never to use a winch as a hoist, to suspend a load or to lift or move people. A truck winch is built for pulling.
How do you install a winch on a truck?
Bolt it to a winch-ready bumper or winch plate, then run the power cables to the battery with red to positive and black to negative. Warn tells owners to read all the product literature first. The mounting and wiring section above has the detail.
What does it mean to winch out a vehicle?
It means pulling a stuck vehicle free with a winch. Put the clutch in freespool and pull the rope out to a solid anchor, or to the stuck vehicle, using the hook strap. Engage the clutch before any load goes on, then stand clear, keep others away and take up the line with the remote.
